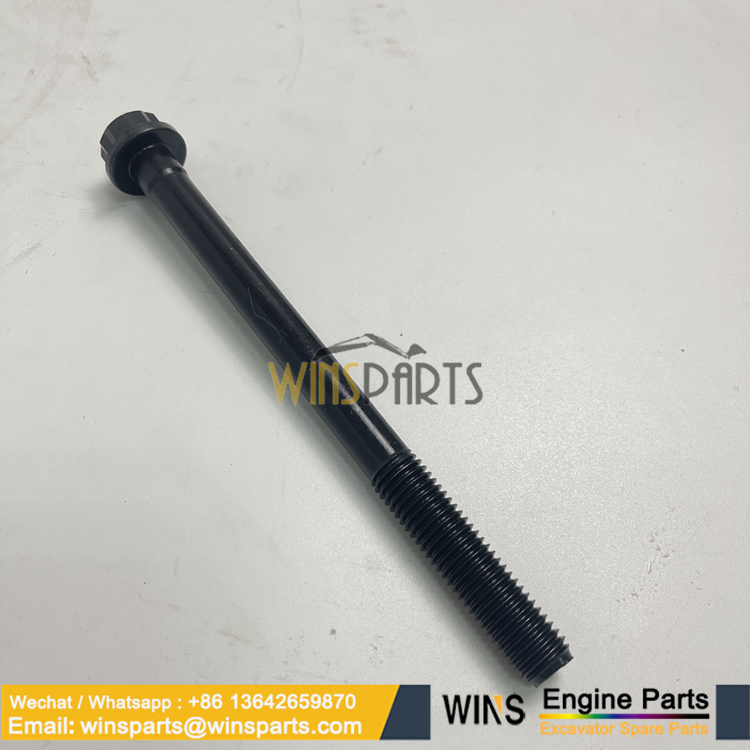

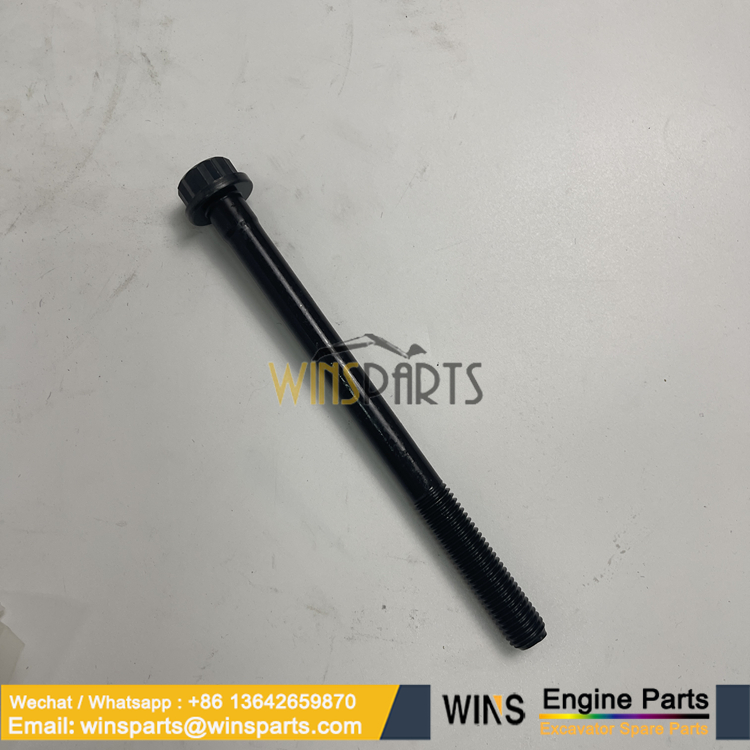

ME051515 VAME051515 Mitsubishi 6D22 Cylinder Head Bolt Kobelco
$1.00
ME051515 VAME051515 Mitsubishi 6D22-TC 6D22 6D22T Engine Cylinder Head Bolt Kobelco SK400LC SK300-2 SK480LC-6E Excavator Spare Parts
Number:ME051515 VAME051515
Type:Mitsubishi 6D22-TC 6D22 6D22T Engine Cylinder Head Bolt
Application:Kobelco SK400LC SK300-2 SK480LC-6E Excavator
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MITSUBISHI
Excavator Brand: New Holland/KOBELCO/HITACHI
. . 6D221CT-KS0B, M1 [1] CYLINDER HEAD
. . 6D221CT-KS01, M0 [1] CYLINDER HEAD
. . 6D221CT-KS09, M0 [1] CYLINDER HEAD
. . 6D221CT-KS04, M0 [1] CYLINDER HEAD
. . 6D221CT-KS03, M0 [1] CYLINDER HEAD
. . 6D222 ALL, M0 [1] CYLINDER HEAD
1. NSS [6] NOT SOLD SEPARAT CON HEAD, CYL, CF GN450-810A
2. Mitsubishi ME051300 [6] STD INLET Mitsubishi LVE KOB STD ENGINE INLET Mitsubishi LVE INSERT, SEAT Superseded by part
number: 132307A1
. . Mitsubishi ME051214 [1] SEMI SIZE
3. Mitsubishi ME051034 [6] STD INLET Mitsubishi LVE KOB STD ENGINE INLET Mitsubishi LVE INSERT, SEAT EXH, M0 ONLY
. . Mitsubishi ME051354 [6] STD INLET Mitsubishi LVE KOB STD ENGINE INLET Mitsubishi LVE INSERT, SEAT EXH, M1 ONLY
Superseded by part number: 132306A1
. . Mitsubishi ME051035 [6] SEMI SIZE, M0 ONLY
. . Mitsubishi ME051353 [1] SEMI SIZE, M1 ONLY
4. Mitsubishi ME051120 [1] Mitsubishi LVE GUIDE KOB INLET Superseded by part number: 132308A1
5. Mitsubishi ME051122 [6] Mitsubishi LVE GUIDE KOB EXH Superseded by part number: 132309A1
6. Mitsubishi MS666134 [6] CAP KOB SEALING 18
7. Mitsubishi MS666135 [12] CAP KOB SEALING 20 Superseded by part number: 132302A1
7A. Mitsubishi MH037762 [6] PLUG KOB Superseded by part number: 132297A1
8. Mitsubishi MS666137 [18] CAP KOB SEALING 25
9. Mitsubishi ME062523 [6] SUPPORT KOB Superseded by part number: Mitsubishi ME051127
Pos. Part No Qty Parts name Comments
10. Mitsubishi 3090113709 [6] NOZZLE KOB TUBE Superseded by part number: 132294A1
11. Mitsubishi MH035157 [6] O-RING KOB NOZZLE TUBE Superseded by part number: 132299A1
12. Mitsubishi MH002131 [24] STUD KOB Superseded by part number: 132296A1
14. Mitsubishi MF472585 [6] SPRING KOB PIN, 6X12
16. Mitsubishi ME051515 [36] SET SCREW KOB CYL, HEAD Superseded by part number: 132303A1
17. Mitsubishi ME051516 [6] SET SCREW KOB CYL Superseded by part number: 132305A1
20. Mitsubishi ME051714 [6] CYLINDER HEAD
GASKET
KOB Was Mitsubishi ME051480 Superseded by part number: 132295A1
. . 6D221CT-KS01 [1] CYLINDER BLOCK, M1
. . 6D22TC ALL [1] CYLINDER BLOCK, M0
. . 6D221CT-KS09 [1] CYLINDER BLOCK, M0
. . 6D221CT-KS04 [1] CYLINDER BLOCK, M0
. . 6D221CT-KS03 [1] CYLINDER BLOCK, M0
. . 6D221CZ-KS0A [1] CYLINDER BLOCK, M0
. . 6D221CZ-KS06 [1] CYLINDER BLOCK, M0
. . 60221CZ-KS09 [1] CYLINDER BLOCK, M0
. . 6D221CZ-KS07 [1] CYLINDER BLOCK, M0
. . 6D221CZ-KS04 [1] CYLINDER BLOCK, M0
1. NSS [1] NOT SOLD SEPARAT CON CRANKCASE, CF GN450-800A
2. NSS [1] NOT SOLD SEPARAT CON CAP, BRG FR, CF GN450-800A
3. NSS [1] NOT SOLD SEPARAT CON CAP,BRG, NO.2, CF GN450-800A
4. NSS [4] NOT SOLD SEPARAT CON CAP,BRG, MI, CF GN450-800A
5. NSS [1] NOT SOLD SEPARAT CON CAP,BRG, RE, CF GN450-800A
6. Mitsubishi ME061330 [14] SCREW KOB Superseded by part number: 132340A1
7. Mitsubishi ME051501 [6] LINER, ENGINE CYLIND KOB CYL, A SIZE, M0 ONLY, ME051500 Superseded by
part number: 132312A1
. . Mitsubishi ME051501 [6] LINER, ENGINE CYLIND KOB A SIZE, M1 ONLY, ME051500 Superseded by part
number: 132312A1
. . Mitsubishi ME051502 [1] LINER KOB B SIZE, M0 ONLY
. . Mitsubishi ME051503 [1] C SIZE, M0 ONLY
Pos. Part No Qty Parts name Comments
. . Mitsubishi ME058273 [1] LINER, CYL CHROME PLATING, A SIZE,
M1 ONLY, ME058272
. . Mitsubishi ME058274 [1] B SIZE, M1 ONLY
. . Mitsubishi ME058275 [1] C SIZE, M1 ONLY
8. Mitsubishi ME051375 [12] O-RING KOB (FOR M0,M1 ONLY) Superseded by part number:
Mitsubishi ME151038
9. Mitsubishi 3090722300 [6] SEAL KIT KOB RUBBER(FOR M0,M1 ONLY) Superseded by part
number: 132311A1
10. Mitsubishi 3110702401 [12] O-RING KOB (FOR M0,M1 ONLY) Superseded by part number:
3110702401
11. Mitsubishi MS666137 [1] CAP KOB CAP, SEARING(FOR M0,M1 ONLY)
12. Mitsubishi MH007009 [2] PIN KOB PIN, DOWEL 8(FOR M0,M1 ONLY)
13. Mitsubishi MH007011
[2] PIN KOB PIN, DOWEL 12(FOR M0,M1 ONLY) Superseded by
part number: 132324A1
15. Mitsubishi ME051187 [1] BUSHING KOB CAMSHAFT, NO.1(FOR M0,M1 ONLY)
16. Mitsubishi ME051188 [1] BUSHING KOB CAMSHAFT, NO .2(FOR M0,M1 ONLY)
17. Mitsubishi ME051189 [2] BUSHING KOB BUSHING, CAMSHAFT, NO.3, 4(FOR M0,M1 ONLY)
18. Mitsubishi ME051190 [2] BUSHING KOB BUSHING, CAMSHAFT, NO.5, 6(FOR M0,M1 ONLY)
19. Mitsubishi ME051191 [1] BUSHING KOB CAMSHAFT, NO. 7 (FOR M0,M1 ONLY)
20. Mitsubishi 3090715800 [7] SET OF SCREWS KOB SCREW, SET(FOR M0,M1 ONLY)
. . Mitsubishi MF660063 [7] GASKET KOB GASKET 10(FOR M0,M1 ONLY) Superseded by part
number: Mitsubishi F420210000
21. Mitsubishi ME031518 [6] Mitsubishi LVE CHECK(FOR M0,M1 ONLY) Mitsubishi LVE CHECK(FOR M0,M1 ONLY)
22. Mitsubishi ME051197 [6] JET KOB BODY, OIL (FOR M0,M1 ONLY)
23. Mitsubishi ME031086 [6] WASHER KOB LOCK(FOR M0,M1 ONLY)
24. Mitsubishi MH012037 [6] PIN KOB PIN, SPG, 5X10(FOR M0,M1 ONLY) Superseded by
part number: 132322A1
25. Mitsubishi MH037137 [2] PLUG KOB PLUG 20(FOR M0,M1 ONLY)
. . Mitsubishi MH035077 [2] GASKET KOB GASKET 20(FOR M0,M1 ONLY)
26. Mitsubishi 3090702800 [1] PLUG SM PLUG 10(FOR M0,M1 ONLY)
Pos. Part No Qty Parts name Comments
27. Mitsubishi ME031088 [2] PLUG KOB (FOR M0,M1 ONLY)
28. Mitsubishi MF665539 [1] CAP KOB CAP, SEALING 28(FOR M0,M1 ONLY) Superseded
by part number: 132331A1
29. Mitsubishi MF472405 [14] DOWEL KOB PIN, DOWEL 10(FOR M0,M1 ONLY) Superseded by
part number: 132323A1
30. Mitsubishi MF406288 [2] STUD SM STUD, 10X30(FOR M0,M1 ONLY)
31. Mitsubishi MF472406 [2] PIN KOB PIN, DOWEL 12(FOR M0,M1 ONLY)
32. Mitsubishi MF472404 [4] DOWEL KOB PIN, 8(FOR M0,M1 ONLY) Superseded by part
number: MF472404
