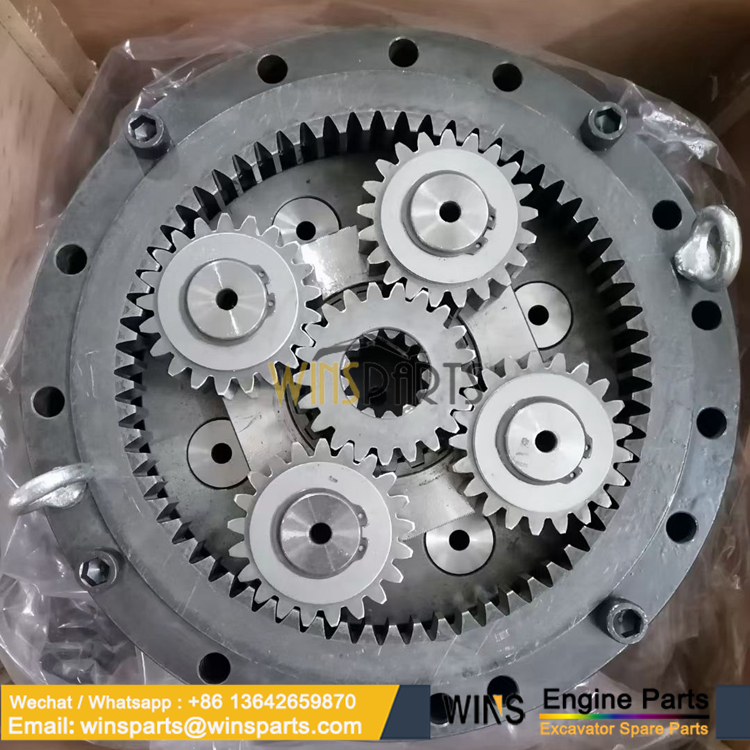

LS32W00012F1 LS32W00016F1 Swing Reduction Assembly Gearbox KOBELCO
$1.00
Number:LS32W00012F1 LS32W00016F1 LS15V00019F1 LS15V00024F1
Type:HYDRAULIC MOTOR Swing Reduction Assembly Gearbox
Application:KOBELCO SK460-8 SK485-8
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MITSUBISHI
Excavator Brand: New Holland/KOBELCO/HITACHI
LS32W00012F1 LS32W00016F1 LS15V00019F1 LS15V00024F1 HYDRAULIC MOTOR Swing Reduction Assembly Gearbox KOBELCO SK460-8 SK485-8 Excavator Spare Parts
Number:LS32W00012F1 LS32W00016F1 LS15V00019F1 LS15V00024F1
Type:HYDRAULIC MOTOR Swing Reduction Assembly Gearbox
Application:KOBELCO SK460-8 SK485-8
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MITSUBISHI
Excavator Brand: New Holland/KOBELCO/HITACHI
LS32W00012F1 [1] HYDRAULIC EQUIPMENT KOB Swing Reduction Assembly
LQ32W01038P1 [1] FINGER ASSY. KOB
LQ32W01027P1 [1] SHAFT, PLANETARY CAR KOB
LQ32W01011P1 [4] DRIVEN SPROCKET KOB
LQ32W01031F1 [1] SPIDER KOB
LQ32W01010P1 [1] GEAR KOB
LQ32W01009P1 [4] DRIVEN SPROCKET KOB
LQ32W01005P1 [1] RING GEAR KOB
2413J376 [1] DIFF. SPIDER KOB
2410T352 [4] ROLLER SHAFT KOB
2425Z540 [4] NEEDLE BEARING,40mm ID x 48mm OD x 25mm W KOB
2425Z541 [4] NEEDLE BEARING,40mm ID x 54mm OD x 50mm W KOB
LQ32W01016P1 [1] SPHERICAL BEARING KOB
LQ32W01015P1 [1] SPHERICAL BEARING KOB
LQ32W01035P1 [1] OIL SEAL KOB
NA [1] NOT SERVICED FOR Housing
LC32W01033P1 [1] OIL SEAL KOB
LQ32W01036P1 [1] SLEEVE KOB
LQ32W01037P1 [8] WASHER KOB
LQ32W01018P1 [8] WASHER KOB Thrust
ZR16X04000 [4] RING KOB Retaining — ID 37 x OD 40 x Th 1.8mm
ZR16X10000 [1] RING KOB Retaining — ID 94.50 x OD 119 x Th 3.0mm
ZP26D08032 [4] PIN KOB Roll — OD 08 x 32mm Long
ZS23C14150 [16] SCREW,Hex Socket Head, M14 x 150mm KOB M14x2.0x150mm
PV02B01073DB [2] CAP KOB 18.4mm Plastic
LS15V00018F1 [1] MOTOR KOB Assembly, Left Hydraulic, See Figure 08-10
LS32W00012F1 [1] HYDRAULIC EQUIPMENT KOB Reduction Assembly, See Figure 08-13
ZX32M08054 [1] HOSE SM 540 mm Long (21-1/4 in) Superseded by part number: ZX32M08055
ZH22Z08000 [1] HYD CONNECTOR KOB 1/2″PTx1/2″PFx48mm Long
2444Z2728D3 [1] PLUG KOB 1/2″PFx31mm Long (No O-Ring supplied)
ZG91U02000 [1] LUBE NIPPLE KOB 90° x 1/8″ PT
2444Z3305 [1] BREATHER KOB 1/8″PT
LS15V00019F1 [1] MOTOR KOB Assembly, Right Hydraulic, See Figure 08-10
LS32W00012F1 [1] HYDRAULIC EQUIPMENT KOB Reduction Assembly, See Figure 08-13
