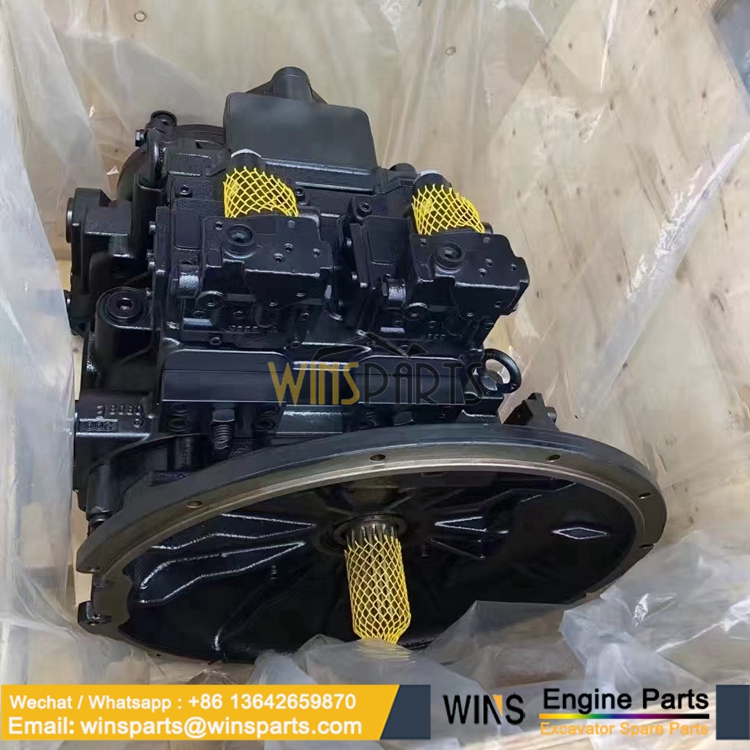

LS10V00017F1 1LS10V00016F1 LS10V00017F2 HYDRAULIC PUMP Assembly KOBELCO SK485-8 SK485-9 SK485LC-9 Excavator Spare Parts
Number :LS10V00017F1 LS10V00017F2Type :HYDRAULIC PUMP Assembly KOBELCOUtend :KOBELCO SK485-8 SK485-9 SK485LC-9Place of Origin :China/JapanPacking : Fumigate Seaworthy PackingEngine Brand : ISUZU/HINO/MISTUBISHIExcavator Brand : New.Holland/KOBELCO/HITACHI

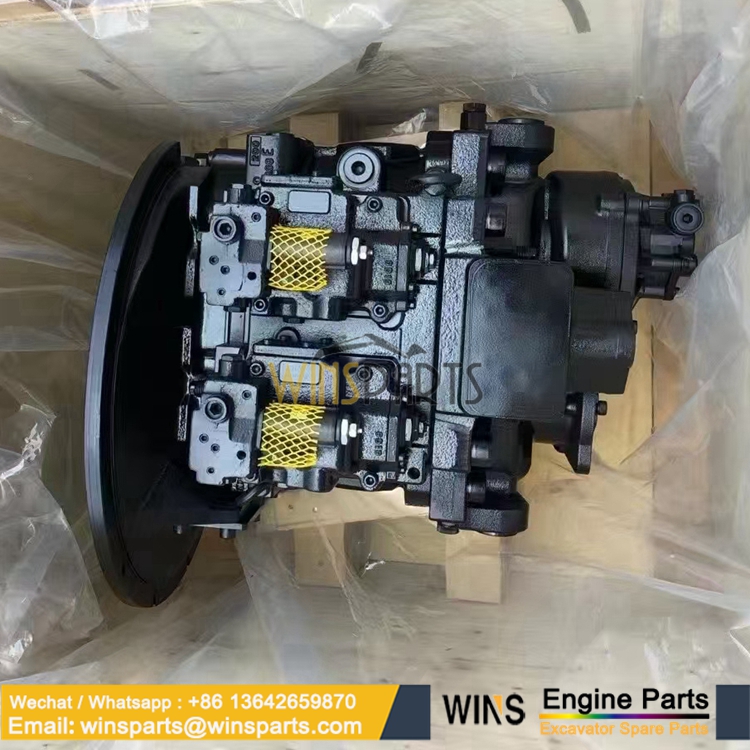

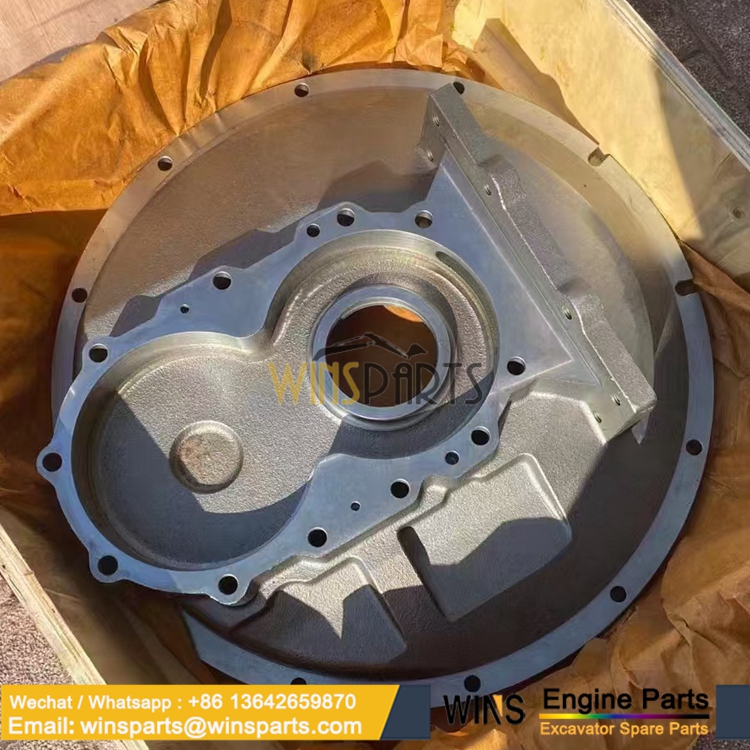

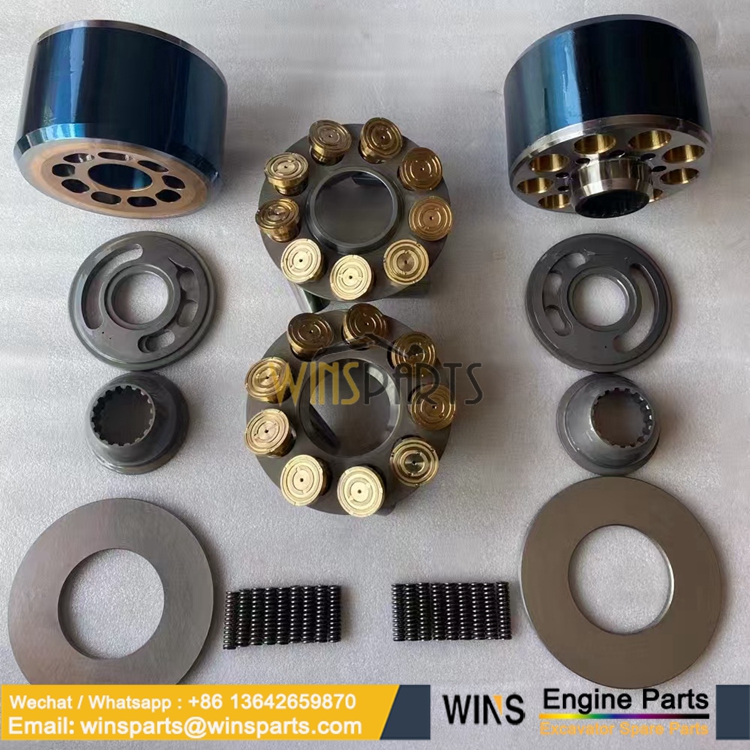

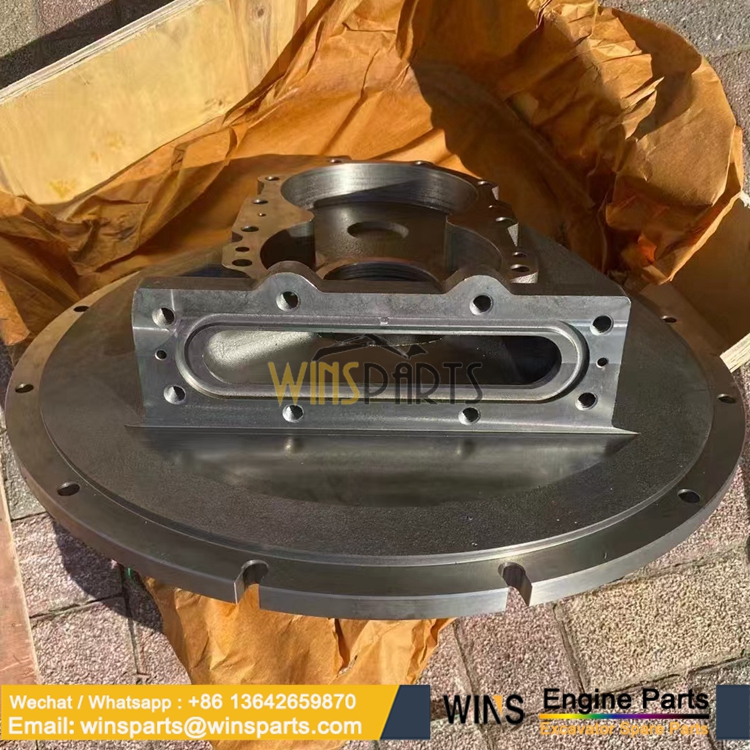

Handok Hydraulic K5V200 K5V212 K5V200DT K5V212DPH PUMP PARTS LS10V00017F1 LS10V00017F2 KOBELCO HYDRAULIC PUMP Assembly LS10V00017F1 LS10V00023F1 K5V160 K5V200 K5V212 Main Hydraulic Pump BOX CASE LS10V00017R100 LS10V00017R200 LS10V00017R300 LS10V00017R400 2437U219S41 LS10V00006R500 KOBELCO Repair KIT Kit LS10V00017S171 1LS10V00016F1 BOX CASE Main Hydraulic Pump LS10V00017F1 Kobelco SK485-8 SK485-9 SK485LC-9 LS10V00023F1 1LS10V00016F1 LS30P00013F1 LS30P00012F1 KOBELCO HYDRAULIC PUMP Assembly (1)
1LS10V00016F1 PUMP Hydraulic Pump Assembly
1LS10V00016F1RREMAN-HYD PUMP For SK485-8 Acera Mark 8, For N.A. Only
LS10V00016F1CCORE-HYDRAULIC PUMP Return Number, N.A. Only
11LS10V00017F1HYDRAULIC PUMP Hydraulic Pump — See Figure 08-32-00
22LS10V01006F1SPEED GOVERNOR Regulator — See Figure 08-33
32YN35V00052F1VALVE Solenoid — See Figure 08-34
41LS10V00018F1GEAR Gear Pump — See Figure 08-35
51LS10V00016S263COVER Cover
68ZS23C12020SCREW M12x1.75x20mm
LS10V00017F1 [1] HYDRAULIC PUMP SM Hydraulic Pump Assembly, Page 1 of 2 Superseded by part
number: LS10V00014F2
1. LS10V00017S111
[1] SHAFT SM Shaft
2. LS10V00017S113 [1] SHAFT SM Shaft
3. LS10V00006S123 [1] ROLLER BEARING KOB Bearing, Roller
4. LS10V00017S123 [1] BEARING SM Bearing
5. LS10V00006S124 [2] BEARING SM Bearing
6. LS10V00017S125 [1] RING SM Ring
7. LS10V00006S126 [2] SPACER SM Spacer
8. LS10V00006S127 [1] SPACER SM Spacer
9. LS10V00006S128 [3] SPACER KOB Spacer
10. LS10V00006S129 [2] SPACER SM Spacer
Pos. Part No Qty Parts name Comments
11. LS10V00017S130 [1] IMPELLER SM Impeller
18. LS10V00017S171 [1] BOX SM Case
19. LS10V00017S191 [1] GEAR SM Gear
20. LS10V00017S192 [1] GEAR SM Gear
25. LS10V00017S261 [1] COVER SM Cover
26. YN10V00011S316 [1] COVER KOB
28. LS10V00017S312 [1] COVER SM Cover
29. NA [1] NOT SERVICED FOR Plate
30. NA [1] NOT SERVICED FOR Plate
33. ZS23C12055 [11] SCREW,Hex Socket Head, KOB M12x1.75x55mm
36. LS10V00006S411
[2] SCREW SM Cap Screw — M22
38. 2436R802S156 [2] PLUG KOB 1-1/4″
39. YW30V00001S157 [2] PLUG KOB 1/4″
41. YN30V00001S154 [3] PLUG KOB 3/4″
42. 2441U722S490 [20] PLUG KOB 1/16″ NPTF
57. YX10V00003S012 [1] O-RING KOB
59. YT10V00003S710 [2] O-RING KOB
60. YN10V01006S013 [2] O-RING KOB
61. YN10V00020S015 [3] O-RING KOB
62. LS10V00017S729 [2] O-RING SM O-Ring
63. YW10V00003S732 [2] O-RING KOB
65. LS10V00017S733 [1] O-RING SM O-Ring
66. LS10V00006S762 [2] O-RING SM Packing
Pos. Part No Qty Parts name Comments
67. LC10V00010S019 [2] OIL SEAL KOB
72. ZR16X04500 [1] RING KOB Retaining — ID 4558 x Th 1.8mm
73. ZR16X05000 [3] RING KOB Retaining — ID 5064 x Th 2.0mm
74. ZR16X06500 [2] SNAP RING KOB Retaining — ID 6581 x Th 2.5mm
75. ZR26X09500 [1] SNAP RING KOB Retaining — ID 9598.5 x Th 3.0mm
76. LS10V00006S828 [2] RING SM Ring
77. 2441U564S435 [1] RING SM Ring
80. 2441U723S885 [1] PIN KOB
82. LS10V00017S889 [4] PIN SM Pin
K. LS10V00017R200 [1] KIT SM Kit, Repair Contains Items 12 & 29
K. LS10V00017R300 [1] KIT SM Kit, Repair Contains Items 12 & 30
Ref Qty Part Number Description Indicators
1LS10V00017F1HYDRAULIC PUMP Hydraulic Pump Assembly
122NANOT SERVICED Block
1318NANOT SERVICED Piston
1418NANOT SERVICED Shoe
152LS10V00006S153PLATE Plate
162LS10V00002S156BUSHING
17182437U219S157SPRING
2122441U564S124PLATE
222NANOT SERVICED Plate
232NANOT SERVICED Bushing
242LS10V00006S251SUPPORT Support
261YN10V00011S316GUARD
318LS10V00017S405SCREW Cap Screw — M08
328ZS23C12035SCREW M12x1.75x35mm
342ZS23C10016SCREW M10x1.50x16mm
359LS10V00006S410SCREW Cap Screw — M22
371LS10V00006S412SCREW Cap Screw — M22
402LS10V00017S468HYD CONNECTOR Connector — M18x1.5mm
413YN30V00001S154PLUG 3/4″
42202441U722S490PLUG 1/16″ NPTF
43122436U1165S152PLUG 1/8″
444YZ10V00002S491SCREW Cap Screw — 1/16″ NPTF
452ZE82T04000PLUG 1/4″ PT
462NANOT SERVICED Pin — M30x2mm
472LS10V00006S532PISTON Piston — M30x2mm
4822437U214S534STOP
492LS10V00006S535RETAINER Stopper
502LS10V00006S536COVER Cover
512NANOT SERVICED Seat
522NANOT SERVICED Stop
532NANOT SERVICED Ball
542NANOT SERVICED Pin
5522437U214S702GASKET
561YX10V00003S011O-RING
589YX10V00003S015O-RING
592YT10V00003S710O-RING
602YN10V01006S013O-RING
613YN10V00020S015O-RING
6422437U214S732GASKET
662LS10V00006S762O-RING Packing
6822437U471S789BACK-UP RING
6922437U471S792BACK-UP RING
702ZN18C20012NUT M20x2.5mm
712LS10V00006S807NUT Nut — M20x2.5mm
7822441U474S888PIN
794ZP26D06014PIN Roll — OD 06 x 14mm Long
812YN10V00003S888PIN
824LS10V00017S889PIN Pin
8322441U413S902BOLT
842LS10V00017S953SCREW Setscrew
852YZ10V00002S954SCREW Setscrew
861YB15V00003S390PLATE Plate
8722437U407S983RIVET
K1LS10V00017R100KIT Kit, Repair Contains Items 13 & 14
K1LS10V00017R200KIT Kit, Repair Contains Items 12 & 29
K1LS10V00017R300KIT Kit, Repair Contains Items 12 & 30
K1LS10V00017R400KIT Kit, Repair Contains Items 22 & 23
K12437U219S41REPAIR KIT Contains Items 51, 52 & 53
K1LS10V00006R500REPAIR KIT Kit, Repair Contains Items 46 & 54
