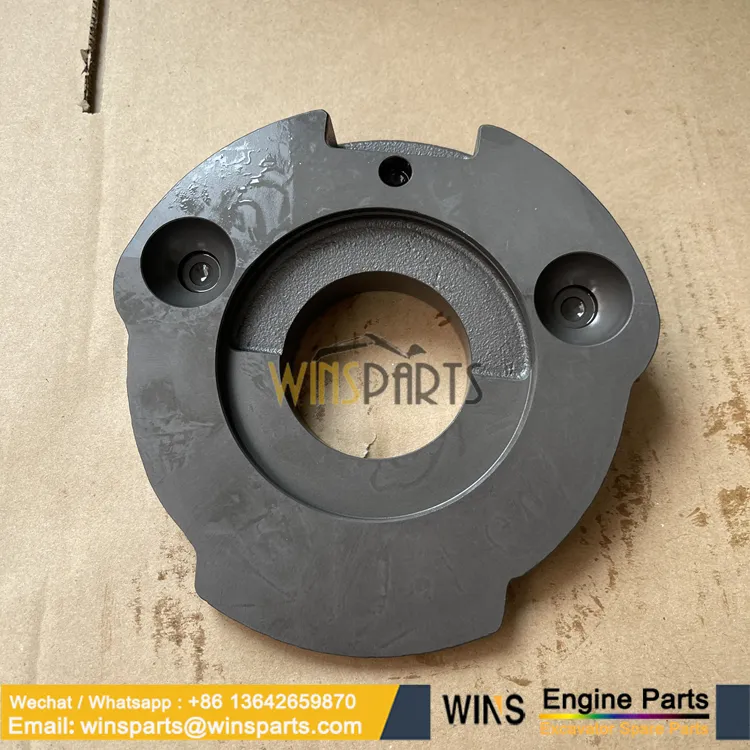

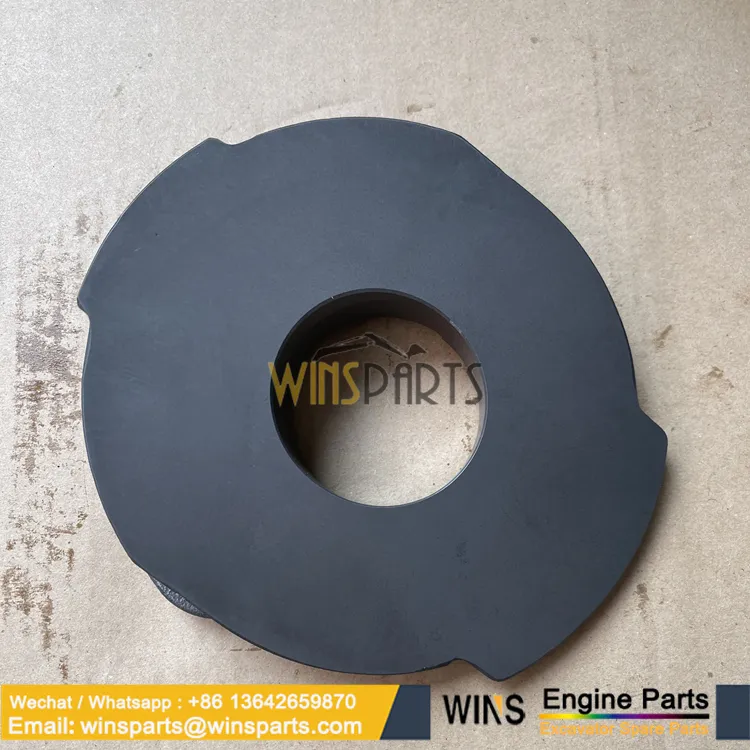

LQ15V00020S043 PLATE hydraulic final drive New Holland
$1.00

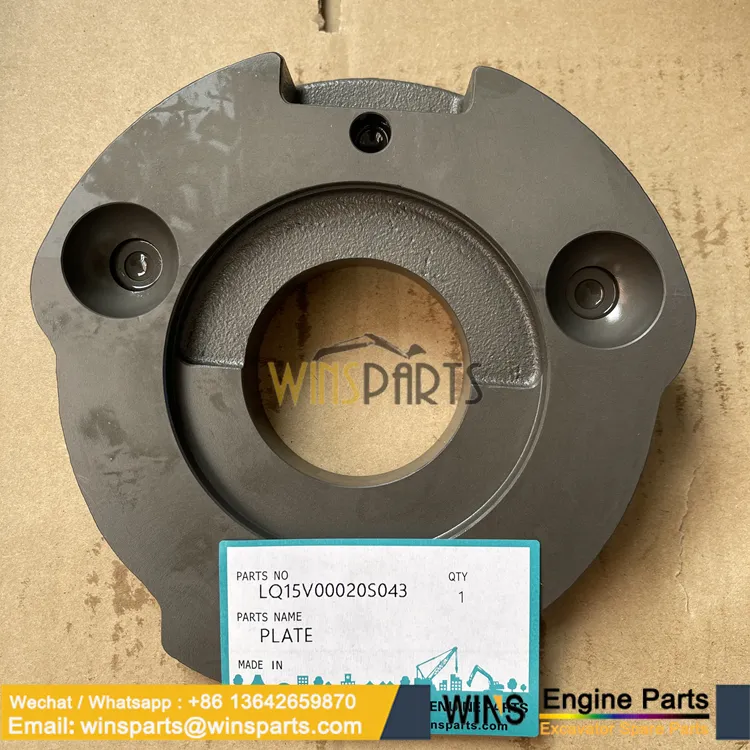

LQ15V00020S043 PLATE 2441U792S110 BALL hydraulic final drive KYB MAG170VP New Holland E235BSR E235SRLC E235SR E215B Excavator Spare Parts
Number:LQ15V00020S043 PLATE 2441U792S110 BALL
Type:hydraulic final drive KYB MAG170VP
Application: New Holland E235BSR E235SRLC E235SR E215B
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MITSUBISHI
Excavator Brand: New Holland/KOBELCO/HITACHI
. . LQ15V00020F1 New Holland HYDRAULIC MOTOR SM Assembly, Propel — Figure 2 of 2 Superseded by part
number:
1. NA New Holland NOT SERVICED FOR Flange
7. ZD12P02100 [2] O-RING,2.4mm Thk x 20.8mm ID, 90
Duro
KOB O-Ring — ID 20.80 ± 0.23 x OD 25mm
8. 2436U1027S203 [2] SEAT/SLOT KOB
9. LQ15V00020S009 [2] SPRING SM Spring
10. 2436U1027S205 [2] SEAT/SLOT KOB
12. ZD12G04500 [2] O-RING,44.40mm ID x 50.60mm OD
x 3.10mm
KOB ID 44.40 ± 0.41 x OD 50mm
13. ZS23C12040 [8] SCREW,Hex Socket Head, M12 x
40mm
KOB M12x1.75x40mm
14. 2436U281S37 [2] BALL KOB
15. 2441U792S18 [2] SPRING SM
16. 2441U792S19 [2] PLUG SM
Pos. Part No Qty Parts name Comments
17. ZD12P00800 [2] O-RING,1.9mm Thk x 7.8mm ID, 90
Duro
KOB ID 07.80 ± 0.16 x OD 11mm
18. YN23V00003F1 [2] PRESSURE RELIEF VALVE KOB See Figure 8.043.01
22. LQ15V00007S027 New Holland SPRING KOB
23. 2441U792S141 New Holland PLUG KOB
24. ZD12P01800 [2] O-RING KOB ID 17.80 ± 0.21 x OD 22mm
25. LQ15V00007S030 New Holland GUIDE PIN KOB
26. LQ15V00007S031 New Holland PLUG KOB
30. ZD12P01100 [4] O-RING KOB
33. LQ15V00007S042 New Holland SHAFT KOB
38. YN15V00005S114 New Holland SNAP RING KOB
39. YN15V00005S115 New Holland SPRING SEAT KOB
40. YN15V00005S116 New Holland SPRING KOB Spring
41. YN15V00005S117 New Holland RING KOB
42. 2441U792S119 [3] PIN KOB
43. LQ15V00020S043 New Holland PLATE SM Plate
44. 2441U792S110 [2] BALL KOB
46. LQ15V00007S055 New Holland BALL BEARING KOB
47. LQ15V00007S056 New Holland BALL BEARING KOB
48. LQ15V00020S048 New Holland PIN SM Pin
49. ZS23C14035 [10] SCREW,Hex Socket Head, M14 x
35mm
KOB M14x2.0x35mm
50. LQ15V00020S050 New Holland SEAL SM Seal, Oil
51. LQ15V00020S051 [3] PLATE SM Disk plate Superseded by part number: LQ15V00031R940
52. 2441U983S126 [2] PLATE KOB
Pos. Part No Qty Parts name Comments
53. LQ15V00020S053 New Holland PISTON SM Brake Biston
54. 2441U984S42 New Holland O-RING KOB
55. 2441U983S130 New Holland O-RING KOB
56. 2441U792S130 [6] SPRING KOB
57. YN15V00005S128 [4] PIN KOB Pin
58. YN15V00005S139 [2] SPRING KOB
59. LQ15V00020S059 New Holland PLATE SM Valve plate
60. ZD12P01000 [4] O-RING KOB ID 09.80 ± 0.17 x OD 13mm
61. 2441U802S30 New Holland O-RING KOB
67. LQ15V00020S067 [2] SEAL SM Seal, Floating
68. LQ15V00007S077 [2] BEARING KOB
71. LQ15V00020S071 New Holland RUBBER RING SM Holder
72. LQ15V00007S081 [8] FRICTION WASHER KOB
73. LQ15V00007S082 [8] SCREW KOB
74. LQ15V00020S074 [4] PLATE SM Thrust Plate
75. LQ15V00007S084 [4] RACE KOB
76. LQ15V00020S076 [4] NEEDLE BEARING SM Needle Bearing
77. LQ15V00007S086 [4] DRIVEN GEAR KOB
78. LQ15V00020S078 [4] PLATE SM Thrust Plate
79. LQ15V00007S088 [4] SCREW KOB
80. LQ15V00020S080 New Holland GEAR SM Sun Gear
81. LQ15V00007S090 New Holland RING KOB
82. LQ15V00020S082 New Holland CARRIER SM Holder
Pos. Part No Qty Parts name Comments
83. LQ15V00007S092 [3] PLATE KOB
84. LQ15V00020S084 [3] RACE SM Inner Race
85. LQ15V00020S085 [3] NEEDLE BEARING SM Needle Bearing
86. LQ15V00020S086 [3] GEAR SM Gear
87. LQ15V00007S096 [3] PLATE KOB
88. LQ15V00020S088 New Holland PLATE SM Thrust
89. LQ15V00007S098 [3] SCREW KOB
90. LQ15V00020S090 New Holland GEAR SM Drive
92. LQ15V00007S101 New Holland COVER KOB
93. ZS28C10016 [16] SCREW,Hex Socket Head, M10 x
16mm
KOB M10x1.50x16mm
94. LQ15V00007S103 [3] PLUG KOB
95. ZD12P02400 [3] O-RING KOB ID 23.70 ± 0.24 x OD 30mm
96. LQ15V00007S105 [4] PIN KOB
K. LQ15V00020R100 New Holland KIT SM Kit Repair, Contains Items 7, 12, 17, 24, 30, 50, 54, 55, 60
& 61
K. LQ15V00020R200 New Holland KIT SM Repair, Contains Items 67 & 95 Superseded by part
number: LQ15V00031R200
K. LQ15V00020R300 New Holland KIT SM Kit Repair, Contains Items 1 & 45
K. LQ15V00020R400 New Holland KIT SM Kit Repair, Contains Items 2-7, 19-21 & 28-32
K. 2441U792S13 New Holland CAP KOB Kit Repair, Contains Items 11-17
K. LQ15V00020R600 LQ15V00020R60 New Holland BLOCK KOB Kit Repair, Contains Items 34-42
K. LQ15V00007R700 New Holland REPAIR KIT KOB Contains Items 70
K. LQ15V00007R800 New Holland REPAIR KIT KOB Contains Items 91
K. LQ15V00020R900 New Holland REDUCER KOB Kit Repair, Contains Items 67-78 & 79-96
