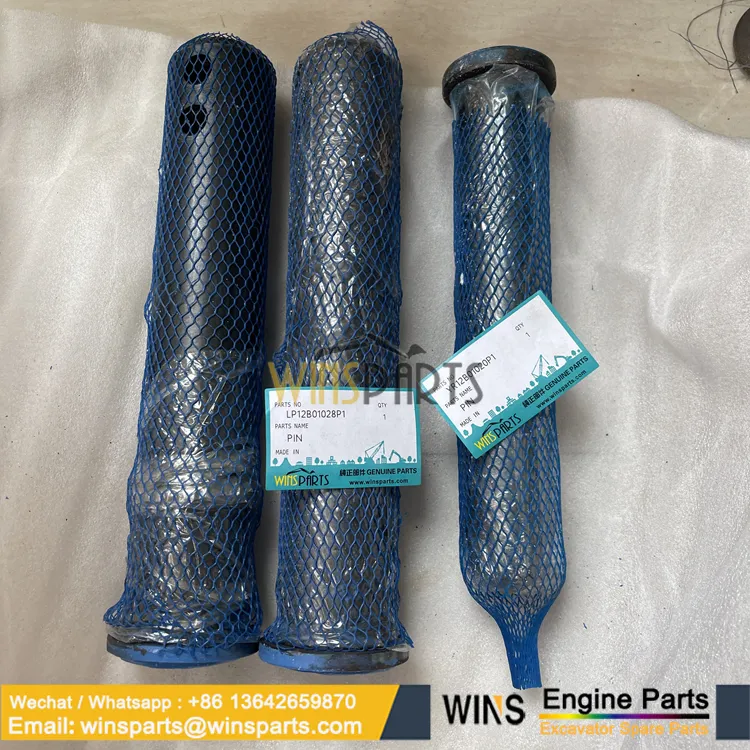

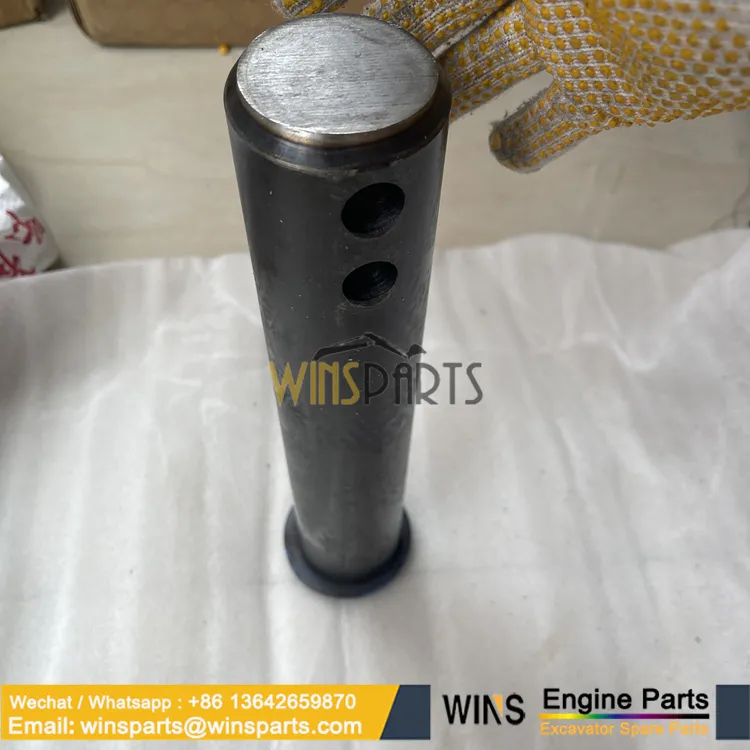

LP12B01028P1 YX12B01042P1 BUCKET PIN KOBELCO
$1.00
LP12B01028P1 YX12B01042P1 BUCKET PIN KOBELCO SK135SRL SK150LC 140SR-3 SK140SRLC 140SR ED150 Excavator Spare Parts
Number:LP12B01028P1 YX12B01042P1
Type: BUCKET PIN KOBELCO
Application:KOBELCO SK135SRL SK150LC 140SR-3 SK140SRLC 140SR ED150
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MITSUBISHI
Excavator Brand: New Holland/KOBELCO/HITACHI
. . NSS [1] NOT SOLD SEPARAT CON ARM ASSY, 3.0M
. . LP12B00015F1 [1] ARM YP002301, Serial Range: –
YP002334
. . LP12800045F1 [1] ARM, Start Serial: YP002335
A1. LP12B00023P1 [1] ARM YP002301, Serial Range: –
YP002334
A1. LP12B00046P1 [1] ARM, Start Serial: YP002335
A2. LP12B01030P1 [2] BUSHING KOB
A3. YW12B01042P1 [2] BUSHING KOB
A4. LP12B01032P1 [2] BUSHING KOB
A4. LP12B00011F2 [1] ARM INSTAL
B1. LP02B01012P1 [1] PIN YP002301 to YP002360
B1. LP02B01012P2 [1] PIN KOB , Start Serial: YP002361
Pos. Part No Qty Parts name Comments
B3. 2418T12645D2 [1] PLATE KOB 125 x 261 x Th 9.0mm
B4. ZS18C12020 [2] SCREW,Hex, M12 x 20KOB M12x1.75x20mm
B5. HS18C12125G1 [1] SCREW KOB
B6. ZN18C12010 [2] NUT KOB M12x1.75mm
B7. B16T0442D44 [4] SHIM,72mm130OD x
0.9Thk
KOB ID 72 x OD 130 x Th 0.9mm
B8. YN12B01009P1 [4] SHIM,3Thk KOB (3.0)
B9. B16T0442D57 [4] SHIM,72mm130OD x
0.5Thk
KOB ID 72 x OD 130 x Th 0.5mm
B10. LP12B01051P1 [1] PIN KOB
B11. B16T0442D1 [2] SHIM,130mm72ID x
1.2Thk
KOB ID 72 x OD 130 x Th 1.2mm
B12. B16T0442D2 [2] SHIM,130mm72ID x
1.6Thk
KOB ID 72 x OD 130 x Th 1.6mm
. . LP12B00017F1 [1] ARM GROUP
C1. LP12B00005F2 [1] LINK CONROD KOB Superseded by part number: YY12B01249F1
C1-
LP12B01031P1 [2] BUSHING KOB
C1-
LP12B01036P1 [2] BUSHING KOB
C1-
LP12B01053P1 [1] LINK, BUCKET
C2. YW12B01033P1 [1] LINK KOB Superseded by part number: YY12B01074P1
C3. YW12B01034P1 [1] LINK KOB
C4. LP12B01027P1 [2] PIN KOB Superseded by part number: YY12B01242P1

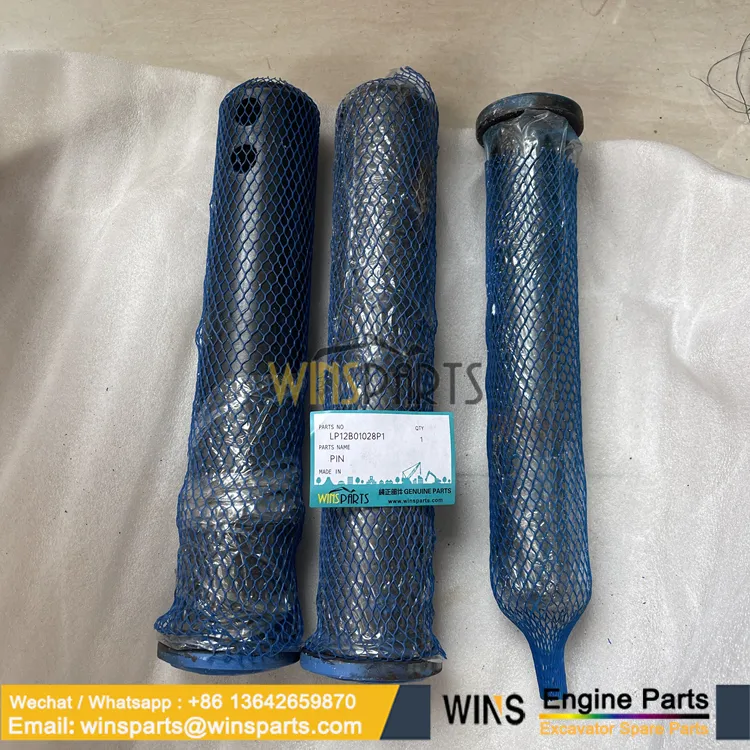

C5. LP12B01028P1 [1] PIN KOB Superseded by part number: YX12B01042P1
C6. LP12B01029P1 [1] PIN KOB Superseded by part number: YX12B01042P1
C7. HS18C14115G1 [2] SCREW KOB M14x2.0x115Superseded by part number:
HS18C14115G2
C8. ZN18C14011
[4] NUT KOB M14x2.0mm
Pos. Part No Qty Parts name Comments
C9. 2445R220D2 [4] SEAL,65mm80OD x
5Thk
KOB Dust — ID 65 x OD 80 x Th 5Superseded by part number:
84499663
C10. 2445R138D3 [6] SEAL,60mm75OD x
4Thk
KOB Dust — ID 60 x OD 75 x Th 4mm
C11. 2445R138D6 [2] SEAL,70mm85.3OD x
4Thk
KOB Seal, Dust — ID 70 x OD 85 x Th 4mm
C12. ZG91S02000 [7] LUBE NIPPLE,1/8″ NPT x 1/8″
NPT
KOB 1/8″ PT — Straight
C13. ZH32Z04002 [1] ELBOW KOB 90° — 1/4″ PF – 1/8″ PT
C14. ZH32Z04000 [1] ELBOW KOB 90° — (1/4″ PT – 1/4″ PT), (Incls. O-Ring ZD12P01100)
C15. YW12B01025P1 [6] SHIM,62mm100OD x
3Thk
KOB ID 62 x OD 100 x Th 3.0mm
C16. B16T0442D43 [6] SHIM,62mm100OD x
0.9Thk
KOB ID 62 x OD 100 x Th 0.9mm
C17. 2444R1117D150 [1] HOSE,6.4mm1500L KOB YP002301, Serial Range: -YP002334
C17. 2444R1117D165 [1] FLEXIBLE HOSE,6.40ID x
1650L
KOB , Start Serial: YP002335
C18. 2444R1117D200 [1] FLEXIBLE HOSE,6.40ID x
2000L
KOB
C19. 2432R225D4 [2] CLIP KOB Superseded by part number: ZC46X11009
C20. 2432R226D3 [3] CLIP KOB Clamp, Double — ID 10 x 48Long Superseded by part
number: ZC48X10009
C21. ZN18C06005 [5] NUT KOB M06x1.0mm
C22. ZW16X06000 [5] WASHER KOB ID 06 x OD 12.5 x Th 1.6Superseded by part number:
86588450
C23. ZW26X06000 [5] LOCK WASHER KOB ID 06 x OD 07 x Th 1.5mm
C24. B16T0442D19 [6] SHIM,62mm100OD x
1.6Thk
KOB ID 62 x OD 100 x Th 1.6mm
C25. B16T0442D27 [6] SHIM,62mm100OD x
1.2Thk
KOB ID 62 x OD 100 x Th 1.2mm
C26. B16T0442D56 [6] SHIM,62mm100OD x
0.5Thk
KOB ID 62 x OD 100 x Th 0.5mm
C27. YN12B01128P1 [2] Excavator Engine Spare Parts
