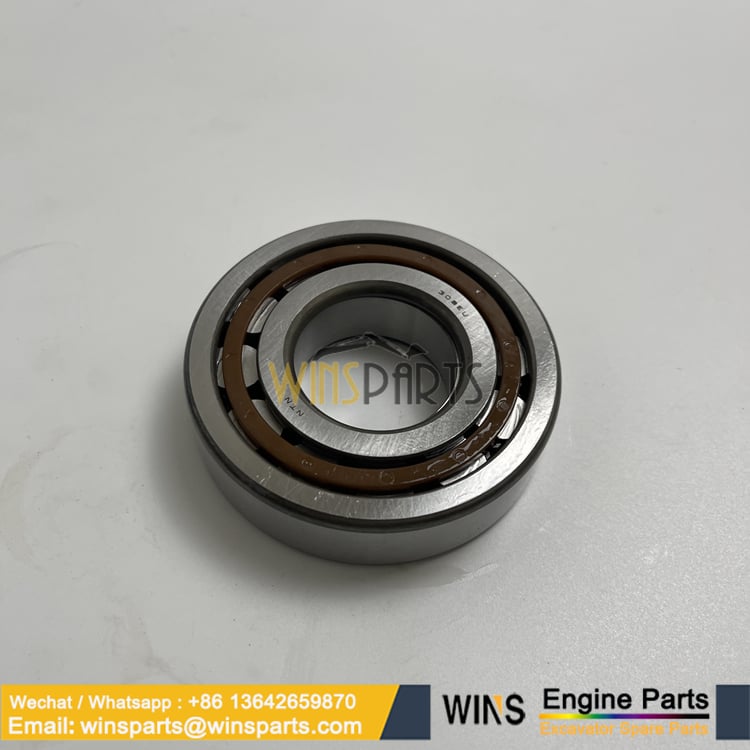

LC10V00002S123 2437U213S123 BEARING HYDRAULIC PUMP Kobelco
$1.00

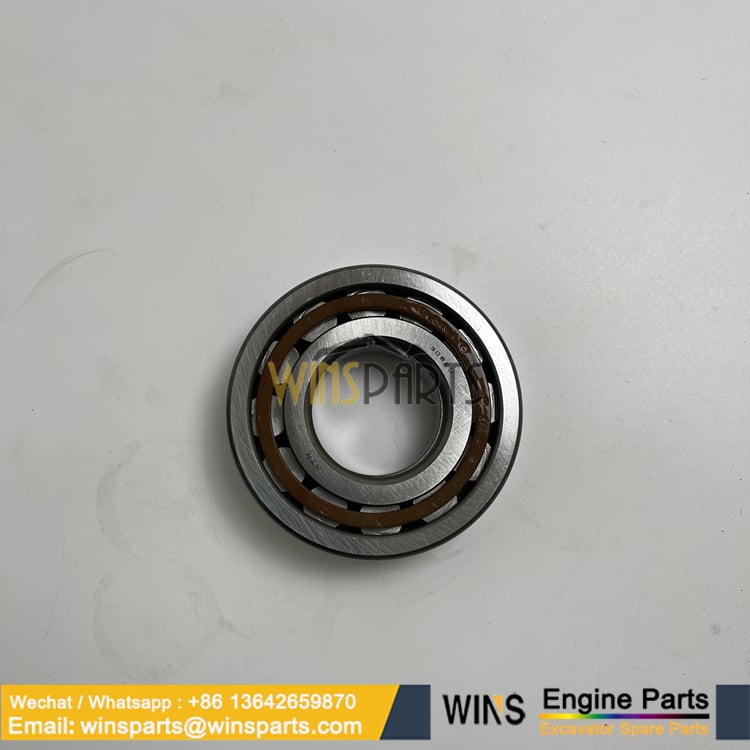

LC10V00002S123 2437U213S123 2441U436S123 BEARING HYDRAULIC PUMP Kobelco SK210-8 SK235SR-2 SK210-9 SK210D-8 SK210DLC-8 SK235SRLC-2 SK210LC-8 New Holland E235BSR E215B Excavator Spare Parts
Number: LC10V00002S123 2437U213S123 2441U436S123 2441U436S123DC 2441U723S123
Type:BEARING HYDRAULIC PUMP Kobelco
Application:Kobelco SK210-8 SK235SR-2 SK210-9 SK210D-8 SK210DLC-8 SK235SRLC-2 SK210LC-8 New Holland E235BSR E215B
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MITSUBISHI
Excavator Brand: New Holland/KOBELCO/HITACHI
100. YN10V00043R100 HYDRAULIC PUMP REPAIR KIT
111. YN10V00043S111 HYDRAULIC PUMP SHAFT
113. 87333059 HYDRAULIC PUMP SHAFT
116. 87333061 HYDRAULIC PUMP GEAR
123. 87333062 [2] ROLLER BEARING
124. 72963976 [2] NEEDLE BEARING
127. 72962215 [4] SPACER
153. 72962148 [2] PLATE
156. 72963962 [2] BUSHING
157. 72962149 [18] SPRING
200. YN10V00043R200 HYDRAULIC PUMP REPAIR KIT
211. 72962208 [2] PLATE
251. 87333063 [2] SUPPORT
261. 87333064 HYDRAULIC PUMP COVER
271. YN10V00043S271 [2] BOX
300. 72209803 HYDRAULIC PUMP KIT
312. LC10V00010S312 HYDRAULIC PUMP BLOCK
325. YN10V00043S325 HYDRAULIC PUMP COVER
400. 72209806 HYDRAULIC PUMP KIT
401. 87333069 [8] SCREW
406. 14306370 [8] SCREW
407. 14304870 [3] SCREW
466. 72209813 [2] PLUG
467. 2441U549S464 [2] PLUG
468. 72209878 [4] PLUG
490. 72209815 [32] PLUG
500. 72209807 HYDRAULIC PUMP KIT
532. 87333070 [2] PISTON
534. 87333071 [2] STOP
535. 72962150 [2] STOP
546. YN10V00043S546 [2] SPACER
702. 72215461 [2] SEAL
710. 72217471 [3] O-RING
717. 72217374 [4] GASKET
724. 72215395 [16] GASKET
725. 72215387 [9] GASKET
727. 72217475 [3] GASKET
728. 72217375 [4] GASKET
732. 72215463 [2] GASKET
774. 72217376 HYDRAULIC PUMP SEAL
789. 72964469 [2] RING
792. 72211285 [2] RING
806. 72964485 [2] NUT
808. ZN18C20012 [2] NUT
824. 72211282 [2] SNAP RING
885. 72962216 [2] PIN
886. 72958881 [4] PIN
901. 72958882 [2] BOLT
953. 72209801 [2] KIT
954. 72209802 [2] SCREW
. . YN10V00043F1 HYDRAULIC PUMP HYDRAULIC PUMP SM Assy
111. YN10V00043S111 HYDRAULIC PUMP SHAFT SM
113. YN10V00013S113 HYDRAULIC PUMP SHAFT KOB
116. YN10V00020S116 HYDRAULIC PUMP GEAR KOB
123. LC10V00002S123 [2] BEARING KOB Roller
124. YN10V00011S124 [2] NEEDLE BEARING KOB Needle
127. 2441U723S127 [4] SPACER KOB
141. NSS [2] NOT SOLD SEPARAT CON Block, Cylinder
151. NSS [18] NOT SOLD SEPARAT CON Piston
152. NSS [18] NOT SOLD SEPARAT CON Shoe
153. 2437U213S153 [2] PLATE KOB Superseded by part number: LC10V00010S153
156. YN10V00005S156 [2] BUSHING KOB
157. 2437U213S157 [18] SPRING KOB
211. 2441U242S211
[2] PLATE KOB Shoe
212. NSS [2] NOT SOLD SEPARAT CON Plate
214. NSS [2] NOT SOLD SEPARAT CON Bushing
251. 2437U213S251 [2] PLATE KOB Support
Pos. Part No Qty Parts name Comments
261. 2437U420S261 HYDRAULIC PUMP COVER KOB Seal
271. YN10V00043S271 [2] BOX SM Case
312. LC10V00010S312 HYDRAULIC PUMP BLOCK SM Valve
313. NSS HYDRAULIC PUMP NOT SOLD SEPARAT CON Plate, Valve
314. NSS HYDRAULIC PUMP NOT SOLD SEPARAT CON Plate, Valve
325. YN10V00043S325 HYDRAULIC PUMP COVER SM
401. 2437U213S401 [8] SCREW KOB Cap
406. ZS23C08020 [4] SCREW,Hex Socket Head, M8 x 20mm KOB Cap
407. ZS23C06055 [3] CAPSCREW,Hex Socket Head, M6 x 55mm KOB SCREW Cap
466. 2441U667S466 [2] PLUG KOB
467. 2441U549S464 [2] PLUG KOB
468. 2441U436S469 [4] PLUG KOB
490. 2441U722S490 [32] PLUG KOB
531. NSS [2] NOT SOLD SEPARAT CON Pin
532. 2437U213S532 [2] PISTON KOB
534. 2437U213S534 [2] STOP KOB Stopper
535. 2437U213S535 [2] STOP KOB Stopper
546. YN10V00043S546 [2] SPACER SM
548. NSS [2] NOT SOLD SEPARAT CON Pin, Feedback
702. YN10V00003S702 [2] O-RING KOB O-ring
710. YX10V00003S012 [2] O-RING KOB
717. YN10V00020S012 [4] O-RING,3.1mm Thk x 144.4mm ID, 70 Duro KOB
724. YX10V00003S015 [16] O-RING,1.9mm Thk x 8.8mm ID, 75 Duro KOB
725. YT10V00003S710 [9] O-RING KOB
Pos. Part No Qty Parts name Comments
727. YN10V01001S727 [3] O-RING KOB O-Ring
728. YN10V00020S015 [4] O-RING KOB
732. YT10V00003S708 [2] O-RING KOB
774. YN10V00032S775 HYDRAULIC PUMP OIL SEAL KOB Superseded by part number: EG10V00004S774
789. ZD85P01800 [2] RING KOB Back Up
792. ZD85G03500 [2] RING KOB Back Up
806. ZN18C16010 [2] NUT KOB
808. ZN18C20012 [2] NUT KOB
824. ZR16X04000 [2] RING KOB Retaining
885. 2441U723S885 [2] PIN KOB
886. ZP26D06014 [4] PIN KOB Spring
901. ZS91C01000 [2] BOLT KOB Eye
953. 2437U188S953 [2] CAP,M10 x 20mm KOB Setscrew
954. 2437U213S954 [2] SCREW KOB Setscrew
981. YB15V00003S390 HYDRAULIC PUMP PLATE KOB
983. 2437U407S983 [2] RIVET KOB Pin
. . YN10V00003S011
HYDRAULIC PUMP PISTON ASSY KOB Repair Kit Consists Of Ref. 151×9, 152×9
. . YN10V00043R100 HYDRAULIC PUMP REPAIR KIT KOB Repair Kit Consists Of Ref. 141×1, 313×1
. . YN10V00043R200 HYDRAULIC PUMP REPAIR KIT KOB Repair Kit Consists Of Ref. 141×1, 314×1
. . 2437U213S30 HYDRAULIC PUMP REPAIR KIT KOB Repair Kit Consists Of Ref. 212×1, 214×1
. . 2437U213S530 HYDRAULIC PUMP REPAIR KIT KOB Repair Kit Consists Of Ref. 531×1, 548×1 Excavator Engine Spare Parts
