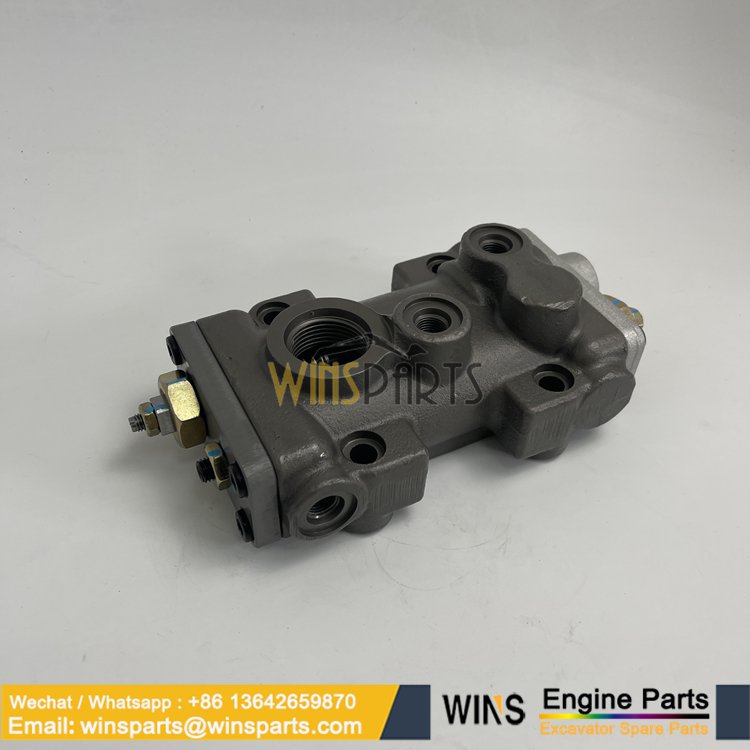

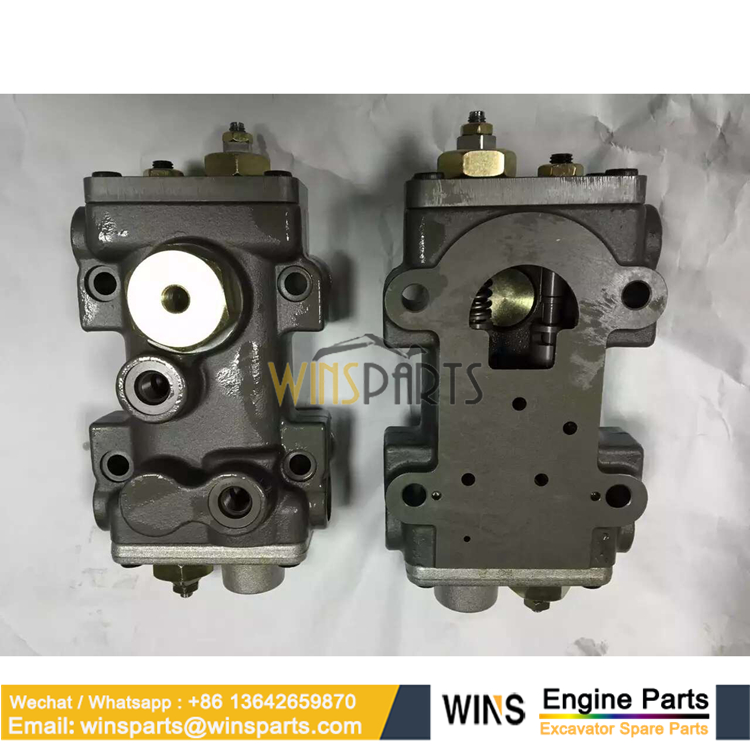

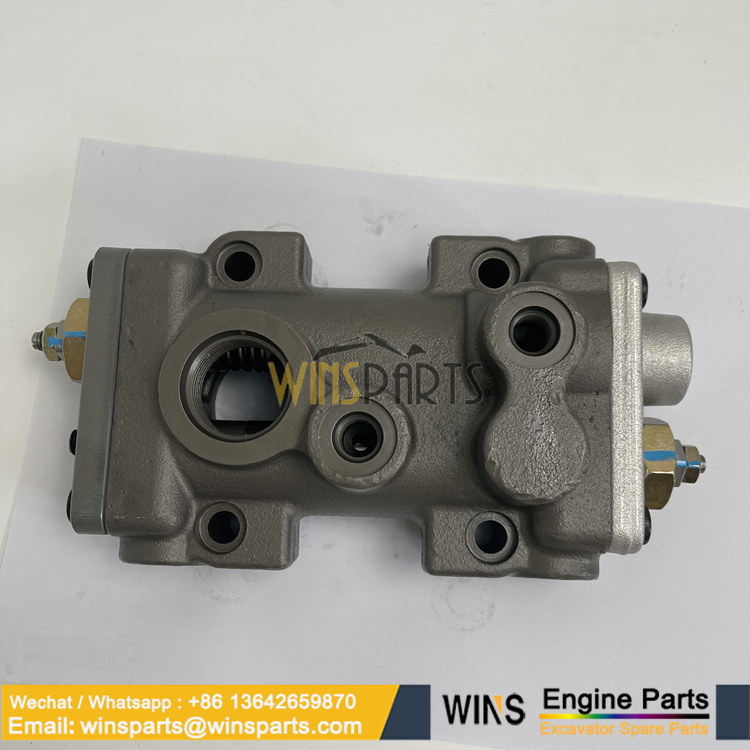

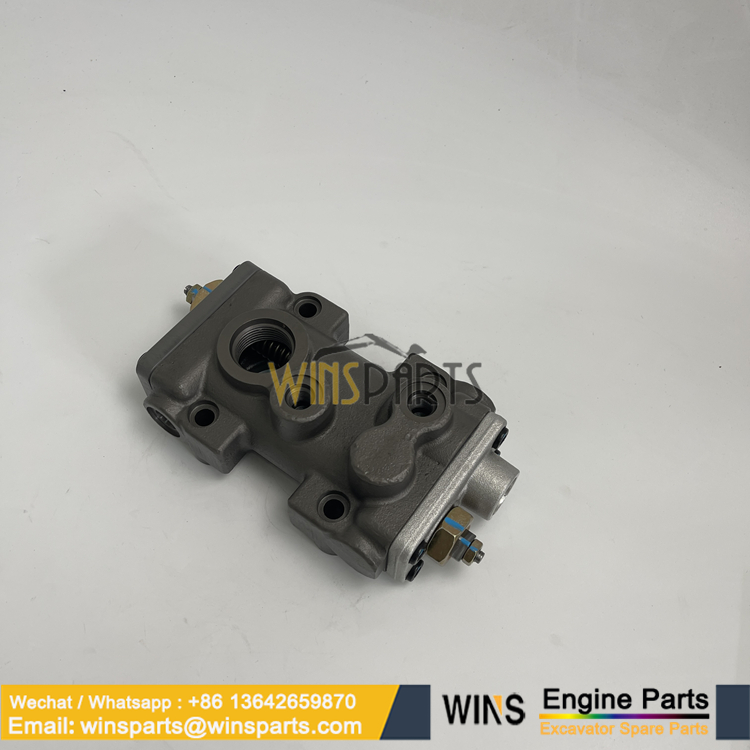

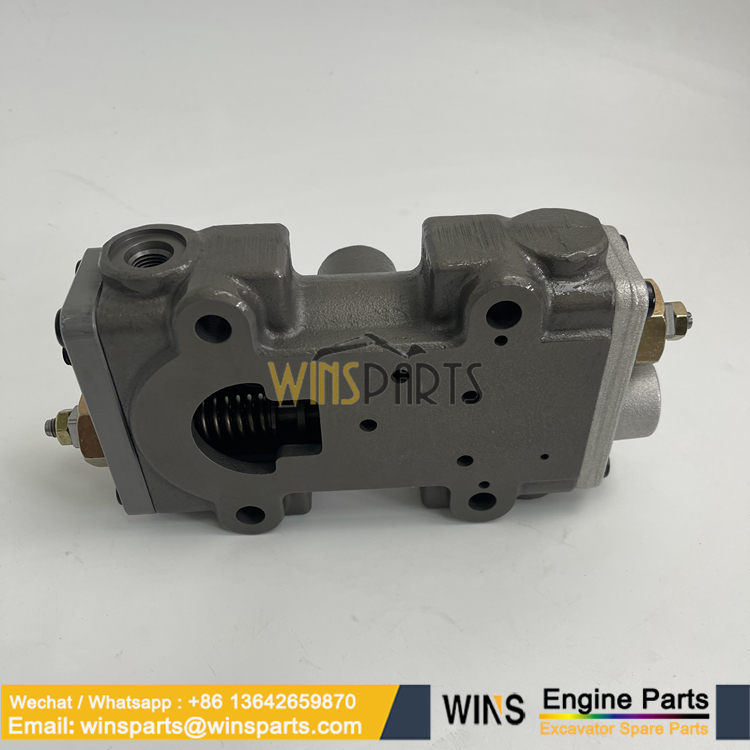

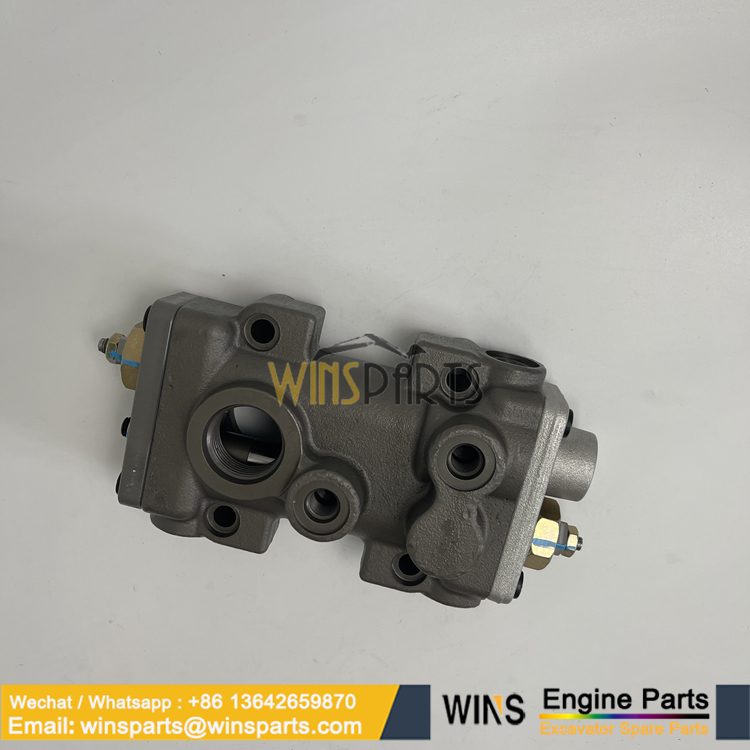

9136851 9122781 AT204770 HANDOK HPV145G REGULATOR Hitachi
$1.00

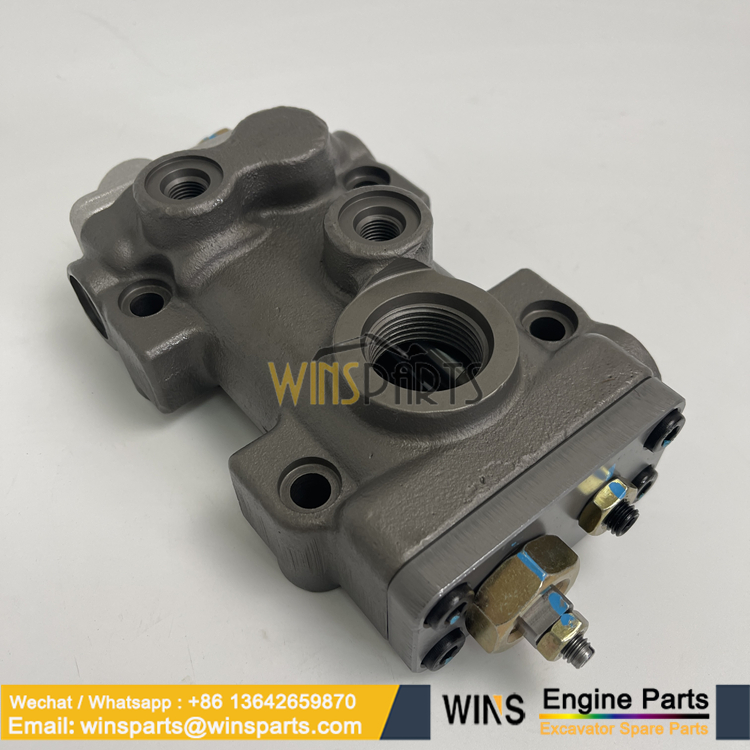

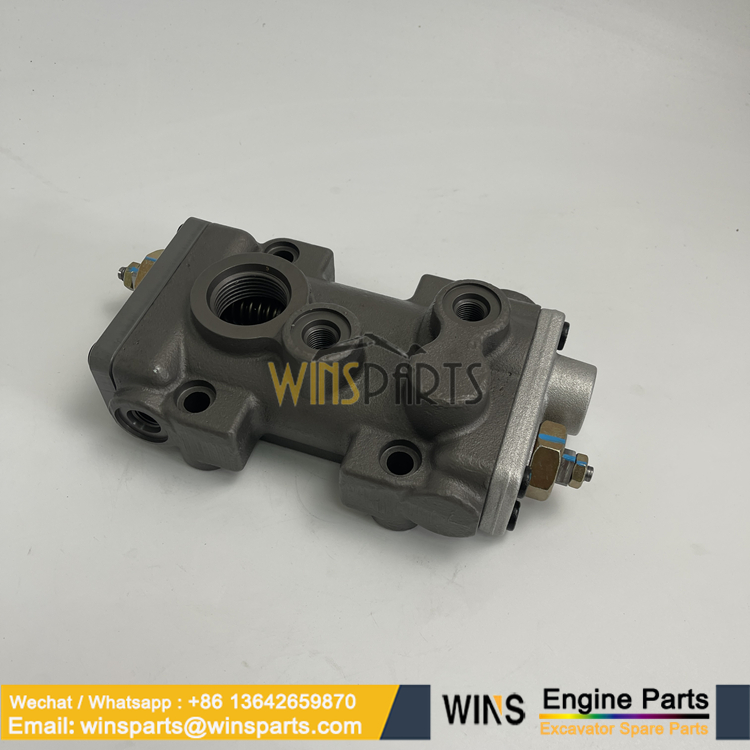

9136851 9122781 AT204770 HANDOK HPV145G PUMP REGULATOR Hitachi EX300-3 EX300-3C EX310H-3C ZX330-3G Excavator Spare Parts

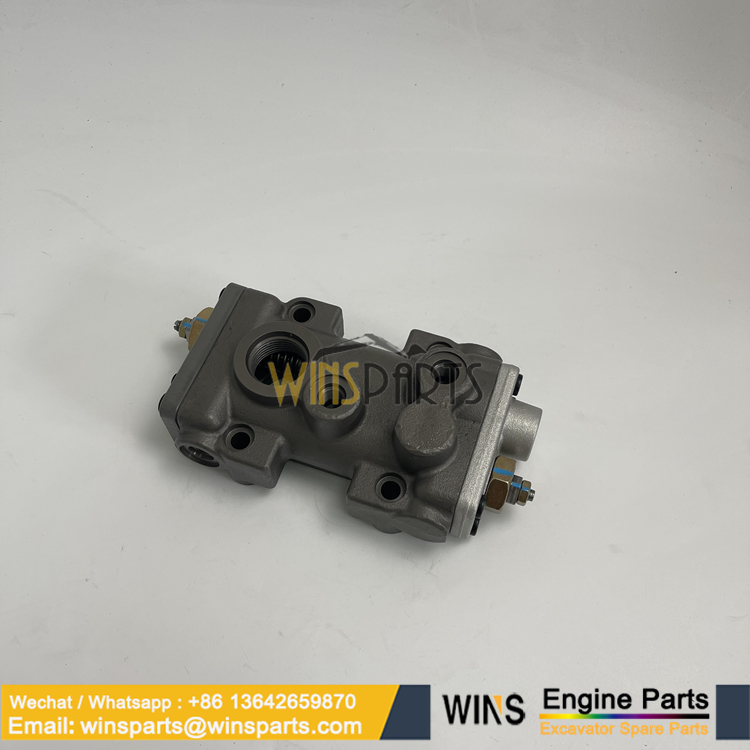

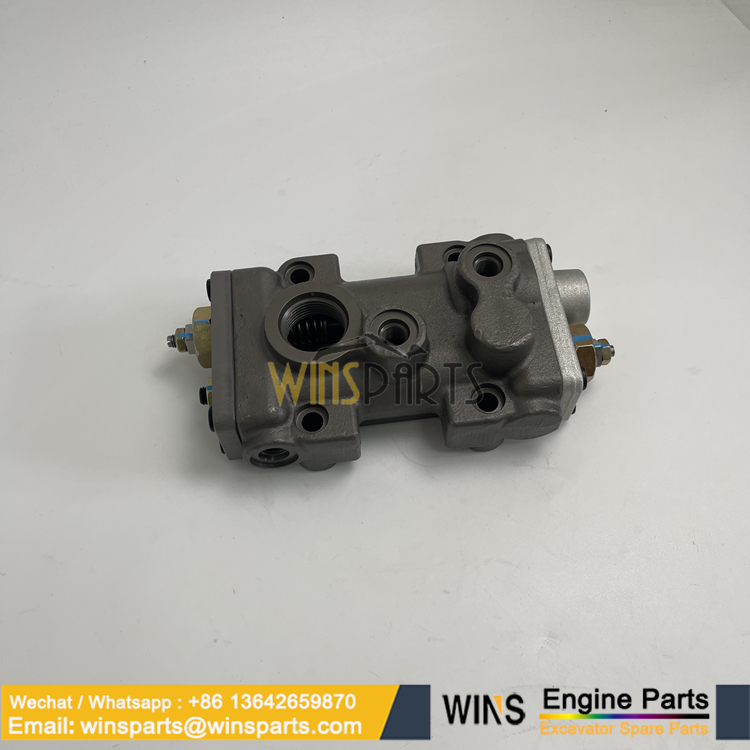

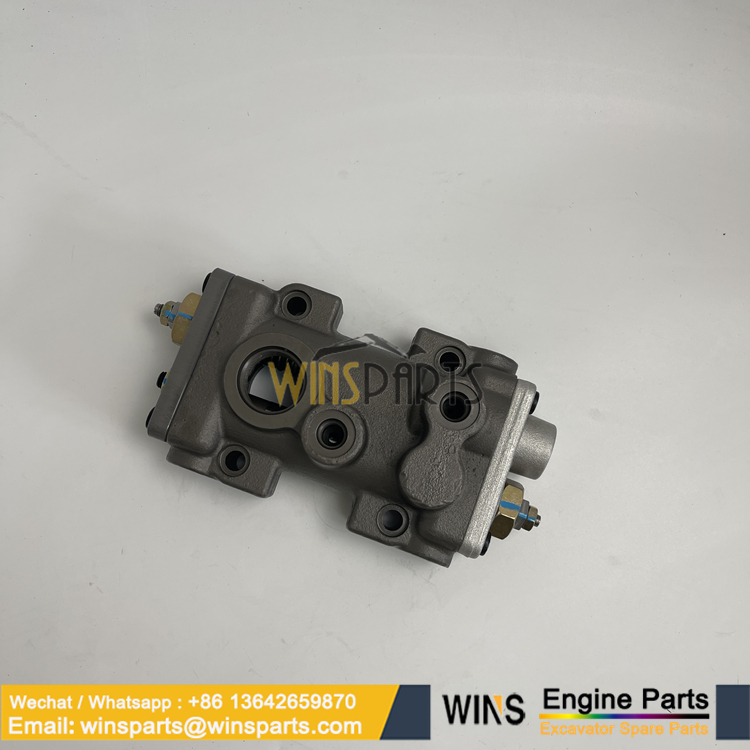

Number: HPV145G PUMP REGULATOR 9207292 9195243 9136851 9122781 AT204770 YB60000398 YB60000066 YB60000401 9253685
Type:PUMP REGULATOR
Utend:Hitachi EX300-3 EX300-3C EX310H-3C ZX330-3G
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: New.Holland/KOBELCO/HITACHI
0. AT201174 [1] Pump NLA, (ORDER AT217368)
0. AT217368 [1] Pump NLA, (ORDER 9127385EX)
0. 9127385 [1] Hydraulic Pump
0. 9127385EX [1] Hydraulic Pump
Reman
(REMAN FOR AT201174 OR 9127385) (SUB FOR AT217368)
0. AT204769 [1] Pump NLA, (ORDER AT217349)
0. AT217349 [1] Pump NLA, (ORDER 9136850EX)
0. 9136850 [1] Hydraulic Pump NLA, (ORDER 9136850EX)
0. 9136850EX [1] Hydraulic Pump
Reman
(REMAN FOR AT204769 OR 9136850) (SUB FOR AT217349)
3. 8068521 [1] Gasket (SUB FOR TH112240) (SUB FOR AT250202)
4A. 2038877 [1] Shaft (SUB FOR TH111112, AT219590 AND AT219647)
4B. 2038877 [1] Shaft (SUB FOR AT219590)
6. TH111233 [1] Tapered Roller
Bearing
7. JD37194 [1] Tapered Roller
Bearing
8. 3035965 [1] Spacer (SUB FOR TH111140)
9. 4191665 [1] Nut (SUB FOR TH111236)
13. 8051275 [7] Piston (SUB FOR AT130837) (SUB FOR AT203603)
Pos. Part No Qty Parts name Comments
14. 2022744 [1] Rotor (SUB FOR TH111111)
16A.
……..
[1] Shaft (8035539 NLA) (SUB 3081023 AND 2038877) (SUB FOR TH111473, AT219647
AND AT219590)
16B. 3081023 [1] Shaft (SUB FOR AT219647)
17. L38718 [1] Ball 6 MM (0.236″)
18. 4191667 [1] Snap Ring (SUB FOR TH111238)
19. 4194362 [1] Compression Spring (SUB FOR TH111266)
20. 4193062 [1] Snap Ring (SUB FOR TH111251)
21. 4198956 [1] Pin Fastener (SUB FOR T107766)
23. 3035966 [1] Cover (SUB FOR TH111141)
24. 4191664 [1] O-Ring (SUB FOR TH111235)
25. 40M7194 [1] Snap Ring
26. 4639126 [1] Seal (SUB FOR TH112094)
28. 9749142 [1] Valve (SUB FOR AT200967)
28. 9749142 [1] Valve (SUB FOR AT168530) (SUB FOR AT250274)
29. 4193132 [1] Bushing (SUB FOR TH111253)
31. 3039569 [1] Link (SUB FOR TH111194)
32. 9724756 [2] Lever (SUB FOR TH109873)
34. 4179179 [2] Dowel Pin (SUB FOR TH109874)
35. 4179177 [2] Dowel Pin (SUB FOR TH109875)
36. 4200227 [1] Dowel Pin (SUB FOR TH109878)
37. 4179176 [1] Dowel Pin (SUB FOR TH109876)
38. CH17951 [6] Ring
39.
[1] Cylinder Head (SUB 1011956) (AT200950 NLA)
Pos. Part No Qty Parts name Comments
39. 1011956 [1] Cylinder Head (SUB FOR AT164668)
41. 3106174 [1] Piston (SUB FOR 3036326) (ALSO ORDER 4641714 AND 4337812) SERVO
41. 4641714 [1] Pin Fastener
41. 4337812 [1] Set Screw
42. 4193245 [1] Pin Fastener (SUB FOR TH111254)
43. 4179838 [1] Set Screw (SUB FOR TH109881)
46. 34M7061 [2] Spring Pin 8 X 20 MM
48. CH11560 [10] Packing
49. 19M8341 [8] Screw M12 X 45
50. 12M7058 [8] Lock Washer 12 MM (SUB FOR 12M6138)
51. AT318013 [1] Drain Plug (SUB FOR 4093624) (SUB FOR TH102536)
51A. M800650 [1] Packing
52. 4204862 [1] Cover (SUB FOR TH111306)
53. 955020 [1] O-Ring (SUB FOR TH111628, 4006683)
59. 984623 [1] O-Ring 41.700 X 3.500 MM (1.642″ X 0.138″) (SUB FOR TH102592)
62. 4216295 [1] Stop (SUB FOR TH111927)
63. 19M8446 [8] Screw M8 X 20
64. 12M7056 [8] Lock Washer 8 MM (SUB FOR 12M7065)
66. 9127386 [1] Regulator (SUB FOR AT201175)
66. 9136851 [1] Regulator (SUB FOR AT204770)
69. CH17260 [1] Packing
70. 34M3845 [2] Spring Pin 4 X 10 MM
76. 37H99 [2] Screw 0.100″ X 1/4″
Pos. Part No Qty Parts name Comments
78. 4211432 [1] Plug (SUB FOR AT200989) (FOR USE WITH AT200950 HEAD)
79. AT318035 [1] O-Ring (SUB FOR 4506424, TH100055) (FOR USE WITH AT200950 HEAD)
81. 0311336 [1] Pipe Plug (SUB FOR TH109082)
82. CH11570 [1] O-Ring
