Product Function & Specs:

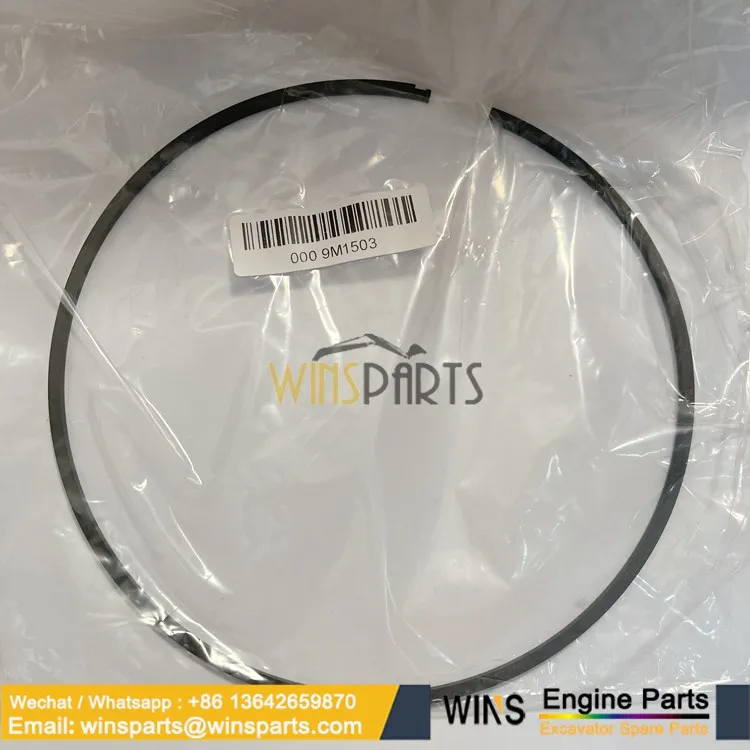

Heavy-duty, hooking-type metal seal ring designed specifically for planetary transmissions. Featuring interlocking, rectangular-shaped hook ends, this seal provides reliable performance in high-speed, aggressive-pressure environments. The joint design ensures zero pressure loss by securely overlapping inside the seal grooves.

Failure Symptoms:

• Internal transmission fluid bypass, leading to slipping clutches or delayed shifts.
• Loss of lubrication pressure in the planetary hub or torque converter lines.
• Physical wear, scouring, or broken joint hooks discovered during routine teardown inspects.

Quick Installation Notes:

• Carefully inspect the housing bore and shaft groove for debris or rough edges before fitting.
• Gently expand the ring to slide over the shaft, ensuring the interlocking hook joints align and snap together properly.
• Lubricate the metal ring and matching bore surfaces with clean transmission fluid before final assembly.
• Never force the mating parts together if you feel resistance; verify the ring is fully seated inside its groove first.

FAQ:

Q: Can this part replace OEM 9M-1503?

A: Yes, 100% interchangeable. It features the identical locking hook design and precision thickness matching the factory standards.

Q: Is this an OEM or aftermarket replacement?

A: This is a high-quality aftermarket replacement metal seal ring, engineered with robust metallurgy to withstand heavy friction and thermal cycles.

Q: What equipment does this seal fit?

A: It fits an extensive range of Cat heavy machinery, including wheel loaders (950, 966, 980), articulated dump trucks (740, D400E), dozers (D5H, D6N, D10T), and scrapers (627, 637). Contact us with your exact serial number to confirm fitment.

Q: Why does it use an interlocking hook joint?

A: The interlocking design allows the metal ring to compress for installation, then expand to create a tight, highly reliable bypass-free seal when subjected to hydraulic forces.

Q: Do you offer discounts for wholesale orders?

A: Yes. We support fleet owners, rebuild shops, and parts distributors with competitive bulk pricing and fast international shipping.

Why Sourcing From WinsParts?

We match your part numbers directly against official parts catalogs to ensure a 100% correct fit. Our large physical inventory allows us to ship orders fast, minimizing your machine downtime with dependable parts.
