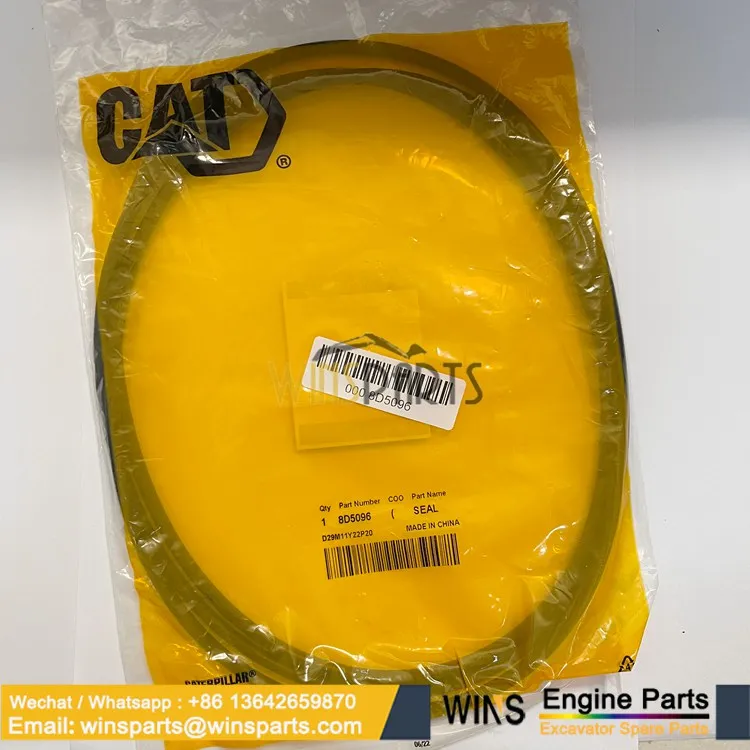

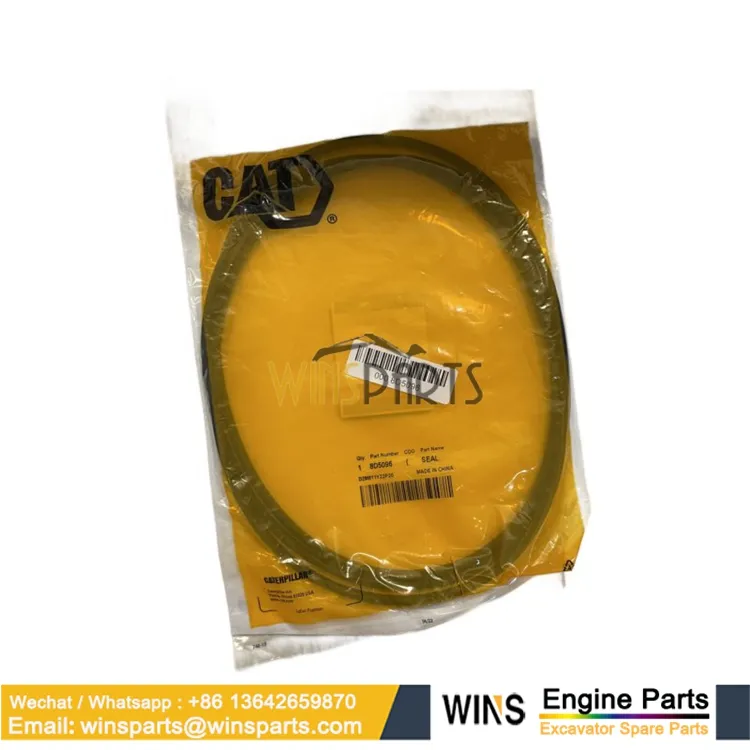

8D-5096 8D5096 Caterpillar TRANSMISSION O-Ring Seal
8D-5096 8D5096 Caterpillar TRANSMISSION O-Ring Seal For D5 D6 527 Parts
🔩 Product Specifications
- Part Number:8D-5096
- Interchange Number:8D5096 / CA8D5096 / 8D-5096
- Part Name:O-Ring Seal (Seal-O-Ring)
- Engine Model:Caterpillar C7.1 / 3408 Diesel Engine
- Application:Caterpillar 517 / 527 Track Skidder, D4H / D5H / D5M / D5N / D6M / D6N Track-Type Tractor, 621 / 623 / 627 Wheel Tractor-Scraper
- Condition: 100% Brand New Replacement
- Availability: In Stock & Ready to Ship Globally
Installation：
1. Thoroughly clean the sealing groove and surrounding mating surfaces to eliminate debris, rust, or old seal fragments.
2. Inspect the groove for any sharp scratches or burrs that could cut the new O-ring during assembly.
3. Lightly coat the new 8D-5096 O-ring with clean system hydraulic oil or transmission fluid before fitting.
4. Carefully stretch the seal uniformly over the component and seat it squarely into the groove without twisting or over-elongating the rubber.
5. Ensure the O-ring is fully embedded along the entire perimeter before joining the structural housings.
FAQ：
* **What material is this O-ring made from?** It is molded from high-grade Nitrile (NBR) Rubber with a 75 Duro hardness rating for reliable oil and wear resistance.
* **What are the precise technical dimensions?** It features a cross-section diameter of 5.33 mm and an inner diameter (ID) of 643.38 mm.
* **Can this seal be reused after opening the transmission casing?** No, it is best practice to always replace the 8D-5096 seal during service to guarantee a leak-free interface under high operational pressures.
Failure Symptoms：
* Transmission fluid or hydraulic oil weeping or puddling beneath the planetary gear housing or scraper joints.
* Noticeable loss of system operating pressure, leading to sluggish hydraulic responses or clutch slippage.
* Internal fluid bypass or aeration within the planetary transmission group due to seal flattening or hardening.
Maintenance：
* Visually check the casing joints for signs of fluid sweating during daily pre-operation inspections.
* Maintain clean transmission fluids and replace system filters on schedule to avoid abrasive particles scoring the seal face.
* Include this O-ring in standard preventative maintenance kits during scheduled major mid-life or full transmission overhauls.
