401-00356A 401-00356 2401-9225 113780 718424 717008 PLATE SWASH SUPPORT Doosan SOLAR
$1.00
401-00356A 401-00356 2401-9225 113780 718424 717008 PLATE SWASH SUPPORT KIT HYDRAULIC PUMP Doosan SOLAR 230LC-V 225LL 225LC-V 220LC-V 220LC-III 170-III Excavator Spare Parts
Number:401-00356A 401-00356 2401-9225 113780 718424 717008
Type:PLATE SWASH SUPPORT KIT HYDRAULIC PUMP
Application:Doosan SOLAR 230LC-V 225LL 225LC-V 220LC-V 220LC-III 170-III
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MITSUBISHI
Excavator Brand: New Holland/KOBELCO/HITACHI
-. 401-00280A [-] PUMP INSTALLATION
1. 401-00356A [1] MAIN PUMP
2. 229-00012A [1] COVER
3. 2414-9008A [1] COUPLING
3A. *NA00546 [1] HUB
3B. 2474-7009 [1] ELEMENT
3C. *NA00559 [4] . INSERT
3D. *NA00561 [4] . INSERT
3E. K9000422 [1] SOCKET BOLT SET(8EA)
3F. *NA00142 [2]
3G. *NA00781 [12]
3H. 2474-7009K [1] ELEMENT KIT
4. S2227966 [4] BOLT;SOCKET M20X2.5X65
5. S5111103 [4] WASHER;SPRING
6. S0512053 [12] BOLT
7. S5102603 [12] . WASHER

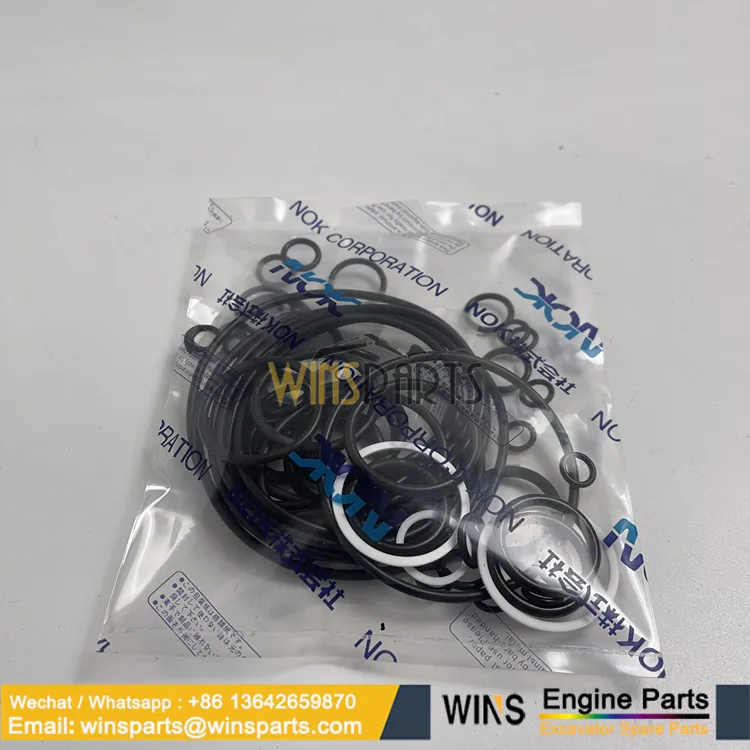

*. 2401-9223KT HYDRAULIC PUMP Doosan SOLAR SEAL KIT;MAIN PUMP+REG.

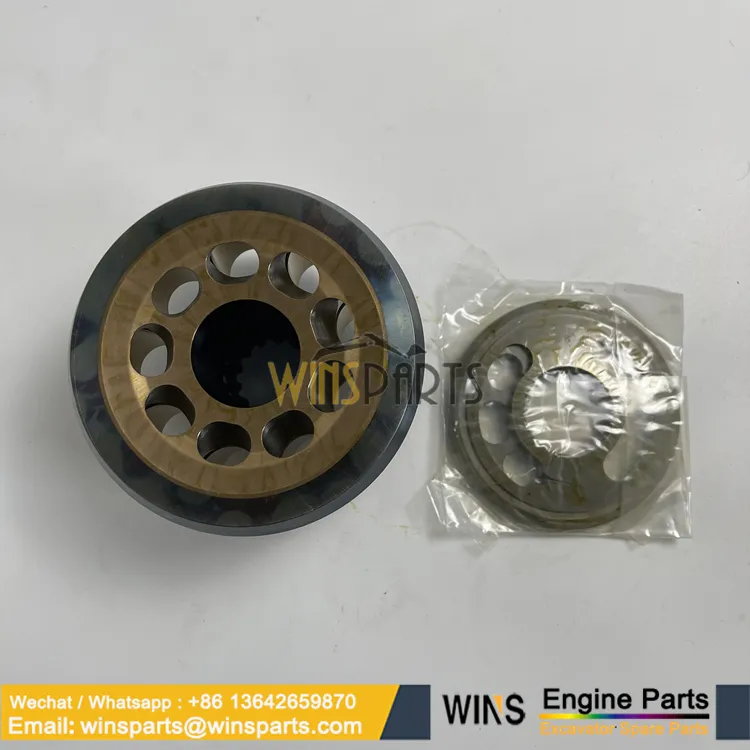

*. 720777-PH HYDRAULIC PUMP Doosan SOLAR CYLINDER ASS’Y(R)
*. 720778-PH HYDRAULIC PUMP Doosan SOLAR CYLINDER ASS’Y(L)

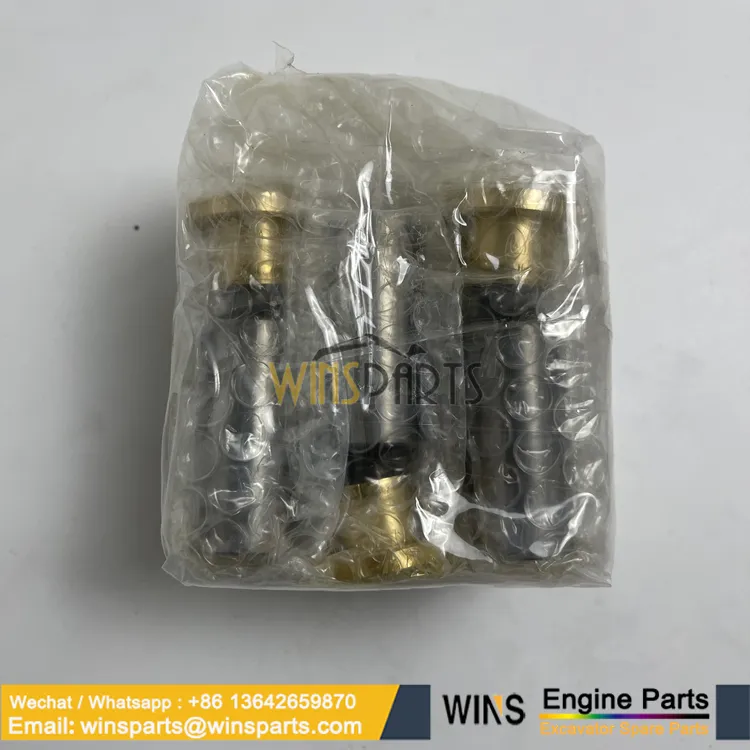

*. 704543A [2] PISTON & SHOE ASS’Y
*. 717008 [2] SWASH PLATE ASS’Y
*. 717005 [2] TILTING PIN ASS’Y
*. 704550A [2] CHECK 1 ASS’Y
*. 704544A [2] CHECK 2 ASS’Y
-. 401-00356A HYDRAULIC PUMP Doosan SOLAR MAIN PUMP

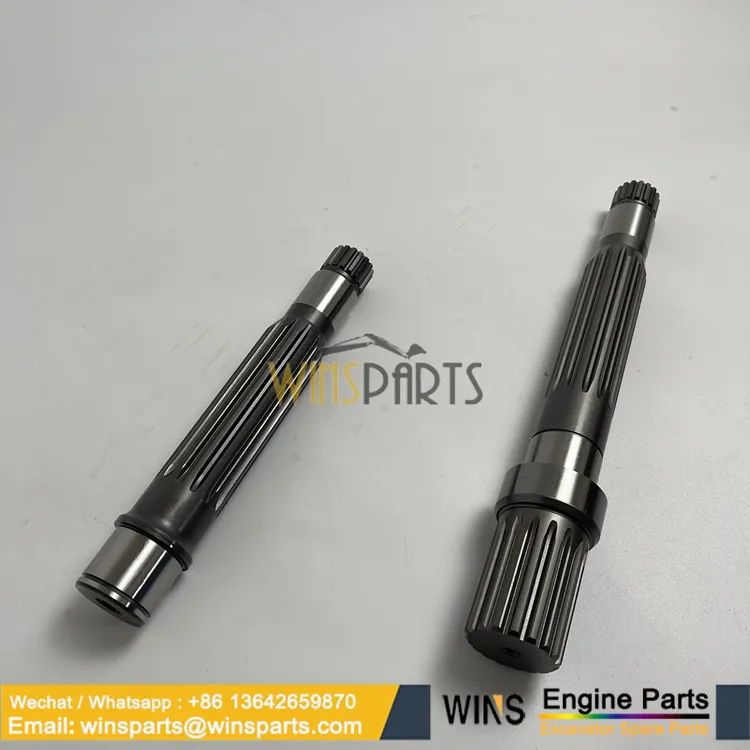

111. 124568 HYDRAULIC PUMP Doosan SOLAR SHAFT;DRIVING(F)
113. 124569 HYDRAULIC PUMP Doosan SOLAR SHAFT;DRIVING(R)
114. 113783 HYDRAULIC PUMP Doosan SOLAR COUPLING;SPLINE

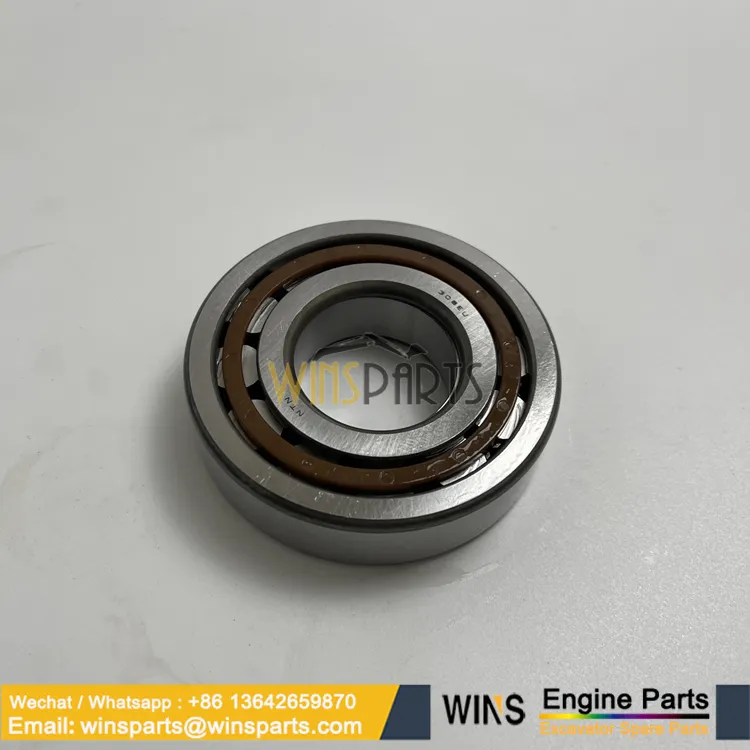

123. 219362 [2] BEARING;ROLLER
124. 219363 [2] BEARING;SPACER
127. 113784 [4] BEARING;SPACER

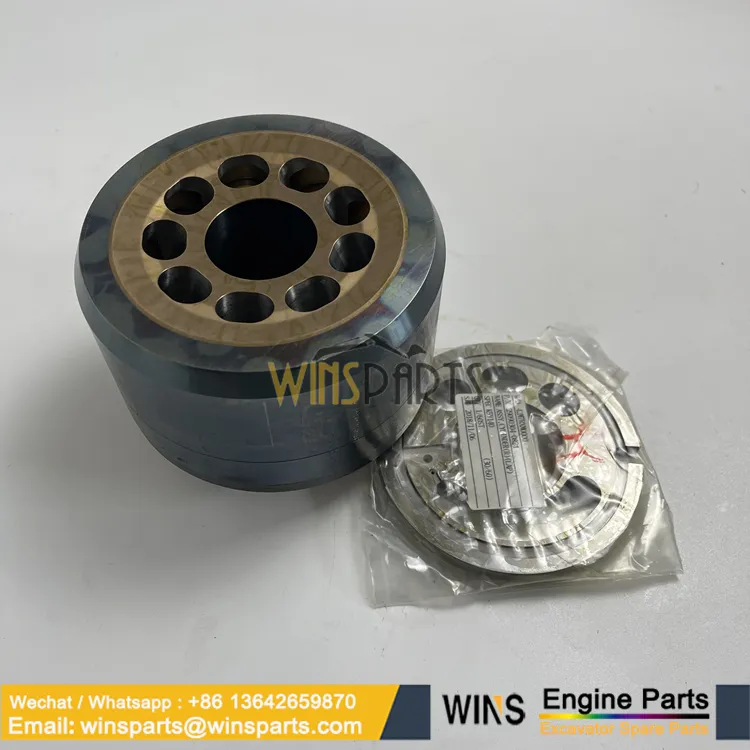

141. 137491 HYDRAULIC PUMP Doosan SOLAR BLOCK;CYLINDER
141. 137491 HYDRAULIC PUMP Doosan SOLAR BLOCK;CYLINDER
151. *NA00796 [18] PISTON
152. *NA01140 [18] PISTON
153. 115786 [2] PLATE;PUSH
156. 121437 [2] BUSH;SPHERICAL
157. 113787 [18] SPRING;CYLINDER
158. 113789 [2] SPACER
211. 113790 [2] PLATE;SHOE
212. 113780 HYDRAULIC PUMP Doosan SOLAR PLATE;SWASH
214. 218550 HYDRAULIC PUMP Doosan SOLAR BUSH;TILTING
250. 718424 HYDRAULIC PUMP Doosan SOLAR SUPPORT KIT
251. 113791 [2] SUPPORT
261. 113792 HYDRAULIC PUMP Doosan SOLAR COVER;SEAL(F)
271. 113794 [2] CASING;PUMP
310. 707849 HYDRAULIC PUMP Doosan SOLAR VALVE BLOCK KIT
312. 113795 HYDRAULIC PUMP Doosan SOLAR BLOCK;VALVE
313. 115798 HYDRAULIC PUMP Doosan SOLAR PLATE;VALVE(R)
314. 115799 HYDRAULIC PUMP Doosan SOLAR PLATE;VALVE(L)
401. 113797 [8] BOLT;SOCKET M20x210
406. 200846 [4] BOLT;SOCKET M8X20
468. 108847 [3] PLUG;VP
469. 108848 [2] PLUG PF1/8
490. 224308 [21] PLUG
531. 113807 HYDRAULIC PUMP Doosan SOLAR PIN;TILTING
532. 113798 [2] PISTON;SERVO
534. 113799 [2] STOPPER(L)
535. 113800 [2] STOPPER(S)
541. 113706 [2] SEAT
541. 113706 [2] SEAT
543. 113705 [2] STOPPER 1
544. 113703 [2] STOPPER 2
545. 200166 [2] BALL;STEEL
545. 200166 [2] BALL;STEEL
548. 113380 HYDRAULIC PUMP Doosan SOLAR PIN;FEEDBACK
702. 220019 [2] O-RING 1BG35
710. 204452 [2] O-RING 1BG95
717. 201639 [4] O-RING 1BG145
724. 201765 [16] O-RING 1BP8
725. 201689 [5] O-RING 1BP11
726. S8000145 [2] O-RING 1BP14
728. 201721 [3] O-RING 1BP24
732. 220016 [2] O-RING 1BP18
774. 212231 HYDRAULIC PUMP Doosan SOLAR SEAL;OIL TCV40V
789. 203480 [2] RING;BACK-UP T2P18
79. 719753 HYDRAULIC PUMP Doosan SOLAR VALVE;PROPORTIONAL
792. 203418 [2] RING;BACK-UP T2G45
806. 201557 [2] NUT M16
808. 102048 [2] NUT M20
824. 202606 [2] RING;SNAP
885. 113801 [2] PIN D8X12L
886. 200678 [2] PIN;SPRING
901. 212033 [2] BOLT;EYE
953. 118892 [2] SCREW;SET M16X30L
954. 113803 [2] SCREW;ADJUST Excavator Engine Spare Parts
GZ Wins Construction Machinery Co., Ltd. is engaged in development, production, marketing and agency services.
We are a manufacturer of specialization and diversification engineering machinery parts. Our products are selling well in America, Europe, Southeast Asia, the Middle East, Africa and other countries and regions.
We Provide Original Genuine Kobelco Parts,Include the following；
Kobelco Air-conditioning System,A/C Assembly, A/C Hose,A/C Compressor,A/C Condenser,Blower Assembly,Evaporator,A/C Pipe,A/C Receiver, A/C Filter.
Kobelco Body & Stamping Parts,CAB Assy, Engine Mounting,Engine Hood, Car Body,Door Panel,Roof.
Kobelco Hydraulics System,Set plate,Piston shoe,Cylinder block,Valve plate,Drive shaft,Ball guide,Piston pump,Gear pump.
We Provide Genuine MITSUBISHI HINO ISUZU Engine Parts.
Hino：J05E, J08E, P11C.
Mitsubishi: D04FR,4M40,6D16,6D22,6D24,6D31,6D34.
Isuzu:4HK1,4JJ1,4LE1,4LE2,4JB1,4BG1,6HK1,6WG1,6BG1,6UZ1,6BD1.
KOBELCO：SK60-III SK60-5 ,SK75-8,SK120LC-III SK120-5 ,SK130LC,SK140-8 SK140SRLC ,SK150LC,SK160,SK170,SK200-3 SK200-5 SK200LC-6E? SK200SR SK200-8,SK210LC-6E SK210LC-8, SK235SR,SK250LC-6E SK250 SK250-8,SK260-8 SK260-9,SK270,SK290LC,SK300LC-2 SK300LC-3 ,SK330LC-6E SK330,SK330LC-6E SK330-8 SK330-6,SK350-8 SK350LC SK350-9 ,SK460?SK460LC-IV SK480LC-6E SK460-8 SK480-6S ,SK485LC SK485-8 .
Kobelco Engine Assy,Engine Gasket Kits,Camshaft,Sprocket Camshaft,Tensioner,Crankshaft,Crankshaft Pulley,Crankshaft Bearing,Valve,Valve Seat,Valve Arm,Rocker Cover,Valve Spring,Valve Guide,Cylinder Head,Cylinder Liner,Cylinder Block,Washer,Piston,Piston Pin,Piston Ring,Piston Liner,Flywheel,Ring Gear of Flywheel,Timing Chain/Belt,Connecting Rod,Connecting Rod Bearing,Rocker Arm Shaft,Valve Cotter,Thrust Washer.
Injection Fueling System,Air Cleaner,Air Cleaner Cover,Exhaust Muffler,Exhaust Manifold,Exhaust Pipe,Intake Manifold,EGR Tube,Radiator,Water Hose,Fan,Thermostat,Oil Pan,Oil Level Gauge,Oil Filter.
