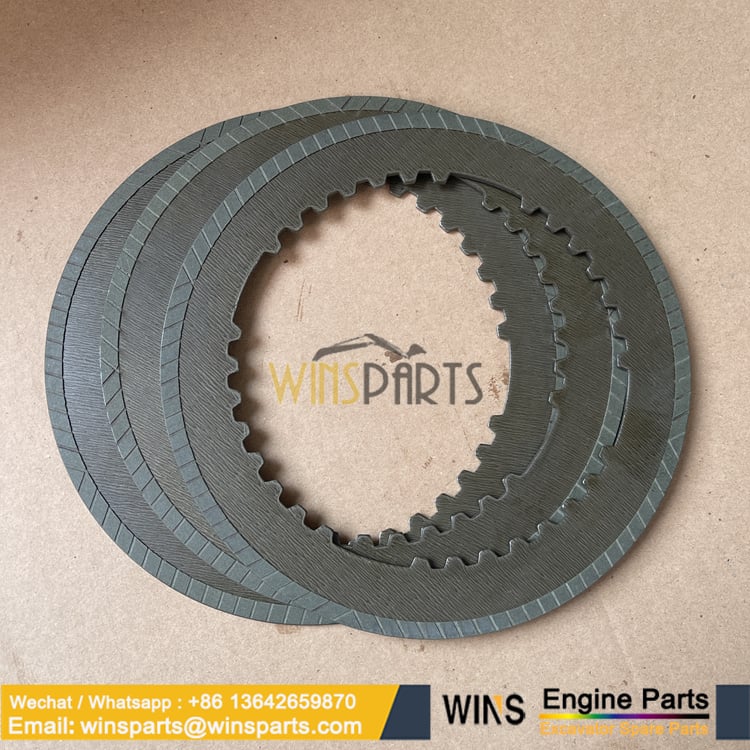

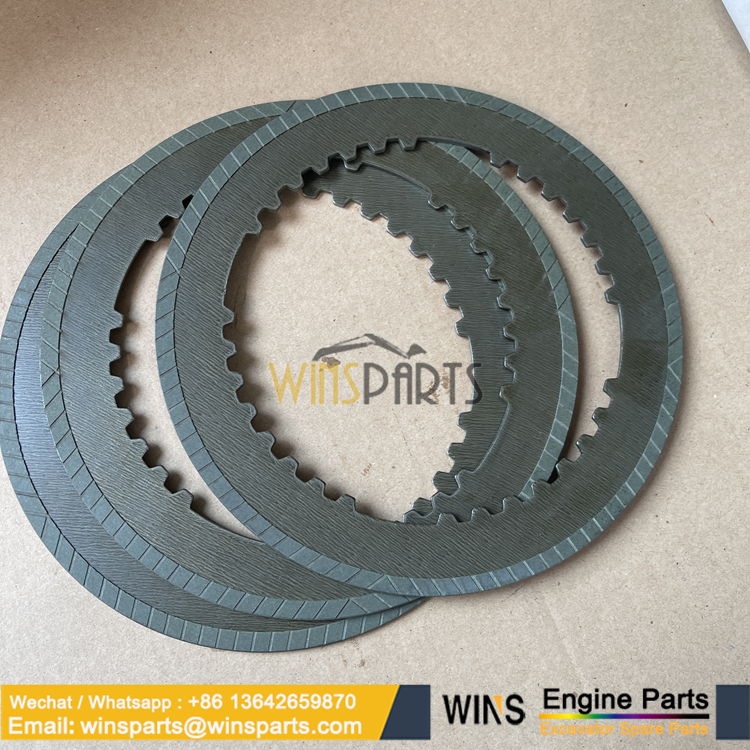

2441U983S126 FRICTION PLATE PROPELLING MOTOR Kobelco
$1.00
2441U983S126 LQ15V00007F1 LQ15V00007F2 FRICTION PLATE PROPELLING MOTOR Kobelco 230SR-3 SK210LC-6E SK235SRLC SK235SR-1E SK170-9 SK235SR-2 Excavator Spare Parts
Number:2441U983S126 LQ15V00007F1 LQ15V00007F2 FRICTION PLATE PROPELLING MOTOR
Type:PROPELLING MOTOR Kobelco
Application:Kobelco 230SR-3 SK210LC-6E SK235SRLC SK235SR-1E SK170-9 SK235SR-2
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MITSUBISHI
Excavator Brand: New Holland/KOBELCO/HITACHI
AR LQ15V00007F1 MOTO-REDUCTION GEAR ASSY (PROPELLING)
7 kobelco ZD12P02100 GASKET O-Ring — ID 20.80 ± 0.23 x OD 25mm
8 kobelco 2436U1027S203 SEAT/SLOT SPRING
9 kobelco 2441U983S9 SPRING
10 kobelco 2436U1027S205 SEAT/SLOT SPRING
11 kobelco NSS NOT SERVICED SEPARATELY CAP
12 kobelco ZD12G04500 O-RING ID 44.40 ± 0.41 x OD 50mm
13 8 ZS23C12040 SCREW M12x1.75x40mm
14 kobelco ZD12P00800 O-RING ID 07.80 ± 0.16 x OD 11mm
15 kobelco 2441U792S19 PLUG
16 kobelco NSS NOT SERVICED SEPARATELY ORIFICE
17 kobelco YN23V00003F1 PRESSURE RELIEF VALVE ASSY, SEE FIGURE 07-019
18 4 NSS NOT SERVICED SEPARATELY PLUG
19 kobelco NSS NOT SERVICED SEPARATELY SPOOL
20 kobelco NSS NOT SERVICED SEPARATELY SPOOL
21 kobelco LQ15V00007S021 FILTER FILTER
22 kobelco ZD12P00600 O-RING ID 05.80 ± 0.15 x OD 09mm
23 kobelco ZD12P00500 O-RING
24 kobelco ZD85P00600 BACK-UP RING
25 kobelco ZD85P00500 BACK-UP RING
26 kobelco LQ15V00007S026 RING RING, SNAP
27 kobelco LQ15V00007S027 SPRING
28 kobelco 2441U792S141 PLUG
29 kobelco ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm
30 kobelco LQ15V00007S030 GUIDE PIN SPRING
31 kobelco LQ15V00007S031 PLUG
32 kobelco 2441U983S27 WASHER
33 6 NSS NOT SERVICED SEPARATELY PLUG
34 kobelco NSS NOT SERVICED SEPARATELY ORIFICE
35 kobelco NSS NOT SERVICED SEPARATELY ORIFICE
36 5 NSS NOT SERVICED SEPARATELY ORIFICE
37 4 2441U984S35 PLUG
38 4 ZD12P00800 O-RING ID 07.80 ± 0.16 x OD 11mm
39 kobelco LQ15V00007S039 CHECK VALVE
40 kobelco LQ15V00007S040 SPRING
41 kobelco ZD12P01200 O-RING ID 11.80 ± 0.19 x OD 16mm
42 kobelco LQ15V00007S042 SHAFT
43 kobelco NSS NOT SERVICED SEPARATELY BLOCK, CYLINDER
44 9 NSS NOT SERVICED SEPARATELY PISTON ASSY
45 kobelco NSS NOT SERVICED SEPARATELY PLATE
46 kobelco NSS NOT SERVICED SEPARATELY HOLDER
47 kobelco YN15V00005S114 SNAP RING
48 kobelco YN15V00005S115 SPRING SEAT
49 kobelco YN15V00005S116 SPRING
50 kobelco YN15V00005S117 RING COLLAR
51 3 2441U792S119 PIN
52 kobelco LQ15V00007S052 PLATE PLATE
53 kobelco 2441U792S110 BALL
54 kobelco NSS NOT SERVICED SEPARATELY PISTON ASSY
55 kobelco LQ15V00007S055 BALL BEARING
56 kobelco LQ15V00007S056 BALL BEARING
57 kobelco 2441U563S117 PIN
58 10 ZS23C14035 SCREW M14x2.0x35mm
59 kobelco 2441U983S121 OIL SEAL

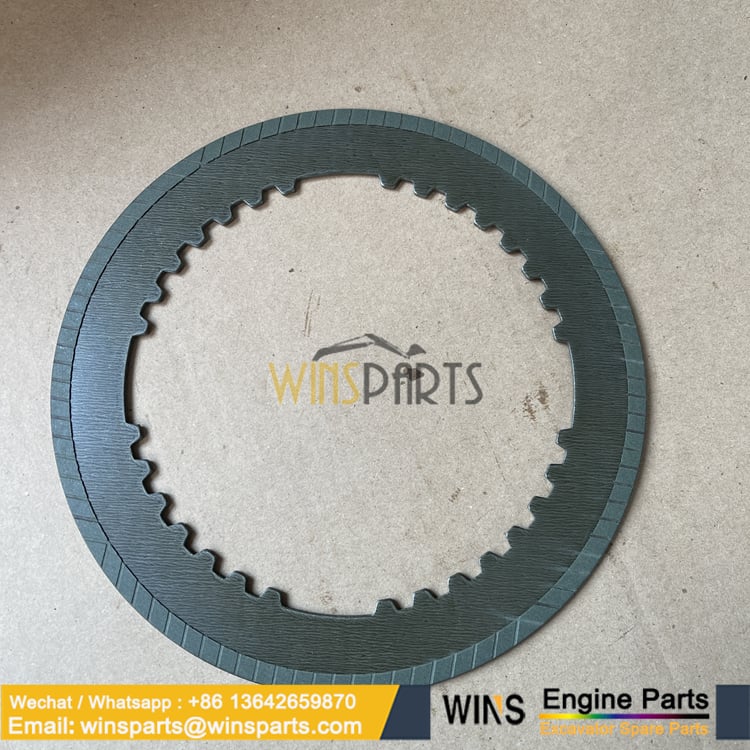

60 3 LQ15V00007S060 PLATE DISC
61 kobelco 2441U983S126 PLATE FRICTION
62 kobelco LQ15V00007S062 KIT PISTON, BRAKE
63 kobelco 2441U984S42 O-RING
64 kobelco 2441U983S130 O-RING
65 8 2441U792S130 SPRING
66 4 YN15V00005S128 PIN
67 kobelco YN15V00005S139 SPRING
68 kobelco YN15V00005S105 PLATE VALVE
69 4 ZD12P01000 O-RING ID 09.80 ± 0.17 x OD 13mm
70 kobelco 2441U802S67 O-RING
71 kobelco NSS NOT SERVICED SEPARATELY NAME PLATE
72 kobelco NSS NOT SERVICED SEPARATELY RIVET
73 kobelco NSS NOT SERVICED SEPARATELY PLUG
74 kobelco NSS NOT SERVICED SEPARATELY PLUG
75 kobelco NSS NOT SERVICED SEPARATELY PLUG
76 kobelco LQ15V00007S076 SEAL FLOATING
77 kobelco LQ15V00007S077 BEARING ANGULAR
78 kobelco LQ15V00007S078 REPAIR KIT HOUSING
79 kobelco NSS NOT SERVICED SEPARATELY SHIM
80 kobelco LQ15V00007S080 HOLDER
81 8 LQ15V00007S081 FRICTION WASHER
82 8 LQ15V00007S082 SCREW
83 4 LQ15V00007S083 PLATE THRUST
84 4 LQ15V00007S084 RACE INNER
85 4 LQ15V00007S085 BEARING ASSY NEEDLE
86 4 LQ15V00007S086 DRIVEN GEAR
87 4 LQ15V00007S087 PLATE THRUST
88 4 LQ15V00007S088 SCREW
89 kobelco LQ15V00007S089 SUN GEAR
90 kobelco LQ15V00007S090 RING SNAP
91 kobelco LQ15V00007S091 HOLDER
92 3 LQ15V00007S092 PLATE THRUST
93 3 LQ15V00007S093 RACE INNER
94 3 LQ15V00007S094 BEARING NEEDLE
95 3 LQ15V00007S095 GEAR GEAR
96 3 LQ15V00007S096 PLATE THRUST
97 kobelco LQ15V00007S097 PLATE THRUST
98 3 LQ15V00007S098 SCREW
99 kobelco LQ15V00007S099 DRIVEN GEAR
100 kobelco NSS NOT SERVICED SEPARATELY PLATE, THRUST
101 kobelco LQ15V00007S101 COVER
102 16 LQ15V00007S102 SCREW
103 3 LQ15V00007S103 PLUG
104 3 ZD12P02400 O-RING ID 23.70 ± 0.24 x OD 30mm
105 4 LQ15V00007S105 PIN
kobelco LQ15V00007R100 REPAIR KIT CONSISTS OF REF 7(2), 12(2), 14(2), 22(1), 23(1), 24(1), 25(1), 29(2), 38(4), 41(2), 59(1), 63(1), 64(1), 69(4), 70(1)
kobelco LQ15V00007R200 REPAIR KIT CONSISTS OF REF 76(2), 104(3)
kobelco LQ15V00007R300 CONSISTS OF REF 1(1), 54(2)
kobelco LQ15V00007R400 REPAIR KIT CONSISTS OF REF 2(1), 18(4), 33(6), 34(1), 35(2), 36(5), 37(4), 38(4)
kobelco LQ15V00007R500 REPAIR KIT CONSISTS OF REF 11(1), 12(1), 13(4), 14(1), 15(1), 16(1)
kobelco LQ15V00007R600 REPAIR KIT CONSISTS OF REF 43(1), 44(9), 45(1), 46(1), 47(1), 48(1), 49(1), 50(1), 51(3)
kobelco LQ15V00007R700 REPAIR KIT CONSISTS OF REF 79(1) (0.05, 0.1, 0.3, 0.5, 1.0)
kobelco LQ15V00007R800 REPAIR KIT CONSISTS OF REF 100(1) (2.3, 2.8, 3.0, 3.2, 3.6) Excavator Engine Spare Parts
