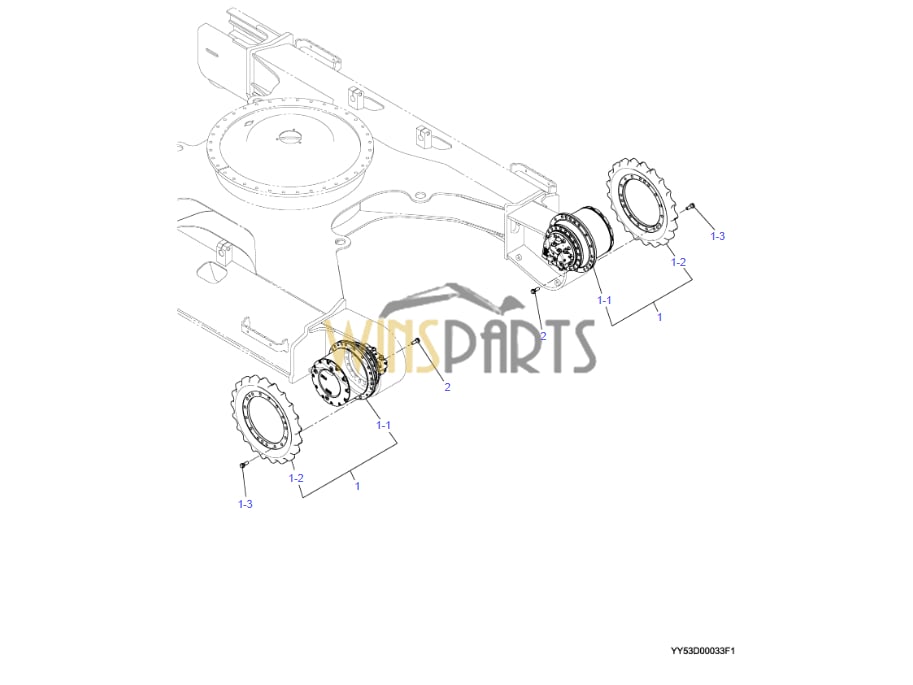

YY53D00033F1YY53D00034F1 YY15V00041F1 PROPEL MOTOR ASSY KOBELCO SK125SR-5 SK130SR-5 SK130UR-5

YY53D00033F1YY53D00034F1 YY15V00041F1 PROPEL MOTOR ASSY KOBELCO SK125SR-5 SK130SR-5 SK130UR-5
　 .
　 1 YY53D00034F1 MOTOR ASSY, PROPEL 2
1-1 YY15V00041F1 MOTOR ASSY, PROPEL 1 HC 545-00
　 1-2 YY51D01019P1 SPROCKET 1
　 1-3 LP53D01001P2 CAPSCREW 18
　 2 LP53D01001P2 CAPSCREW 40

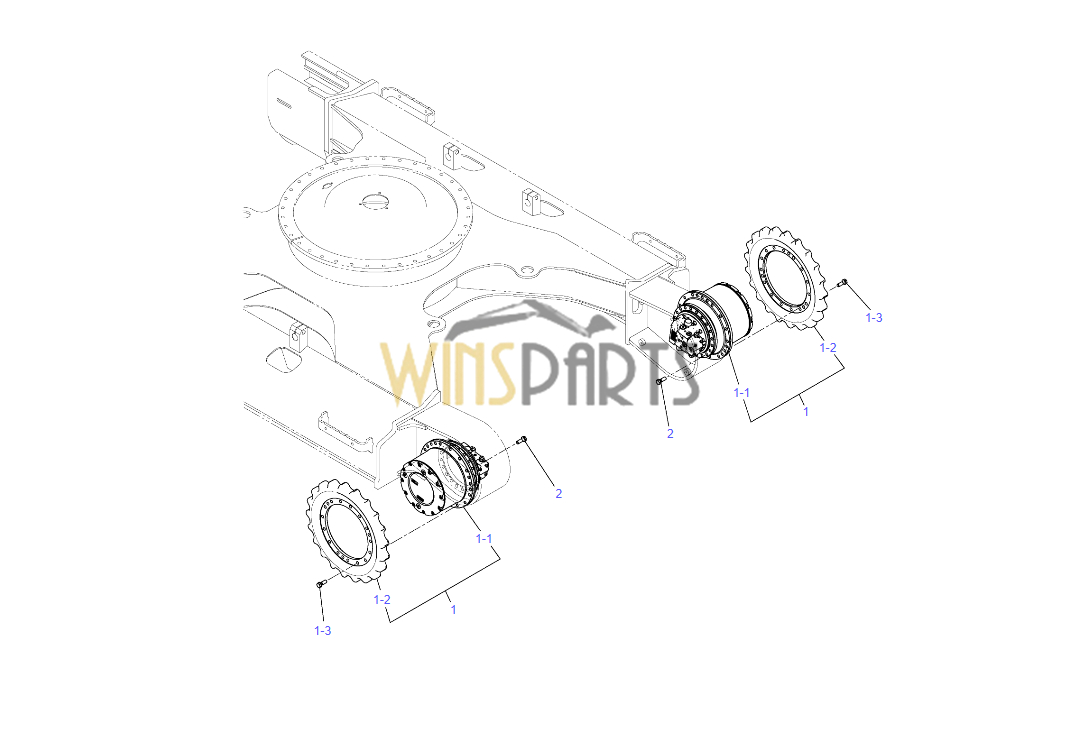

YY53D00030F1 YY53D00032F1 YY15V00041F1 PROPEL MOTOR KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
　 .
1 YY53D00032F1 MOTOR ASSY, PROPEL 2 Not Service
1-1 YY15V00041F1 MOTOR ASSY, PROPEL 1 HC 545-00
　 1-2 YY51D01015P2 SPROCKET 1
　 1-3 LP53D01001P2 CAPSCREW 18

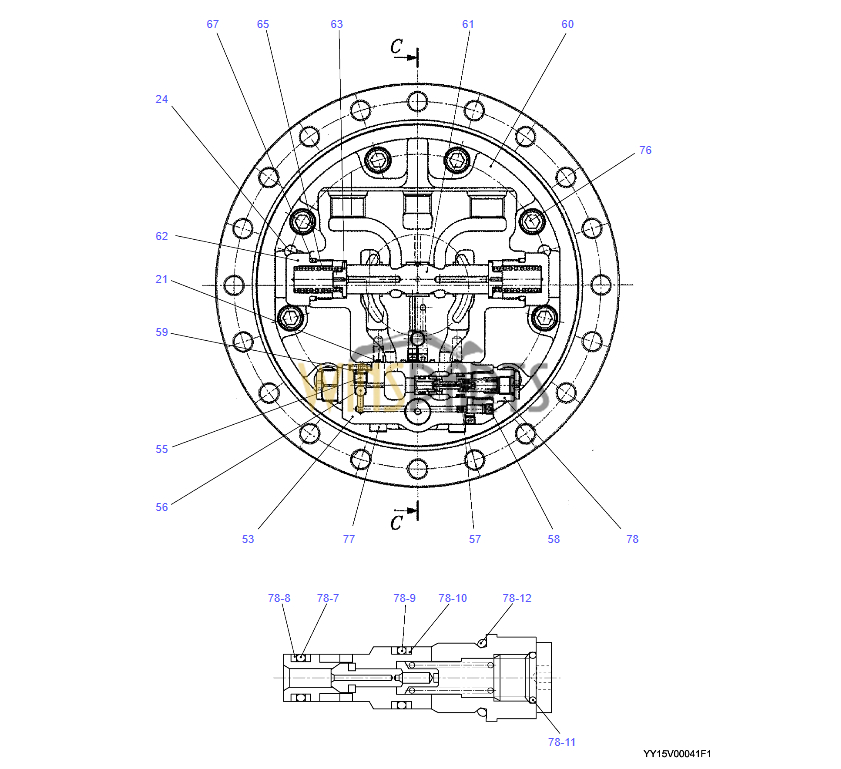

YY15V00041F1 PROPEL MOTOR ASSY KOBELCO SK130SR-7 SK140SRLC-7 SK135SRLC-5
　 .
　 1 YY15V00041S001 HUB 1
　 2 YY15V00041S002 SPINDLE 1
　 3 YY15V00041S003 FLANGE 1
　 4 YY15V00041S004 GEAR 1
　 5 YY15V00041S005 GEAR 3
　 6 YY15V00041S007 FLANGE 1
　 7 YY15V00041S008 GEAR 1
　 8 YY15V00041S009 GEAR 4
　 9 YY15V00041S012 WASHER 4
　 10 YY15V00041S013 PLATE 2
　 11 YY15V00041S014 COVER 1
　 12 YY15V00015S022 WASHER 2
　 13 YY15V00015S023 SHIM 1
　 14 YY15V00015S024 BEARING, BALL 2
　 15 EC53D00001S010 RACE, INNER 3
　 16 YY15V00041S026 RACE, INNER 4
　 17 EC53D00001S027 BEARING 3
　 18 YY15V00041S028 BEARING, ROLLER 4
　 19 NO P/No SEAL, FLOATING 2 R1
　 20 2441U995S121 PLUG 7 R4, R5
　 21 ZD12P01800 O-RING 9 R4, R5
　 22 YY15V00015S032 O-RING 1
　 23 ZD12P00700 O-RING 2
　 24 YW15V00005S171 PIN 4
　 25 ZS23C10035 CAPSCREW 12
　 26 YY15V00041S041 BALL 1
　 27 ZS18C12020 CAPSCREW 4
　 28 YY15V00041S102 SHAFT 1
　 29 YY15V00041S103 PLATE 1
　 30 NO P/No BLOCK 1 R2
　 31 NO P/No PISTON 9 R2
　 32 NO P/No SHOE 9 R2
　 33 YY15V00041S107 PLATE 1
　 34 YY15V00041S108 BALL 1
　 35 YY15V00041S109 PLATE 1
　 36 YY15V00041S110 WASHER 2
　 37 YY15V00041S112 PISTON 1
　 38 2441U961S113 SPRING 8
　 39 YY15V00041S114 SPRING 1
　 40 YY15V00041S115 PLATE 3
　 41 YY15V00041S116 PLATE 4
　 42 YY15V00041S119 SHIM 1
　 43 YY15V00041S132 OIL SEAL 1
　 44 LF15V00002S141 O-RING 1
　 45 YY15V00015S139 O-RING 1
　 46 YY15V00041S145 RING 1
　 47 YY15V00041S149 BEARING, ROLLER 1
　 48 EE15V00026S150 BEARING, ROLLER 1
　 49 YY15V00041S151 ROLLER 3
　 50 YY15V00041S161 PISTON 1
　 51 2441U1065S167 PLATE 2
　 52 YY15V00041S185 SPRING 1

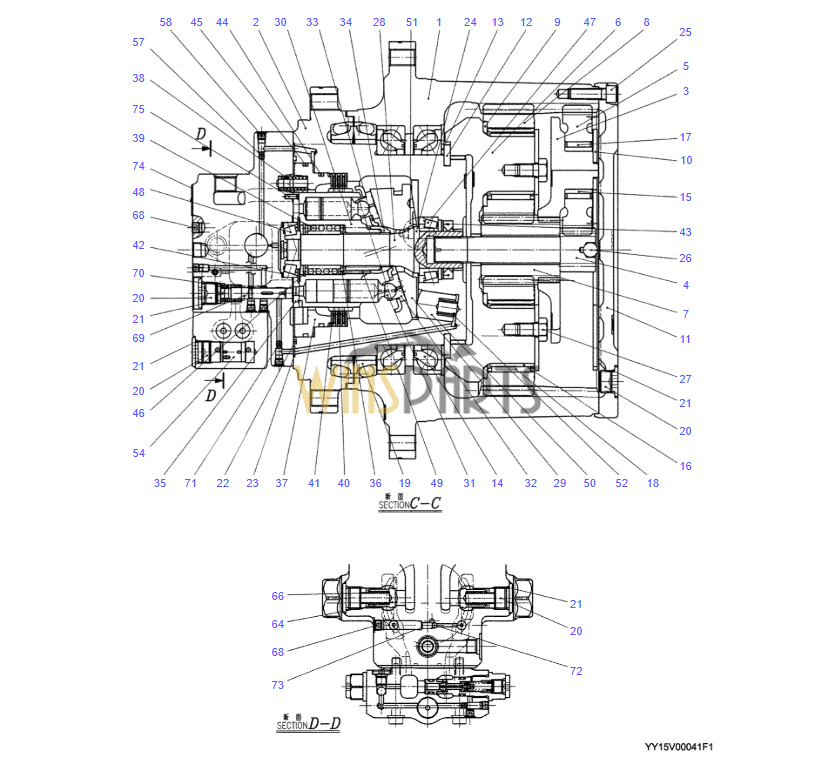

YY15V00041R440 YY15V00041R430 KOBELCO PROPEL MOTOR GEAR CASE KIT
　 53 NO P/No BODY 1 R3, R4
　 54 NO P/No PISTON 1 R3, R4
　 55 YT15V00008S284 PLUG 2 R4
　 56 YY15V00041S218 BALL 2 R4
　 57 PH15V00009S275 ORIFICE 3 R4, R5
　 58 PY15V00006S154 PLUG 9 R4, R5
　 59 ZD12P00800 O-RING 2 R4
　 60 YY15V00041S301 FLANGE 1 R5
　 61 YY15V00041S323 SPOOL 1 R5
　 62 YY15V00041S324 PLUG 2 R5
　 63 YY15V00041S325 WASHER 2 R5
　 64 LF15V00002S227 VALVE, CHECK 2 R5
　 65 2441U815S158 SPRING 2 R5
　 66 LF15V00002S230 SPRING 2 R5
　 67 ZD12P02600 O-RING 2 R5
　 68 YX15V00003S146 PLUG 5 R5
　 69 YY15V00015S363 SPOOL 1 R5
　 70 YY15V00015S366 SPRING 1 R5
　 71 YY15V00041S377 ORIFICE 1 R5
　 72 EE15V00026S368 BALL 1 R5
　 73 YY15V00041S379 PLUG 1 R5
　 74 YY15V00041S399 NAME PLATE 1 R5
　 75 GG15V00027S246 PIN 1
　 76 ZS23C12030 CAPSCREW 10
　 77 ZS23C08055 CAPSCREW 4
　 78 YY22V00032F1 VALVE, RELIEF 2
　 78-7 ZD12P01000 O-RING 1
　 78-8 ZD85P01090 RING, BACK-UP 2
　 78-9 ZD12P01400 O-RING 1
　 78-10 ZD85P01400 RING, BACK-UP 2
　 78-11 ZD12P01100 O-RING 1
　 78-12 ZD12P01800 O-RING 1
　 .
　 YY15V00015R430 SEAL KIT 1 RK1
　 . (19)X2
　 .
　 YY15V00041R410 PISTON KIT 1 RK2
　 . (30)X1
　 . (31, 32)X9
　 .
　 YY15V00041R420 PISTON KIT 1 RK3 LP10030001–30114
　 . (53, 54)X1
　 .
　 YY15V00041R430 CASE KIT 1 RK4 LP10030001–30114
　 . (20, 21, 53, 54)X1
　 . (55, 56, 57, 59)X2
　 . (58)X4
　 .
　 YY15V00041R440 CASE KIT 1 RK5
　 . (57, 60, 61, 69, 70, 71, 72, 73, 74)X1
　 . (62, 63, 64, 65, 66, 67)X2
　 . (20)X3
　 . (21, 58, 68)X5

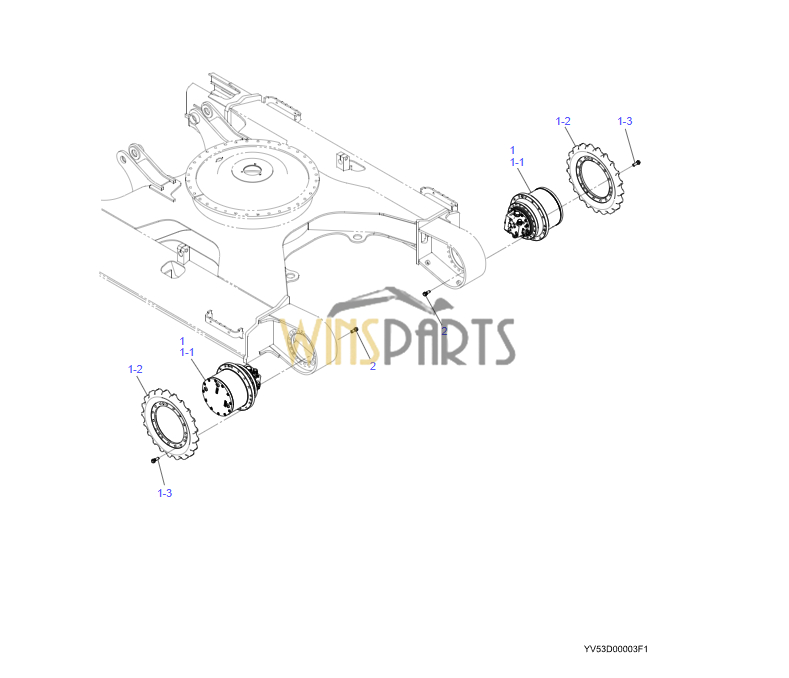

YV53D00003F1 YV53D00004F1 YY15V00051F1 PROPEL PROPEL MOTOR
　 .
　 1 YV53D00004F1 MOTOR ASSY, PROPEL 2
HC545-00_YY15V00051F1_JP_D0006264313_1 1-1 YY15V00051F1 MOTOR ASSY, PROPEL 1 HC 545-00
　 1-2 YY51D01019P1 SPROCKET 1
　 1-3 HS13C16050G1 CAPSCREW 18
　 2 LP53D01001P2 CAPSCREW 40

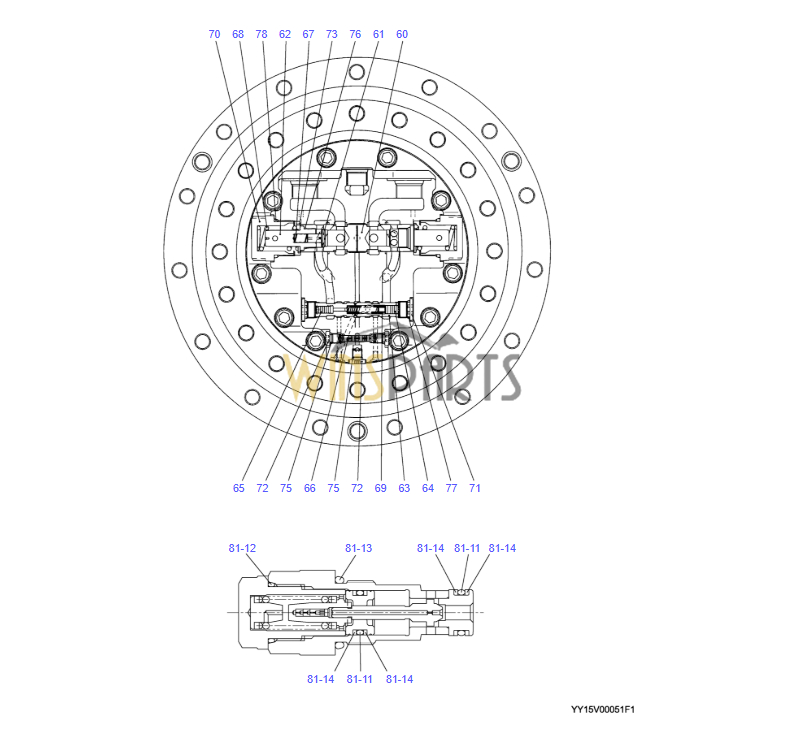

YY15V00051F1 YY15V00051S109 PROPEL MOTOR ASSY KOBELCO SK135SRLC-5 SK140SRL-5 SK140SRLC-5 ED160(BR)-5
　 1 NO P/No BODY 1
　 2 YY15V00051S102 COVER 1
　 3 NO P/No CARRIER 1 R2
　 4 NO P/No CARRIER 1 R3
　 5 YY15V00051S105 JOINT 1
　 6 NO P/No GEAR 4 R2
　 7 NO P/No GEAR 3 R3
　 8 YY15V00051S108 GEAR 1
　 9 YY15V00051S109 GEAR 1
　 10 NO P/No PIN 4 R2
　 11 NO P/No PIN 3 R3
　 12 YY15V00051S113 PLATE 1
　 13 NO P/No WASHER, THRUST 8
　 14 NO P/No WASHER, THRUST 6 R3
　 15 ZS28C10030 CAPSCREW 12
　 16 YY15V00051S117 SEAT 1
　 18 NO P/No BEARING 2 R1
　 19 NO P/No NEEDLE 4 R2
　 20 NO P/No NEEDLE 66 R3
　 21 NO P/No RING 1 R1
　 22 ZD12P01800 O-RING 3 R8
　 23 PW10V00012S053 PLUG 3
　 24 NO P/No NEEDLE 4 R2
　 25 NO P/No NEEDLE 3 R3
　 26 YY15V00051S130 SPACER 1
　 27 NO P/No BODY 1 R5
　 28 NO P/No SHAFT 1 R6
　 29 NO P/No CYLINDER BARREL 1 R7
　 30 NO P/No PLATE 1 R7
　 31 NO P/No PISTON ASSY 9 R7
　 32 NO P/No SHOE HOLDER 1 R7
　 33 NO P/No BARREL HOLDER 1 R7
　 34 YY15V00051S210 PLATE 1
　 35 NO P/No PISTON 1 R5
　 36 NO P/No SPRING 1 R5
　 37 NO P/No PIN 3 R7
　 38 NO P/No SPRING 1 R7
　 39 NO P/No RETAINER 2 R7
　 40 YY15V00051S216 PLATE 3
　 41 YY15V00051S217 PLATE 3
　 42 YY15V00051S218 PISTON 1
　 43 YY15V00051S219 SPRING 10
　 44 NO P/No BEARING 1 R6
　 45 NO P/No BEARING 1
　 46 YY15V00051S222 BALL 2
　 47 YY15V00051S223 PIN 2
　 48 NO P/No OIL SEAL 1 R5,R9
　 49 NO P/No RING, SNAP 1 R7
　 50 NO P/No SPRING, PIN 1
　 51 PA15V01002S321 PIN 3
　 52 YY15V00051S228 SCREW 10
　 53 YY15V00051S229 O-RING 1 R9
　 54 ZD12P00700 O-RING 2 R9
　 55 YY15V00051S231 O-RING 1 R9
　 56 YY15V00051S232 O-RING 1 R9
　 57 YY15V00051S233 RING, BACK UP 1 R9
　 58 YY15V00051S234 RING, BACK UP 1 R9
　 59 NO P/No BODY 1 R4
　 60 NO P/No SPOOL 1 R4
　 61 NO P/No VALVE, CHECK 2 R4
　 62 NO P/No SPRING, GUIDE 2 R4
　 63 NO P/No SPOOL 1 R4
　 64 NO P/No SPOOL 1 R4
　 65 NO P/No SPOOL 1 R4
　 66 NO P/No SPOOL 1 R4
　 67 NO P/No SPRING 2 R4
　 68 NO P/No SPRING 2 R4
　 69 NO P/No SPRING 1 R4
　 70 NO P/No PLUG 2 R4
　 71 NO P/No PLUG 2 R4
　 72 NO P/No PLUG 8 R4
　 73 NO P/No PLUG 2 R4
　 74 NO P/No PLUG 7 R4
　 75 ZD12P00800 O-RING 8 R4,R9
　 76 YY15V00051S320 O-RING 2 R4,R9
　 77 ZD12P01400 O-RING 2 R4,R9
　 78 ZD12P03400 O-RING 2 R4,R9
　 79 NO P/No CHOKE 2 R4
　 80 NO P/No CHOKE 3 R4
　 81 YY22V00035F1 VALVE, RELIEF 2 R4
　 81-11 ZD12P01500 O-RING 2
　 81-12 ZD12P02200 O-RING 1
　 81-13 ZD12P02500 O-RING 1
　 81-14 ZD85P01500 RING, BACK-UP 4
　 .
　 YY15V00015R400 CASE KIT 1 RK1
　 . (1)X2
　 . (18, 21)X2
　 .
　 YY15V00051R410 CARRIER KIT 1 RK2
　 . (3)X1
　 . (6, 10,19,24)X4
　 . (13)X8
　 .
　 YY15V00051R420 CARRIER KIT 1 RK3
　 . (4)X1
　 . (7, 11, 25)X3
　 . (14)X6
　 .
　 YY15V00051R430 CASE KIT 1 RK4
　 . (45, 50, 59, 60, 63, 64, 65, 66, 69 )X1
　 . (61, 62, 67, 68, 70, 71, 73, 76, 77, 78, 79, 81 )X2
　 . (80)X3
　 . (74)X7
　 . (72,75)X7
　 .
　 YY15V00051R440 CASE KIT 1 RK5
　 . (27, 35, 36, 48)X1
　 .
　 YY15V00051R450 SHAFT KIT 1 RK6
　 . (28, 44,)X1
　 .
　 YY15V00051R460 ROTARY KIT 1 RK7
　 . (29, 30,32,33,38,49,)X1
　 . (39)X2
　 . (37)X3
　 . (31)X9
　 .
　 YY15V00051R470 SEAL KIT 1 RK8
　 . (22)X3
　 .
　 YY15V00051R480 SEAL KIT 1 RK9
　 . (48, 53, 55, 56, 57, 58 )X1
　 . (54,76,77,78 )X2
　 . (75 )X8
