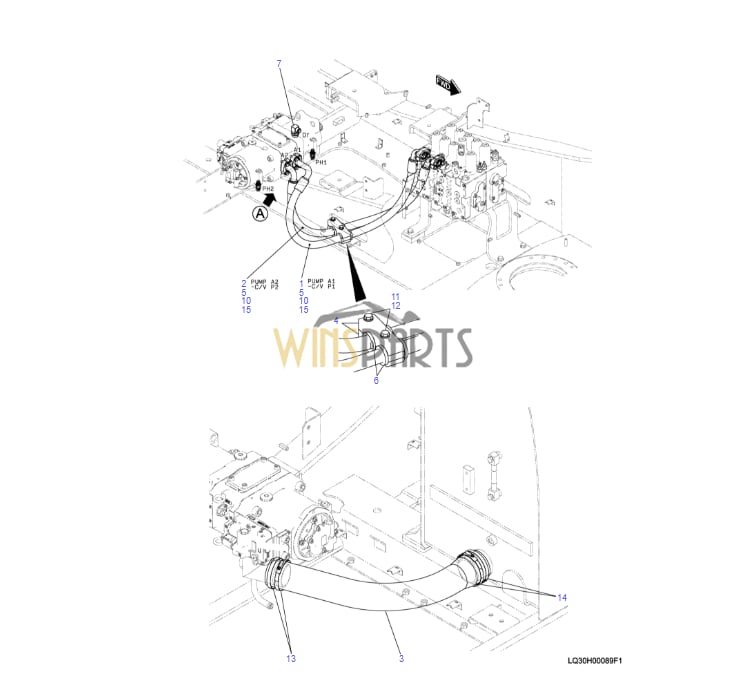

LQ30H00089F1 HYD LINES, PUMP HOSE KOBELCO SK250-10 SK260LC-10
.

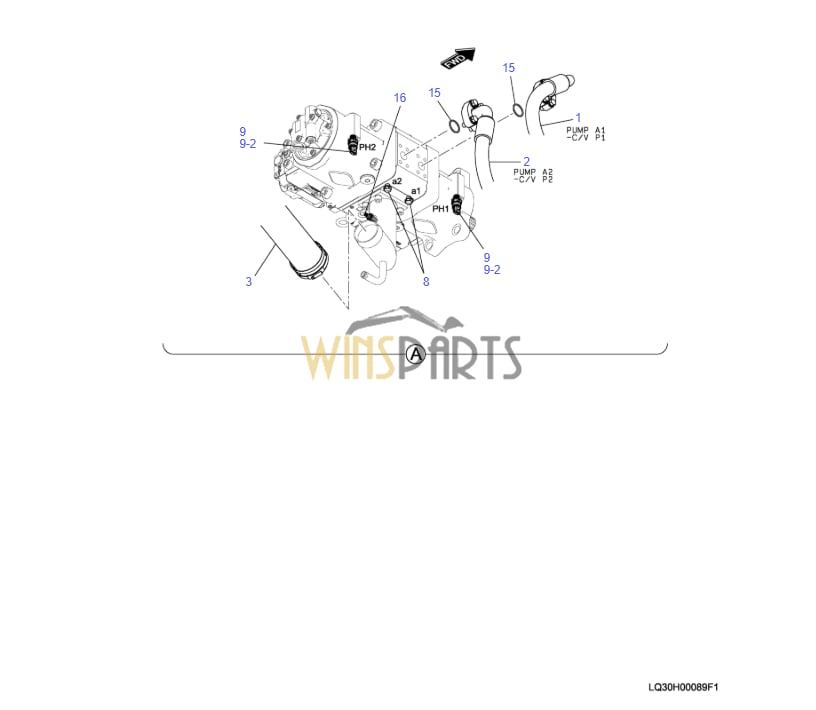

1 LQ30H01210D1 HOSE 1
2 LQ30H01213D1 HOSE 1
3 LQ30H01204P1 HOSE 1
4 LQ30H01152P1 CLAMP 2
5 ZE13X16000 CLAMP, HALF 8
6 LQ30H01153P1 BUSHING 2
7 ZH32X12000 ELBOW, 90 1
8 ZE72X04000 PLUG 2
9 YN52S00103P1 SENSOR, PRESS 2
9-2 ZD12P01400 O-RING 1
10 HM83C12040G1 SEMS-BOLT 16
11 ZS18C12090 CAPSCREW 2
12 ZW16H12000 WASHER 2
13 ZC16X09100 CLIP 2
14 ZC16X10000 CLIP 2
15 ZD12P03400 O-RING 4
16 LS52S00046P1 SENSOR, TEMP 1
.
1 LQ30H01212P1 ELBOW 1
2 ZS28C12030 CAPSCREW 4
2 ZS28C12025 CAPSCREW 4 LL16405153-
. LQ16405028-
3 ZW26K12000 LOCK WASHER 4
4 45Z91D104 O-RING 1
12 ZE12X12000 CLAMP, HALF 4
13 ZE12X16000 CLAMP, HALF 16
14 ZE13X20001 CLAMP, HALF 2
15 LQ03H01370P1 SUPPORT 1
16 LQ03H01361P1 ELBOW 2
17 ZM73C12035 SEMS-BOLT 2
18 HM83C10035G1 SEMS-BOLT 48
19 ZS18C10065 CAPSCREW 2
19 ZS18C10070 CAPSCREW 2
20 ZS18C14050 CAPSCREW 4
21 ZW16H10000 WASHER 2
22 ZW26X14000 LOCK WASHER 4
23 PY01P01043D8 CLIP 4
24 LQ03H01355P1 BUSHING 2
25 ZD12A01600 O-RING 4
26 ZD12A02100 O-RING 6
27 ZD12P02600 O-RING 2
28 ZD12P03400 O-RING 10
29 ZD12P03800 O-RING 1
30 YN03H01807D6 HOSE 1
31 YN03H01809D6 HOSE 1
32 HH25X08008G2 CONNECTOR 1
33 LQ19H01025P1 ELBOW 3
34 LQ19H01024P1 ELBOW 1
35 YN52S00104P1 SENSOR, PRESS 2
35-2 ZD12P01400 O-RING 1

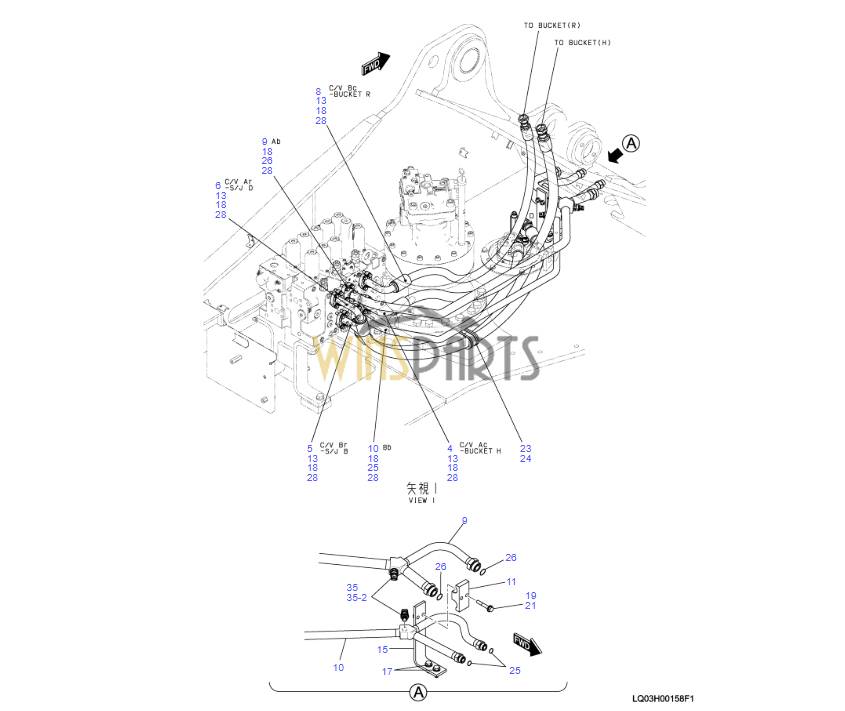

1 LQ03H01378D1 HOSE 1
2 YN03H02037D2 HOSE 1
3 YN03H02038D2 HOSE 1
4 YN03H01805D3 HOSE 1
5 YN03H01807D5 HOSE 1
6 YN03H01808D2 HOSE 1
7 YN03H01808D3 HOSE 1
8 YN03H01809D1 HOSE 1
9 LQ03H01375P1 TUBE 1
10 LQ03H01376P1 TUBE 1
11 LQ03H01377P1 CLAMP 1
.

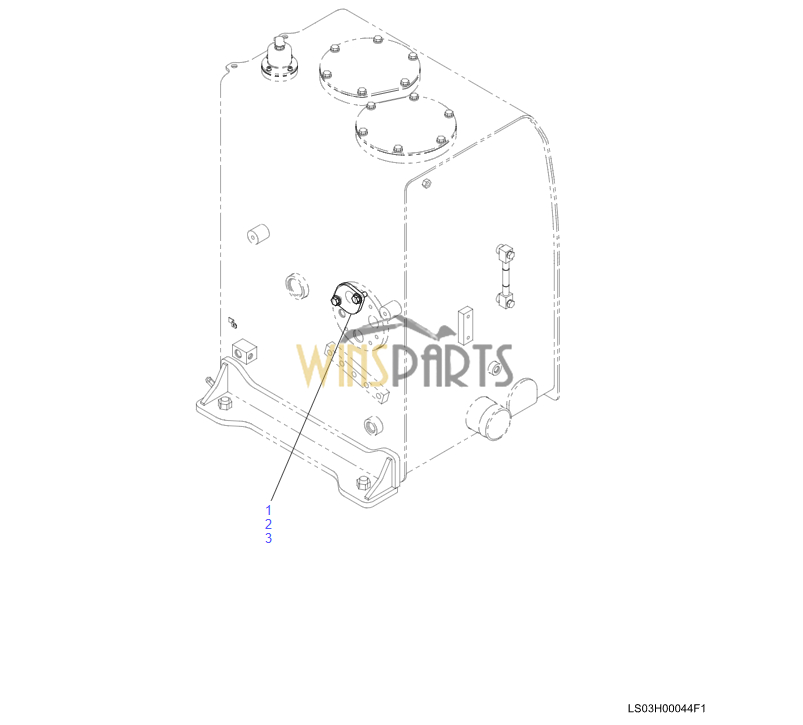

1 YN03H01884P1 PLUG 1
2 ZM73C12030 SEMS-BOLT 2
3 ZD12P04800 O-RING 1
.
1 LQ03H01398D1 HOSE 1
2 LQ03H01379D1 HOSE 1
3 LQ03H01380D1 HOSE 1
5 ZE12X16000 CLAMP, HALF 2
6 ZE13X20001 CLAMP, HALF 4
7 ZS18C14045 CAPSCREW 4
8 ZS18C14050 CAPSCREW 4
9 HM83C10035G1 SEMS-BOLT 4
10 HM83C12035G1 SEMS-BOLT 4
11 ZW26X14000 LOCK WASHER 8
12 ZD12P03400 O-RING 1
13 ZD12P03800 O-RING 2
14 ZD12P04800 O-RING 2
.

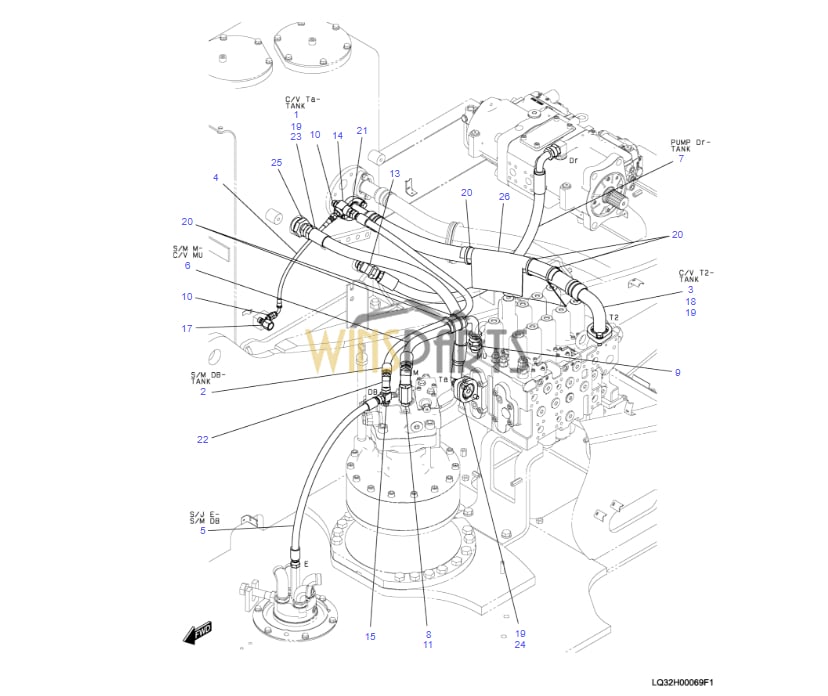

150-01_LQ32H00069F1_HKCM-06_D0002488477_1 1 LQ32H00069F1 HYD LINES, RETURN 1 P.150-01

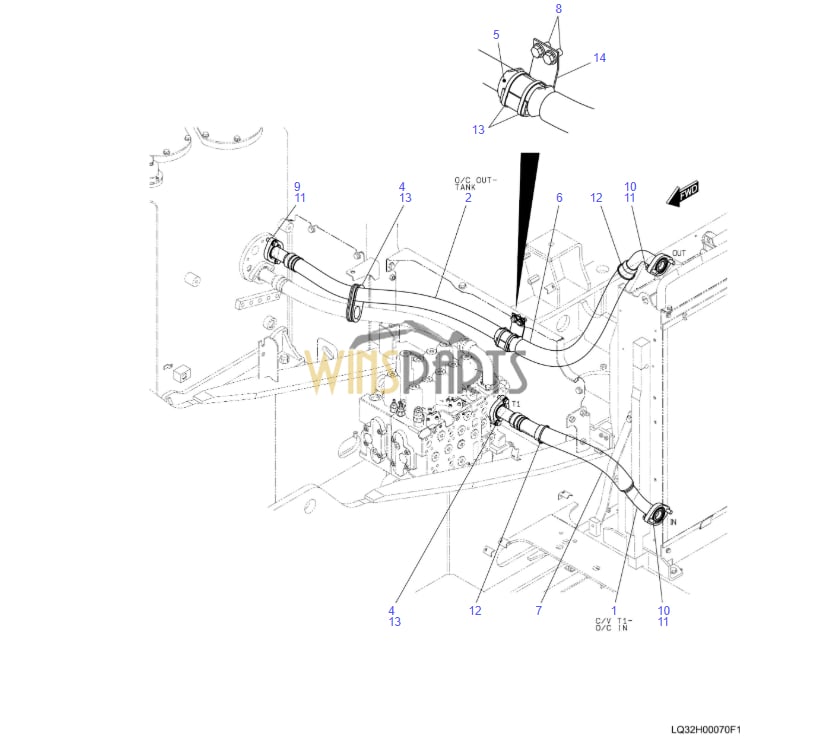

150-02_CKCM_D0002488478_1 2 LQ32H00070F1 HYD LINES, RETURN 1 P.150-02
1 LQ32H01209D2 HOSE 1
2 LQ32H01214D1 HOSE 1
3 YN32H01305D3 HOSE 1
4 HX33L04040DY HOSE 1
5 ZX22M08070 HOSE 1
6 YT32H01116D2 HOSE 1
7 ZX32M12092 HOSE ASSY 1
8 HH25R12012G4 CONNECTOR 1
9 ZH22X12000 CONNECTOR 1
10 ZH22X04000 CONNECTOR 2
11 ZH32X12000 ELBOW, 90 1
13 ZH42X12000 ELBOW, 45 1
14 2444T2711 TEE 1
15 HH55X08006G1 TEE 1
17 YN52S00107P1 SENSOR 1
17 YN52S00176P1 SENSOR 1 LL16405008-
. LQ16405001-
18 HM83C12035G1 SEMS-BOLT 4
19 ZD12P04800 O-RING 4
20 PY01P01043D5 CLIP 5
21 ZH22X08000 CONNECTOR 1
22 YN32H01317P1 ELBOW 1
23 HM83C12045G1 SEMS-BOLT 2
24 LQ32H01208D1 FLANGE 1
25 LQ32H01212P1 CONNECTOR 1
26 YN32H01315P1 RUBBER 1
.
1 LQ32H01202D1 HOSE 1
2 YN32H01306D5 HOSE 1
4 LC32H01191P1 GROMMET 1
5 YF32H01009P1 BUSHING 1
6 LQ32H01146D4 COVER 1
7 LQ32H01146D9 COVER 1
8 ZM73C12025 SEMS-BOLT 2
9 HM83C12035G1 SEMS-BOLT 4
10 HM83C12040G1 SEMS-BOLT 4
11 ZD12P04800 O-RING 4
12 PY01P01043D5 CLIP 2
13 PY01P01043D8 CLIP 3
14 LQ32H01206P1 SUPPORT 1
