YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…
LQ12B10163F1 LQ12B11082F1 ARM GROUP LINK BUCKET KOBELCO SK250-10 SK260LC-10
1 LQ12B11082F1 LINK, BUCKET 1
1-2 LQ12B01601P1 BUSHING 2
1-3 YN12B02403P1 BUSHING 2
2 LQ12B02086P1 LINK 1
3 LQ12B01519P1 LINK 1
4 LQ12B11207P1 PIN 2
5 LQ12B02053P1 PIN 1
6 LQ12B02052P1 PIN 1
7 HS18C20145G2 CAPSCREW 2
8 ZN18C20016 NUT 4
9 2445R220D6 SEAL, DUST 2
10 2445R220D4 SEAL, DUST 4
11 ZG91S02000 NIPPLE, GREASE 5
12 ZG91S04000 NIPPLE, GREASE 2
13 B16T0442D57 SHIM (0.5) 1
14 B16T0442D44 SHIM (0.9) 1
15 B16T0442D2 SHIM (1.6) 1
16 YN12B01122D1 SHIM (0.5) 2
17 YN12B01122D2 SHIM (0.9) 2
18 YN12B01122D3 SHIM (1.6) 2
19 YN12B01601D1 SHIM (2.0) 4
20 YN12B01602D1 SHIM (2.0) 2
.
1 LQ12B00956F1 ARM 1
1-1B LQ12B01843P1 BUSHING 2
1-1C YN12B02404P1 BUSHING 2
1-1D LQ12B11089P1 BUSHING 2
1-2A LQ12B02097P1 BLOCK, TAPPED 2
1-2B YN02B02285P1 BLOCK, TAPPED 4

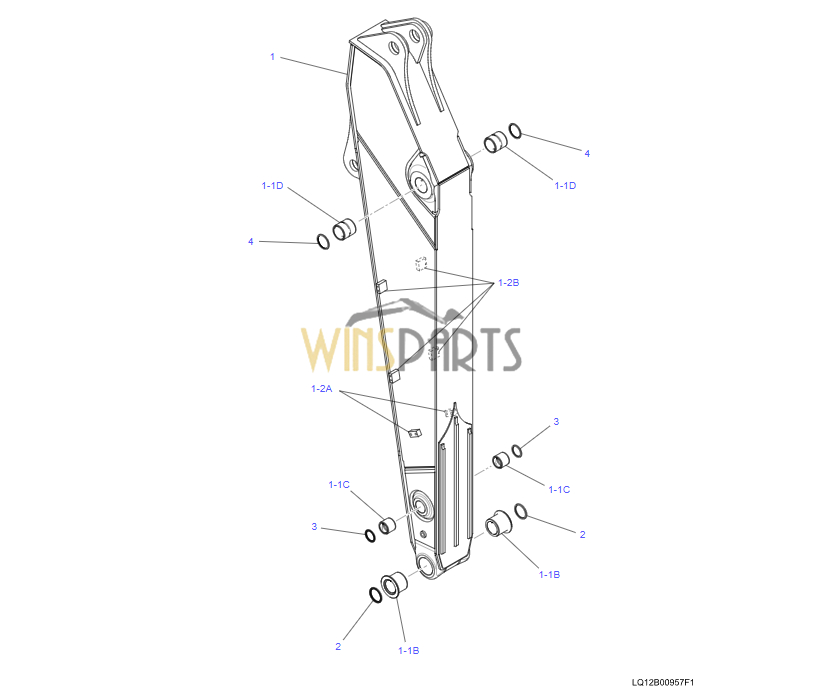

1 LQ12B10180F1 ARM 1 LL16405038-
. LQ16405001-
1-1B LQ12B01843P1 BUSHING 2
1-1C YN12B02404P1 BUSHING 2
1-1D LQ12B11089P1 BUSHING 2
1-2A LQ12B02097P1 BLOCK, TAPPED 2
1-2B YN02B02285P1 BLOCK, TAPPED 4
2 2445R220D6 SEAL, DUST 2
3 2445R220D3 SEAL, DUST 2
4 2445R138D8 SEAL, DUST 2

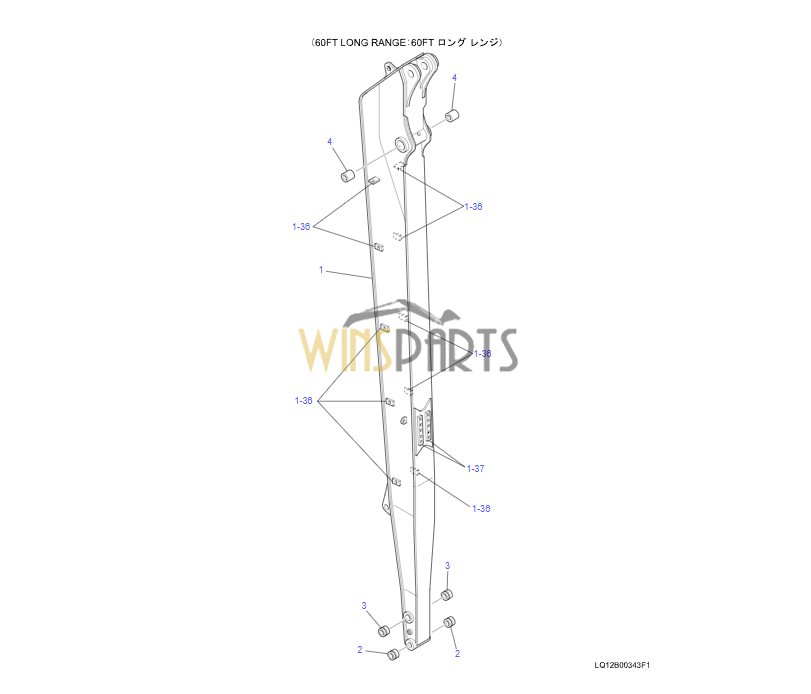

1 LQ12B00344P1 ARM 1
1-36 2416T9804 BLOCK, TAPPED 10
1-37 YN12B01102P1 BLOCK, TAPPED 2
2 LP12B01030P1 BUSHING 2
3 YW12B01042P1 BUSHING 2
4 LQ12B01038P1 BUSHING 2
. (60FT LONG RANGE)
.
2 YX12B01015P1 LINK 1
3 YX12B01016P1 LINK 1
7 HS18C14115G2 CAPSCREW 2
8 ZN18C14011 NUT 4
9 2445R220D2 SEAL, DUST 4
10 2445R138D3 SEAL, DUST 6
11 2445R220D6 SEAL, DUST 2
12 ZG91S02000 NIPPLE, GREASE 4
13 ZG91U02000 NIPPLE, GREASE 2
14 B16T0442D56 SHIM (0.5) 6
15 B16T0442D43 SHIM (0.9) 6
16 B16T0442D19 SHIM (1.6) 6
17 YN12B01610D1 SHIM (2.0) 6
18 2444R1117D100 HOSE 1
19 LQ12B11145P1 BRACKET 1
20 ZS18C14055 CAPSCREW 6
21 ZW16P14000 WASHER 6
22 YN12B01153P1 SHIM (6.0) 2
23 YN12B01152P1 SHIM (9.0) 2
24 YY12B01249F1 LINK, BUCKET 1
24-2 LP12B01031P1 BUSHING 2
24-3 LP12B01036P1 BUSHING 2
25 YN12B01786P1 PIN 2
26 LQ12B01346P1 PIN 1
27 YN12B01788P1 PIN 1
32 PV02B01073D5 CAP 4
33 2418R676D15 TUBE 1
34 PY01P01043D3 CLIP 1

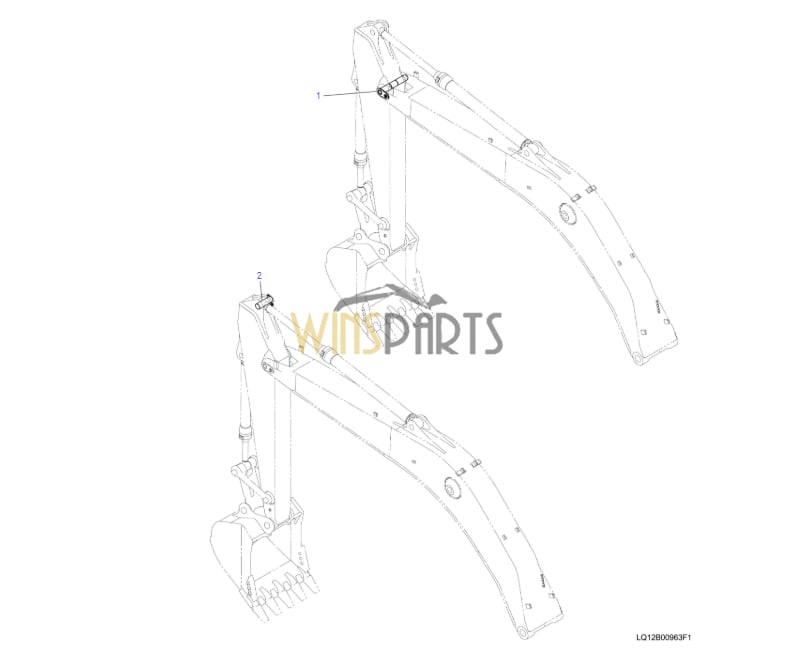

721-01_LQ12B00967F1_KCMU_D0002488578_1 1 LQ12B00967F1 ARM INSTAL 1 P.721-01
720-02_CKCM_D0002488579_1 2 LQ12B00962F1 ARM INSTAL 1 P.720-02
LQ12B00967F1 ARM INSTAL
1 LQ12B02106P2 PIN 1
2 LQ12B02099P1 PLATE 1
3 ZS18C16035 CAPSCREW 1
4 ZW16H16000 WASHER 1
5 YN02B01414D1 SHIM (2.0) 2
6 B16T0442D53 SHIM (0.5) 1
7 B16T0442D40 SHIM (0.9) 1
LQ12B00962F1 ARM INSTAL
1 LQ02B01763P1 PIN 1
2 HS18C20165G2 CAPSCREW 1
3 ZN18C20016 NUT 2
4 YN02B01414D1 SHIM (2.0) 2
5 B16T0442D53 SHIM (0.5) 1
6 B16T0442D40 SHIM (0.9) 1
7 B16T0442D14 SHIM (1.6)

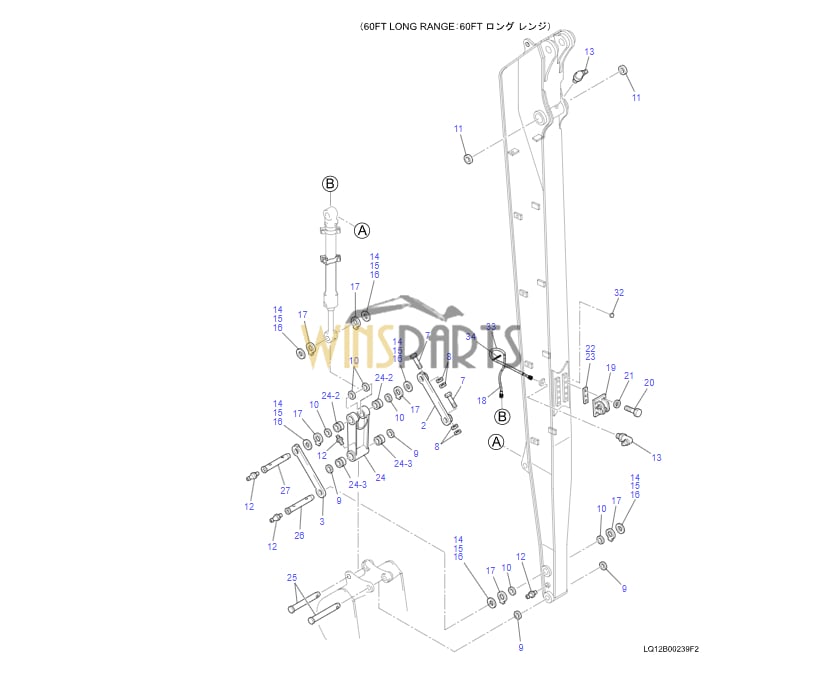

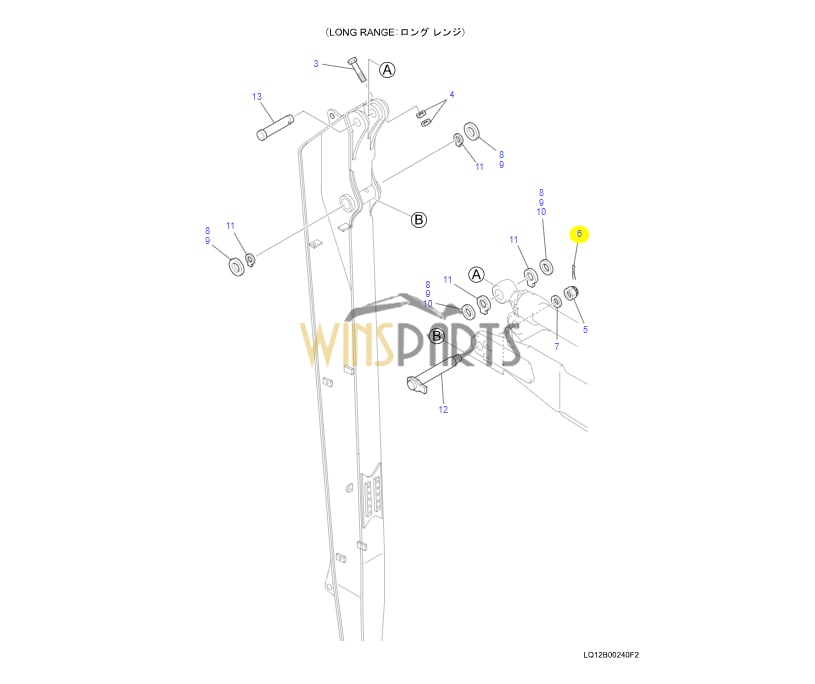

LQ12B00240F2 ARM INSTAL
3 HS18C16150G2 CAPSCREW 1
4 ZN18C16013 NUT 2
5 2420Z1047 NUT 1
6 ZP15D08100 SPLIT PIN 1
7 2418Z715 WASHER 1
8 B16T0442D53 SHIM (0.5) 2
9 B16T0442D40 SHIM (0.9) 2
10 B16T0442D14 SHIM (1.6) 1
11 YN02B01414D1 SHIM (2.0) 4
12 LQ12B01343P1 PIN 1
13 LQ02B01269P1 PIN 1

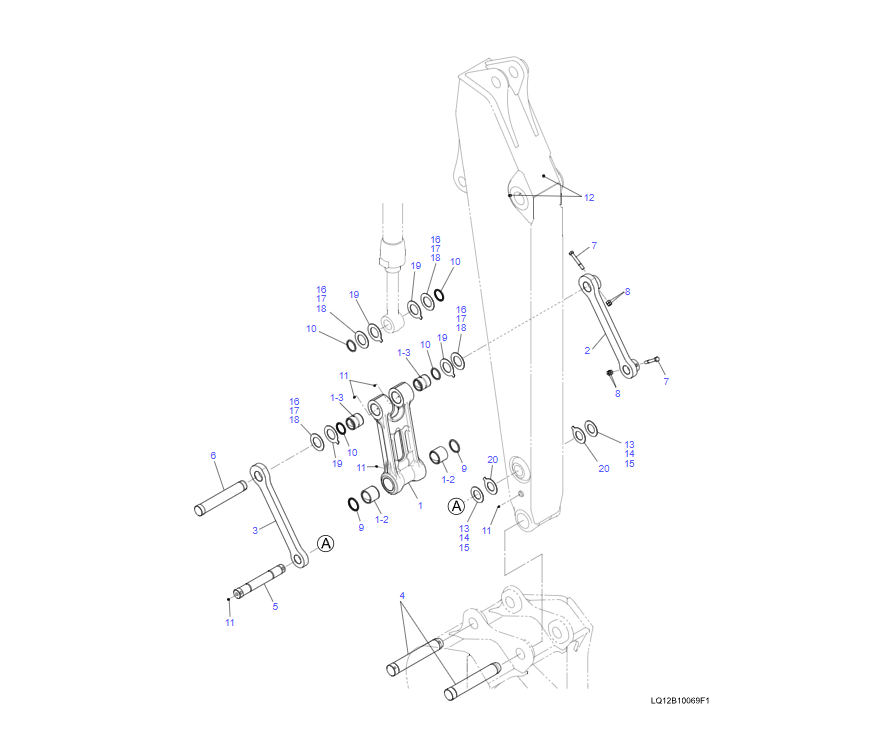

LQ12B10069F1 ARM GROUP
LQ12B00966F1 ARM INSTAL
.
1 LQ12B00967F1 ARM INSTAL 1 P.721-01
2 LQ12B00968F1 ARM INSTAL 1 P.721-02
1 LQ12B01996F1 LINK, BUCKET 1
1-2 LQ12B01601P1 BUSHING 2
1-3 YN12B02403P1 BUSHING 2
2 LQ12B02086P1 LINK 1
3 LQ12B01519P1 LINK 1
4 LQ12B01439P1 PIN 2
5 LQ12B02108P1 PIN 1
6 LQ12B02109P1 PIN 1
7 HS18C20145G2 CAPSCREW 2
8 ZN18C20016 NUT 4
9 2445R220D6 SEAL, DUST 2
10 2445R220D4 SEAL, DUST 4
11 ZG91S02000 NIPPLE, GREASE 5
12 ZG91S04000 NIPPLE, GREASE 2
13 B16T0442D57 SHIM (0.5) 1
14 B16T0442D44 SHIM (0.9) 1
15 B16T0442D2 SHIM (1.6) 1
16 YN12B01122D1 SHIM (0.5) 2
17 YN12B01122D2 SHIM (0.9) 2
18 YN12B01122D3 SHIM (1.6) 2
19 YN12B01601D1 SHIM (2.0) 4
20 YN12B01602D1 SHIM (2.0) 2
