LQ12B00960F1 BUCKET CYLINDER ASSY KOBELCO SK250-10 SK260LC-10

LQ12B00960F1 BUCKET CYLINDER ASSY KOBELCO SK250-10 SK260LC-10
　 .
LQ12B00959F1 CYLINDER INSTAL 1 P.730-01
LQ01V00047F2 CYLINDER, BUCKET 1
YN12B00983F1 CYLINDER INSTAL Not Service
YY12B00126F2 CYLINDER INSTAL 1 P.732-01
YX01V00005F7 CYLINDER, BUCKET 1 HC 732-00

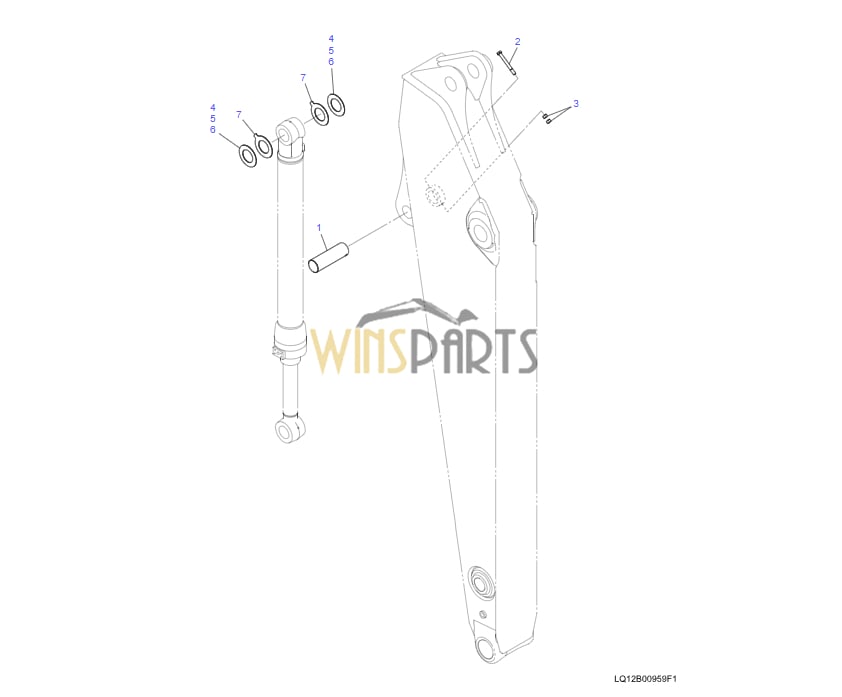

LQ12B00959F1 CYLINDER INSTAL
　 1 LQ12B02046P1 PIN 1
　 2 HS18C16150G2 CAPSCREW 1
　 3 ZN18C16013 NUT 2
　 4 YN12B01122D1 SHIM (0.5) 1
　 5 YN12B01122D2 SHIM (0.9) 1
　 6 YN12B01122D3 SHIM (1.6) 1
　 7 YN12B01601D1 SHIM (2.0) 2
YY12B00126F2 CYLINDER INSTAL
　 2 HS18C12115G2 CAPSCREW 1
　 3 ZN18C12010 NUT 2
　 4 B16T0442D56 SHIM (0.5) 1
　 5 B16T0442D43 SHIM (0.9) 1
　 6 B16T0442D19 SHIM (1.6) 1
　 7 YN12B01610D1 SHIM (2.0) 2
　 8 YN12B01785P1 PIN 1

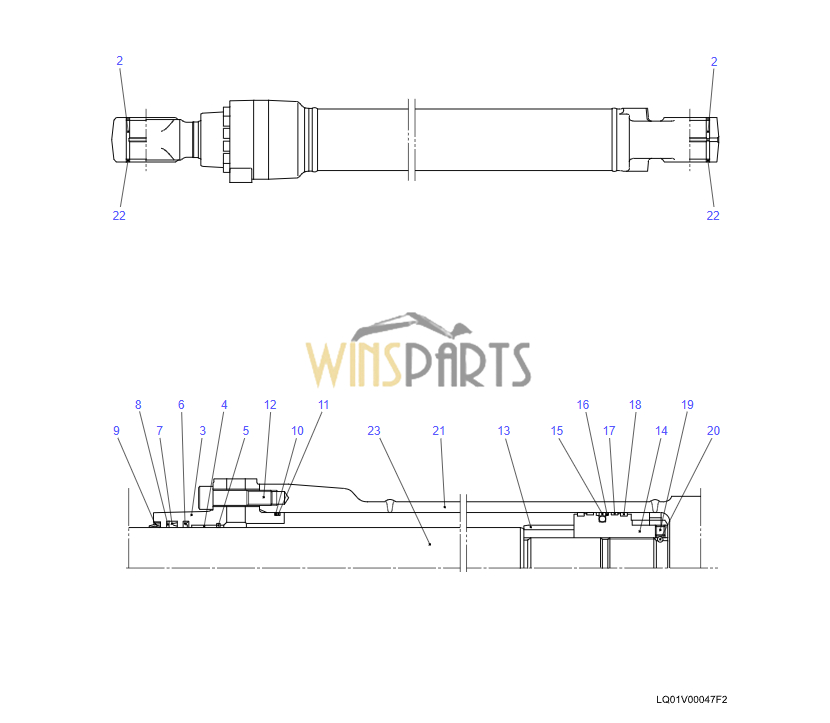

LQ01V00047F2 CYLINDER, BUCKET LQ01V00030R300 KOBELCO SK250-10 SK260LC-10
　 .
　 2 2438U959S22 BUSHING 2 R4, R5
　 3 YY01V00048S003 CYLINDER HEAD 1
　 4 2438U1106S17 BUSHING 1
　 5 2438U959S5 RING, SNAP 1
　 6 YN01V00151S006 RING, BUFFER 1 R1, R2
　 7 YN01V00151S007 RING 1 R1, R2
　 8 2438U959S8 RING, BACK-UP 1 R1, R2
　 9 LP01V00008S009 RING, WIPER 1 R1, R2
　 10 ZD12G12000 O-RING 1 R1, R2
　 11 2438U1102S12 RING, BACK UP 1 R1, R2
　 12 ZS23C16075 CAPSCREW 12
　 13 LQ01V00030S013 RING 1
　 14 LQ01V00030S014 PISTON 1
　 15 2438U675S20 RING, SEAL 1 R1, R3
　 16 YM01V00008S017 RING, BACK UP 2 R1, R3
　 17 LQ01V00030S017 RING 2 R1, R3
　 18 2438U675S28 RING 2 R1, R3
　 19 2438U999S21 SETSCREW 1
　 20 2436U330S16 BALL 1
　 21 NO P/No TUBE ASSY 1 R4
　 22 YN01V00153S022 RING 4 R4, R5
　 23 NO P/No ROD, PISTON 1 R5
　 .
　 LQ01V00030R300 REPAIR KIT 1 RK1
　 . (6, 7, 8, 9, 10, 11, 15)X1
　 . (16, 17, 18)X2
　 .
　 LQ01V00030R100 REPAIR KIT 1 RK2
　 . (6, 7, 8, 9, 10, 11)X1
　 .
　 LQ01V00030R200 REPAIR KIT 1 RK3
　 . (15)X1
　 . (16, 17, 18)X2
　 .
　 LQ01V00030R600 REPAIR KIT 1 RK4
　 . (2, 21)X1
　 . (22)X2
　 .
　 LQ01V00047R700 REPAIR KIT 1 RK5
　 . (2, 23)X1
　 . (22)X2

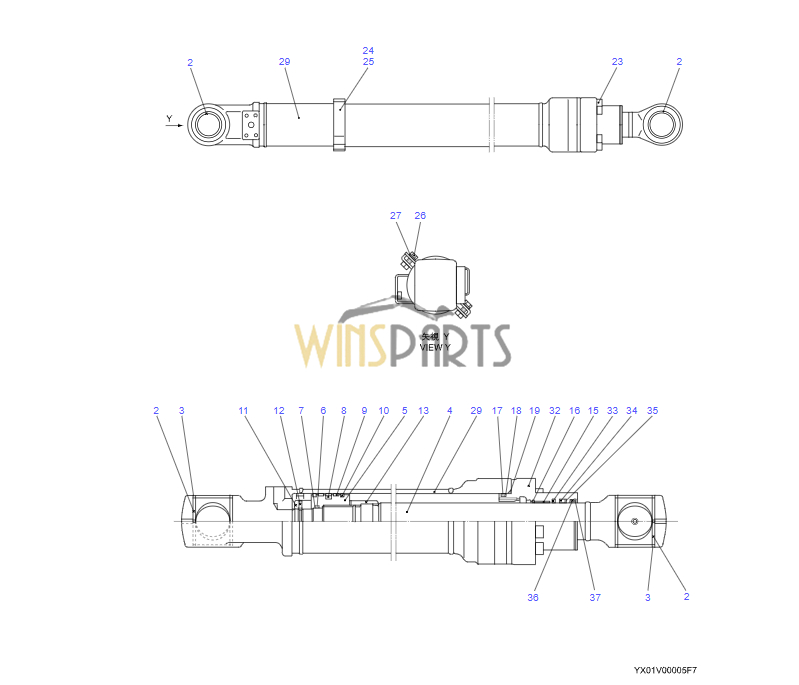

YX01V00005F7 BUCKET CYLINDER KOBELCO SK260LC-11 SK260NLC-11
　 .
　 2 2438U1097S2 BUSHING 2 R2, R3
　 3 2438U1097S29 SEAL 4
　 4 NO P/No ROD, PISTON 1 R2
　 5 YW01V00003S029 PISTON 1
　 6 YW01V00001S008 O-RING 1 R1, R5
　 7 YW01V00001S009 RING, BACK UP 2 R1, R5
　 8 YW01V00003S030 SEAL, PISTON 1 R1, R5
　 9 YW01V00001S032 RING, WEAR 2 R1, R5
　 10 YW01V00001S012 RING 2 R1, R5
　 11 YW01V00001S013 NUT 1
　 12 YN01V00001S014 SETSCREW 1
　 13 YX01V00005S013 RING 1
　 15 2438U1097S18 BUSHING 1
　 16 B38K0038E10 CLIP 1
　 17 ZD12G09000 O-RING 1 R4, R5
　 18 YW01V00001S020 RING, BACK UP 1 R4, R5
　 19 ZD12G09500 O-RING 1 R4, R5
　 23 ZS23C14065 CAPSCREW 8
　 24 YW01V00003S024 BRACKET 1
　 25 YW01V00003S025 BRACKET 1
　 26 ZS16C10030 CAPSCREW 2
　 27 ZW26X10000 LOCK WASHER 2
　 29 NO P/No TUBE, CYLINDER 1 R3
　 32 YX01V00005S032 COVER 1
　 33 YY01V00005S029 SEAL 1 R4, R5
　 34 YY01V00005S030 PACKING 1 R4, R5
　 35 YY01V00005S031 RING, BACK UP 1 R4, R5
　 36 YY01V00005S032 SEAL, DUST 1 R4, R5
　 37 B38K0039E11 RING, RETAINER 1
　 .
　 YX01V00005R200 REPAIR KIT 1 RK1
　 . (7, 9, 10)X2
　 . (6, 8)X1
　 .
　 YX01V00005R500 REPAIR KIT 1 RK2
　 . (2, 4)X1
　 .
　 YX01V00005R600 REPAIR KIT 1 RK3
　 . (2, 29)X1
　 .
　 YY01V00005R600 REPAIR KIT 1 RK4
　 . (17, 18, 19, 33, 34, 35, 36)X1
　 .
　 YY01V00005R700 REPAIR KIT 1 RK5
　 . (6, 8, 17, 18, 19, 33, 34, 35, 36)X1
　 . (7, 9, 10)X2

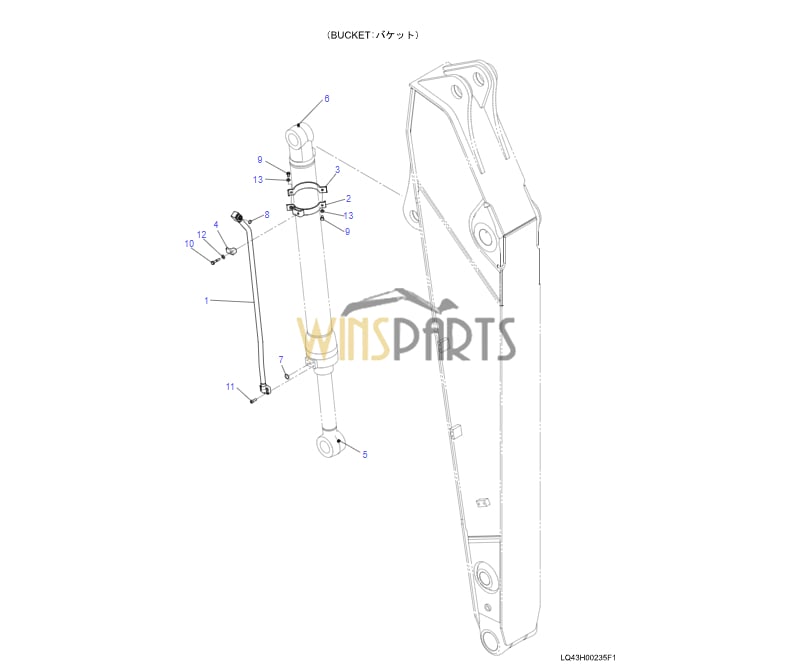

LQ43H00235F1 BUCKETHYD LINES, CYLINDER
　 1 LQ43H01258P1 TUBE 1
　 2 LQ43H01290P1 BAND 1
　 2 LQ43H01582P1 BAND 1
YN43H00009F1 HYD LINES, CYLINDER
　 1 YN43H01034P2 TUBE 1
　 2 YN43H01035P2 TUBE 1
　 3 YW43H01049P1 CLAMP 2
　 4 ZS18C10045 CAPSCREW 2
　 5 ZS28C10030 CAPSCREW 8
　 6 ZD12A01600 O-RING 2
　 7 ZD12P02600 O-RING 2
　 8 2444Z2002 CONNECTOR 1
　 9 ZG91U02000 NIPPLE, GREASE 1
　 10 ZW26X10000 LOCK WASHER 4
　 13 YW43H01081P1 BAND 1
　 14 YW43H01082P1 BAND 1
　 15 ZS18C10030 CAPSCREW 2
　 16 ZN18C10008 NUT 2
LQ43H00250F1 HYD LINES, ARM 2.98M
　 1 ZX50H12135 HOSE 1
　 2 LQ43H01264D1 HOSE 1
　 3 ZE13X16000 CLAMP, HALF 2
　 4 ZD12P03400 O-RING 1
　 5 HM83C12040G1 SEMS-BOLT

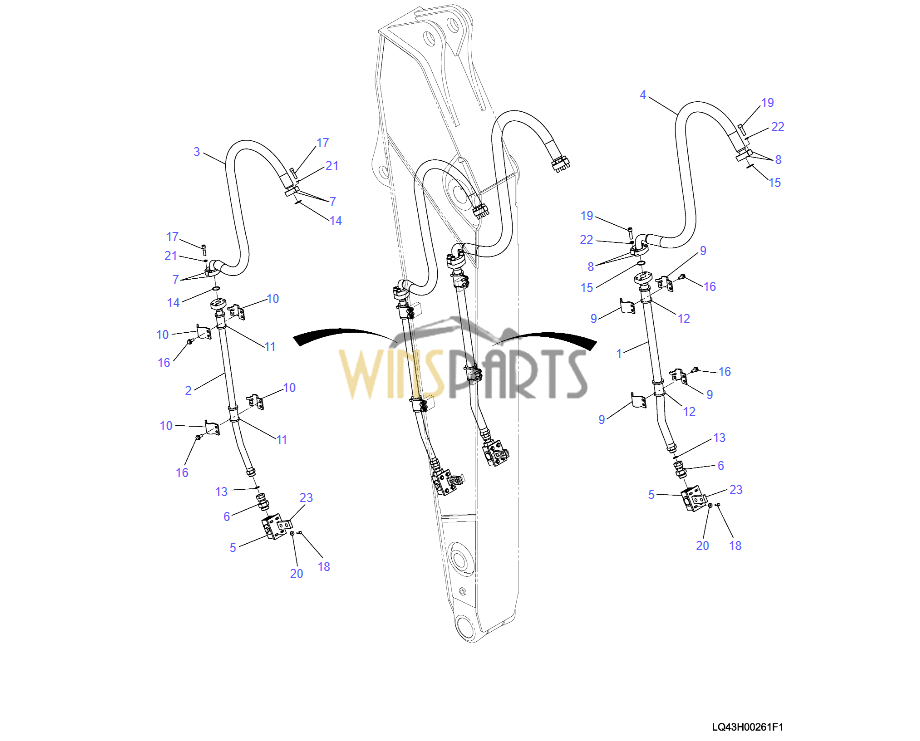

LQ43H00261F1 HYD TUBE LINES ARM YN25V00015F1 STOP VALVE KOBELCO SK250-10 SK260LC-10
　 1 LQ43H01471P1 TUBE 1
　 2 LQ43H01472P1 TUBE 1
　 3 YN43H01211D9 HOSE 1
　 4 LC43H01011DF HOSE 1
HC741-01_YN25V00015F1_KCMU_X_D0002495012_1 5 YN25V00015F1 VALVE, STOP 2
　 6 YN43H01005P1 CONNECTOR 2
　 7 ZE13X16000 CLAMP, HALF 4
　 8 ZE13X20001 CLAMP, HALF 4
　 9 YN42H02361P1 CLAMP 4
　 10 YN42H02363P1 CLAMP 4
　 11 YN43H01524P1 BUSHING 2
　 12 YN42H02321P1 BUSHING 2
　 13 ZD12A02100 O-RING 2
　 14 ZD12P03400 O-RING 2
　 15 ZD12P03800 O-RING 2
　 16 ZM73C12030 SEMS-BOLT 8
　 17 ZS28C12050 CAPSCREW 8
　 18 ZS18C08025 CAPSCREW 8
　 19 ZS28C14050 CAPSCREW 8
　 20 YN43H01151P1 WASHER 8
　 21 ZW26K12000 LOCK WASHER 8
　 22 ZW26K14000 LOCK WASHER 8
　 23 YN43H01663P1 BRACKET 2
YN43H01646F1 CONNECTOR ASSY
　 1 YN43H00004F1 CONNECTOR ASSY 2
　 1-1 2444P1744D3 CONNECTOR 1
　 1-2 2444T2406 PLUG 1
　 1-3 ZD12P03800 O-RING 1
LQ43H00263F1 HYD LINES, ARM
　 1 ZS18C16040 CAPSCREW 4
　 2 ZW16H16000 WASHER 4
YN25V00015F1 CYLINDER VALVE, STOP KOBELCO SK260LC-11 SK260NLC-11
　 1 YN25V01004P1 BLOCK 1
　 2 YN25V01005P1 SHAFT 1
　 3 ZR16X04000 RING, RETAINING 1
　 4 ZS28C06010 CAPSCREW 1
　 5 ZD12G03500 O-RING 1
　 6 ZD85G03500 RING, BACK-UP 1
　 7 ZD12G04000 O-RING 1
　 8 ZD75G04000 RING, BACK-UP 1
　 9 YY03H01145D1 SPACER 1
　 10 ZD11G04000 O-RING 2
