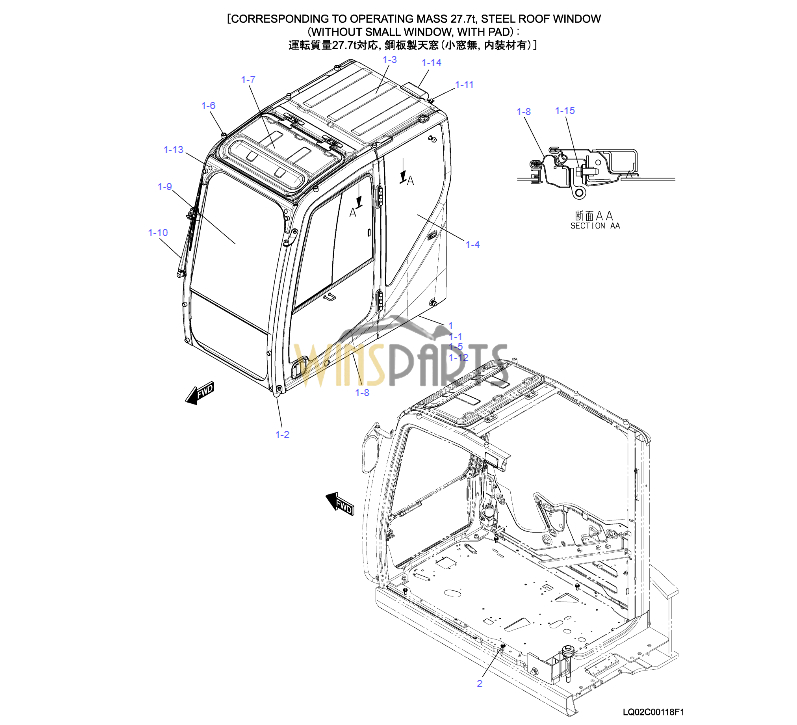

LQ02C00118F1 LQ02C00160F1 LQ02C00150P1 CAB KOBELCO SK250-10 SK260LC-10

LQ02C00118F1 LQ02C00160F1 LQ02C00150P1 CAB KOBELCO SK250-10 SK260LC-10
　 .
　 1 LQ02C00160F1 CAB ASSY 1
　 1-1 LQ02C00150P1 CAB ASSY 1
320-09_LQ02C00116F1_KCMU_D0002488503_1 1-2 LQ02C00116F1 CAB ASSY 1 P.320-09
320-02_CKCM_D0002488504_1 1-3 LQ02C01554F1 COVER ASSY 1 P.320-02
320-03_LQ02C01600F1_KCMU-03_D0002488505_1 1-4 LQ02C01600F1 GLASS 1 P.320-03
320-04_LQ14E00027F1_CKCM-01_D0002488506_1 1-5 LQ14E00027F1 HARNESS ASSY, CAB 1 P.320-04
320-05_CKCM_D0002488507_1 1-6 LQ02C01303F1 SEAL ASSY 1 P.320-05
320-06_LQ02C01619F1_ASIA-01_D0002488508_1 1-7 LQ02C01619F1 WINDOW, ROOF 1 P.320-06
320-07_LQ51C00008F1_CKCM-05_D0002488509_1 1-8 LQ51C00008F1 DOOR ASSY, CAB 1 P.320-07
320-11_LQ50C00001F1_KCM-EUR-01_D0002488510_1 1-9 LQ50C00001F1 WINDOW ASSY, FR. 1 P.320-11
320-09_CKCM_YT53C00015F1_D0002488511_1 1-10 YT53C00015F1 WIPER INSTAL 1 P.320-09
320-10_LQ54S00003F1_CKCM-02_D0002488512_1 1-11 LQ54S00003F1 RADIO 1 P.320-10
320-11_YY02C01165F1_CKCM-04_D0002488513_1 1-12 YY02C01165F1 SEAL ASSY 1 P.320-11
320-12_LQ80E00031F1_CKCM-03_D0002488514_1 1-13 LQ80E00031F1 LIGHT INSTAL 1 P.320-12
320-13_LQ11E00074F1_KCMU-02_D0002488515_1 1-14 LQ11E00074F1 HARNESS ASSY 1 P.320-13
　 1-15 LQ50C00001S014 BOLT 6
320-14_LQ02C00082F1_KCMU-02_D0002488516_1 2 LQ02C00082F1 CAB INSTAL 1 P.320-14

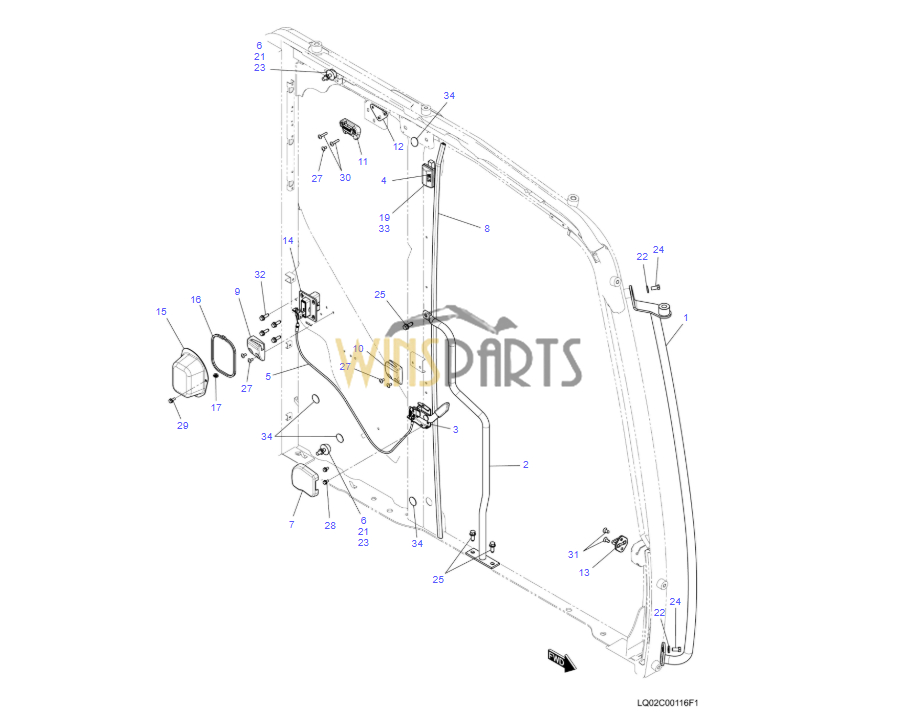

LQ02C00116F1 CAB ASSY KOBELCO SK250-10 SK260LC-10
　 .
　 1 LQ02C00031S001 HANDLE 1
　 2 LQ02C00031S002 HANDLE 1
　 3 LQ02C00113S003 LEVER ASSY 1
　 4 LQ02C00031S005 LABEL 1
　 5 LQ02C00031S006 CABLE ASSY 1
　 6 LQ02C01481P1 STOPPER 2
　 7 LQ02C00031S008 COVER 1
　 8 LQ02C00031S009 TRIM 1
　 9 LQ02C00031S010 HOLDER 1
　 10 LQ02C00031S011 HOLDER 1
　 11 LQ02C00031S012 HOLDER 1
　 12 LQ02C00031S013 HOLDER 1
　 13 LQ02C00031S014 STRIKER 1
　 14 LQ02C00113S014 CATCH ASSY, DOOR 1
　 15 LQ02C00031S016 COVER 1
　 16 LQ02C00031S017 SEAL 1
　 17 LQ02C00031S018 GROMMET 1
　 19 LQ02C00031S020 LIGHT, ROOM 1
　 21 LQ02C00031S022 WASHER 2
　 22 LQ02C00031S023 WASHER 2
　 23 LQ02C00031S024 NUT 2
　 24 LQ02C00031S025 BOLT 2
　 25 LQ02C00113S025 BOLT 3
　 27 LQ02C00031S030 SCREW 5
　 28 LQ02C00031S031 BOLT 2
　 29 LQ02C00031S032 BOLT 2
　 30 LQ02C00031S033 SCREW 2
　 31 LQ02C00031S034 SCREW 2
　 32 LQ02C00031S035 BOLT 4
　 33 LQ02C00031S037 SCREW, TAPPING 2
　 34 LQ02C00113S034 SEAL 4

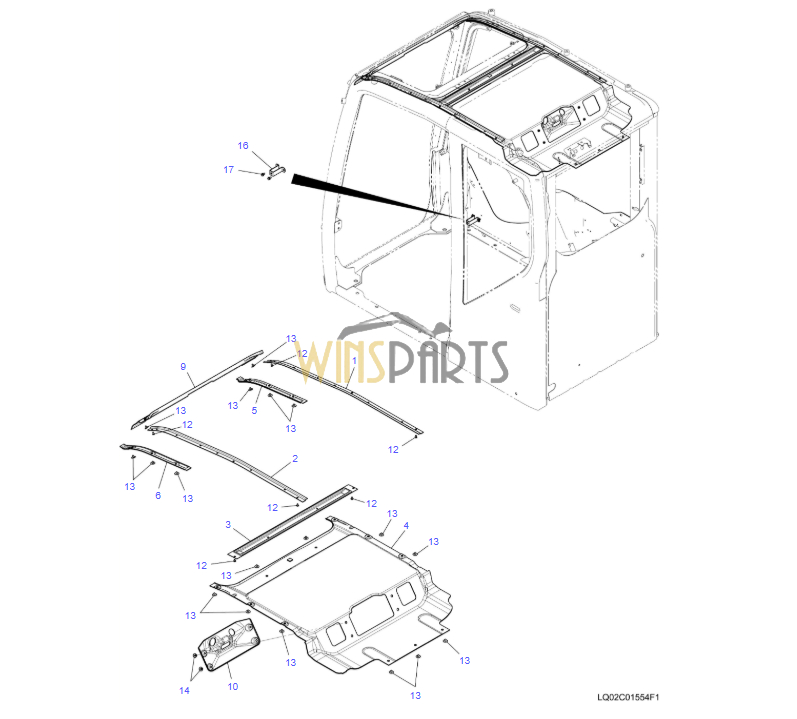

LQ02C01554F1 LQ02C01323S001 LQ02C01323S002 CAB COVER ASSY KOBELCO
　 .
　 1 LQ02C01323S001 COVER ASSY 1
　 2 LQ02C01323S002 COVER ASSY 1
　 3 LQ02C00032S001 PANEL 1
　 4 LQ02C00032S002 PAD 1
　 5 LQ02C00032S004 PAD 1
　 6 LQ02C00032S005 PAD 1
　 9 LQ02C00032S010 COVER 1
　 10 LQ02C00032S011 COVER 1
　 12 LQ02C00032S013 SCREW 6
　 13 LQ02C00032S014 CLIP 19
　 14 LQ02C00032S015 CLIP 4
　 16 LQ02C00032S017 BRACKET 1
　 17 LQ02C00031S031 BOLT 2

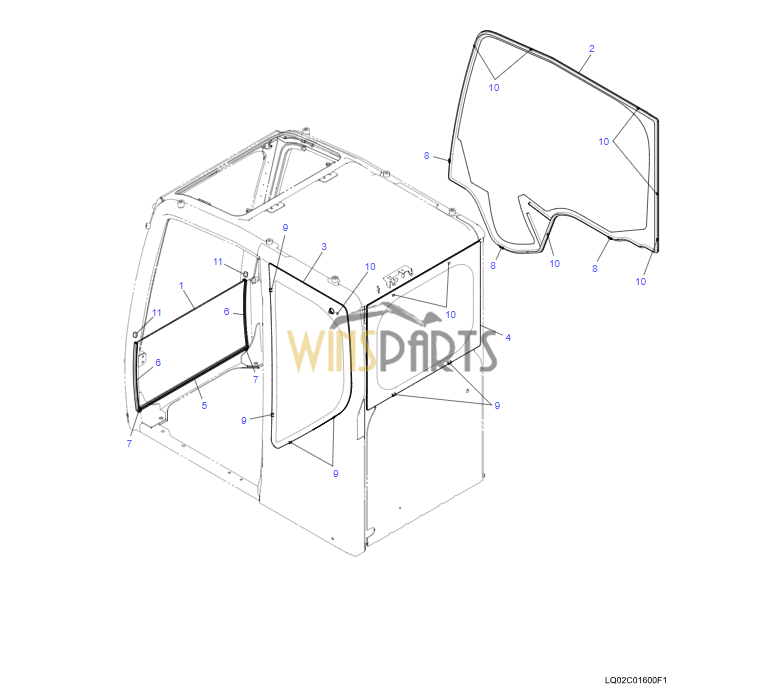

LQ02C01600F1 CAB GLASS KOBELCO SK250-10 SK260LC-10
　 .
　 1 LQ02C01301S001 GLASS 1
　 2 LQ02C01301S002 GLASS 1
　 2 LS02C01840S002 GLASS 1 LL16405260-
　 . LQ16405056-
　 3 LQ02C01301S003 GLASS 1
　 4 YT02C01705S004 GLASS 1
　 5 LQ02C01301S005 STRIP, WEATHER 1
　 6 LQ02C01301S006 SEAL 2
　 6 YY02C01242S005 SEAL 2 LL16405068-
　 . LQ16405004-
　 7 LQ02C01301S007 STOPPER 2
　 8 LQ02C01301S008 SPACER 3
　 9 LQ02C01301S009 SPACER 6
　 10 LQ02C01301S010 SPACER 9
　 11 LQ02C01555S011 SEAL

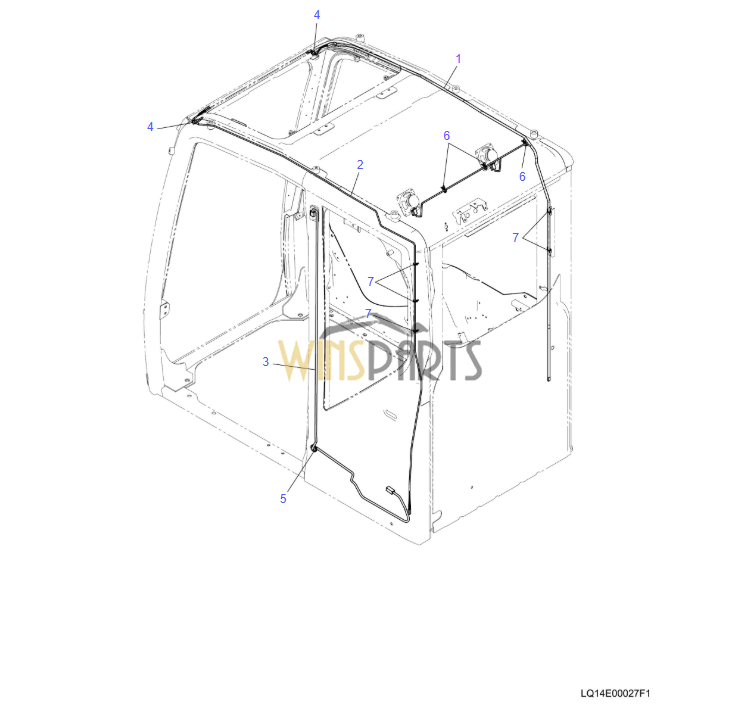

LQ14E00027F1 CAB HARNESS ASSY KOBELCO SK250-10 SK260LC-10
　 .
　 1 LQ14E00014S001 HARNESS 1
　 2 LQ14E00014S002 HARNESS 1
　 3 LQ14E00014S003 HARNESS 1
　 4 LQ14E00014S004 GROMMET 2
　 5 LQ14E00027S005 BUSHING 1
　 6 LQ14E00014S005 CLIP 3
　 7 LQ14E00014S006 CLIP
LQ02C01303F1 SEAL ASSY
　 1 LQ02C01303S001 CAP 4
　 2 LQ02C01303S002 SEAL

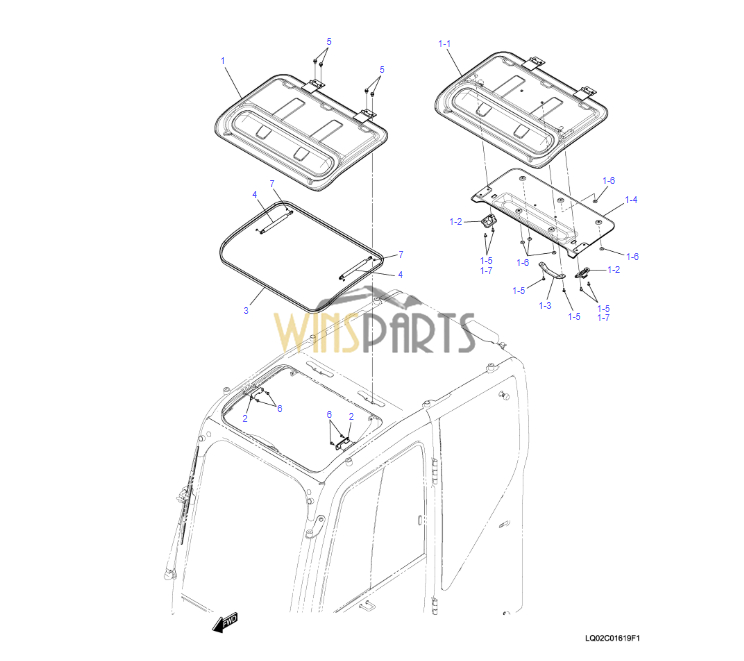

LQ02C01619F1 CAB WINDOW ROOF KOBELCO SK250-10 SK260LC-10
　 1 LQ02C01620F1 WINDOW, ROOF 1
　 1-1 LQ02C01620S001 WINDOW, ROOF 1
　 1-2 LQ02C01322S003 LOCK 2
　 1-3 LQ02C01322S004 HANDLE 1
　 1-4 LQ02C01322S002 PAD 1
　 1-5 LQ02C01320S007 SCREW 6
　 1-5 LQ02C01320S007 SCREW 2 LL16405023-
　 . LQ16405001-
　 1-6 LQ02C00032S014 CLIP 5
　 1-7 LQ50C00001S020 BOLT 4 LL16405023-
　 . LQ16405001-
　 2 LQ02C01320S006 BRACKET 2
　 3 LQ02C01320S002 STRIP, WEATHER 1
　 4 LQ02C01320S003 SPRING 2
　 5 LQ02C01304S005 BOLT 4
　 6 LQ02C01320S007 SCREW 4
　 6 LQ50C00001S013 BOLT 4 LL16405023-
　 . LQ16405001-
　 7 LQ02C01320S004 RING 4

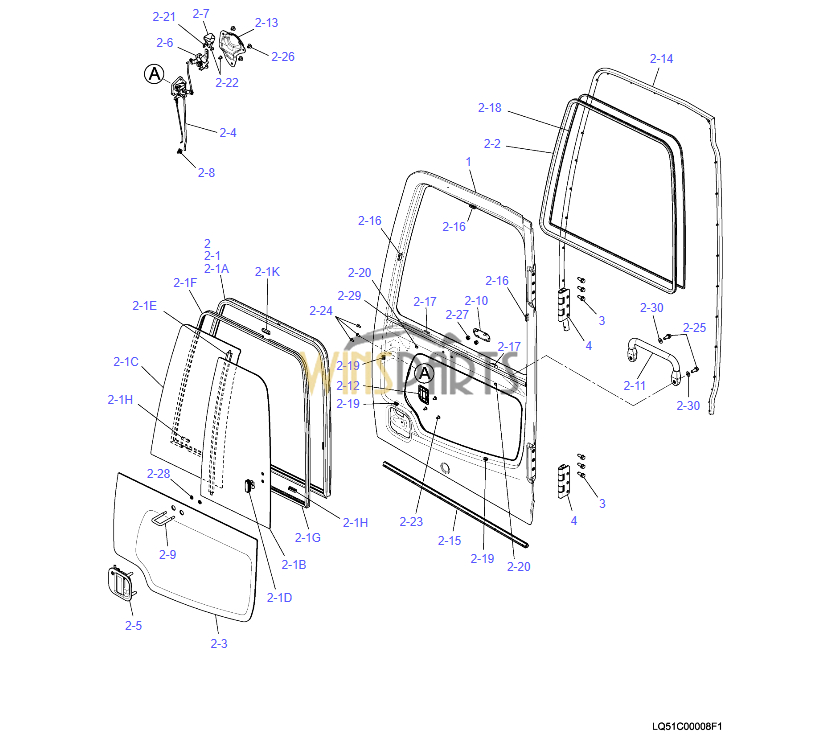

LQ51C00008F1 LQ51C00009F1 CAB DOOR ASSY KOBELCO SK250-10 SK260LC-10
　 1 LQ51C01004P1 PANEL ASSY 1
　 2 LQ51C00009F1 DOOR ASSY, CAB 1
　 2-1 LQ02C01558F1 SASH ASSY 1
　 2-1A LQ02C01558S001 FRAME ASSY 1
　 2-1B LQ02C01553S002 GLASS 1
　 2-1C LQ02C01558S003 GLASS 1
　 2-1D LQ02C01558S004 LOCK ASSY 1
　 2-1E LQ02C01315S005 SEAL 1
　 2-1F LQ02C01558S006 SEAL 1
　 2-1G LQ02C01558S007 SEAL 1
　 2-1H LQ02C01315S008 STOPPER 2
　 2-1K YT02C01704S011 STOPPER 1
　 2-2 LQ51C00003S002 TRIM 1
　 2-3 LQ51C00003S003 GLASS 1
　 2-4 LQ51C00003S004 LOCK ASSY 1
　 2-5 LQ51C00003S005 HANDLE ASSY 1
　 2-6 LQ51C00003S006 HANDLE ASSY 1
　 2-7 LQ51C00003S007 GRIP 1
　 2-8 LQ51C00003S008 CLIP 1
　 2-9 LQ51C01006P1 HOOK 1
　 2-10 LQ51C00003S010 GROMMET 1
　 2-11 LQ51C00003S011 HANDLE 1
　 2-12 LQ51C00003S012 COVER 1
　 2-13 LQ51C00003S013 COVER 1
　 2-14 LQ51C00003S014 STRIP, WEATHER 1
　 2-15 LQ51C00003S015 STRIP, WEATHER 1
　 2-16 LQ51C00003S016 SPACER 3
　 2-17 LQ51C00003S017 SPACER 2
　 2-18 LQ51C00003S018 SEAL 1
　 2-19 LQ02C01301S009 SPACER 3
　 2-20 LQ51C00003S020 SPACER 2
　 2-21 LQ51C00003S021 SCREW 2
　 2-22 LQ51C00003S022 SCREW 2
　 2-23 LQ02C00031S030 SCREW 3
　 2-24 LQ51C00003S024 SCREW 3
　 2-25 LQ02C00113S025 BOLT 2
　 2-26 LQ51C00003S026 RIVET 3
　 2-27 LQ51C00003S027 NUT 2
　 2-28 LQ51C00003S028 WASHER 2
　 2-29 LQ51C00003S029 TRIM 1
　 2-30 24100J11965S150 WASHER 2
　 2 LQ51C00010F1 DOOR ASSY, CAB 1
　 2-1 LQ02C01558F1 SASH ASSY 1
　 2-1A LQ02C01558S001 FRAME ASSY 1
　 2-1B LQ02C01553S002 GLASS 1
　 2-1C LQ02C01558S003 GLASS 1
　 2-1D LQ02C01558S004 LOCK ASSY 1
　 2-1E LQ02C01315S005 SEAL 1
　 2-1F LQ02C01558S006 SEAL 1
　 2-1G LQ02C01558S007 SEAL 1
　 2-1H LQ02C01315S008 STOPPER 2
　 2-1K YT02C01704S011 STOPPER 1
　 2-2 LQ51C00003S002 TRIM 1
　 2-3 LQ51C00003S003 GLASS 1
　 2-4 LQ51C00003S004 LOCK ASSY 1
　 2-5 LQ51C00003S005 HANDLE ASSY 1
　 2-6 LQ51C00003S006 HANDLE ASSY 1
　 2-7 LQ51C00003S007 GRIP 1
　 2-8 LQ51C00003S008 CLIP 1
　 2-9 LQ51C01006P1 HOOK 1
　 2-10 LQ51C00003S010 GROMMET 1
　 2-11 LQ51C00003S011 HANDLE 1
　 2-12 LQ51C00003S012 COVER 1
　 2-13 LQ51C00003S013 COVER 1
　 2-14 LQ51C00003S014 STRIP, WEATHER 1
　 2-15 LQ51C00003S015 STRIP, WEATHER 1
　 2-16 LQ51C00003S016 SPACER 3
　 2-17 LQ51C00003S017 SPACER 2
　 2-18 LQ51C00003S018 SEAL 1
　 2-19 LQ02C01301S009 SPACER 3
　 2-20 LQ51C00003S020 SPACER 2
　 2-21 LQ51C00003S021 SCREW 2
　 2-22 LQ51C00003S022 SCREW 2
　 2-23 LQ02C00031S030 SCREW 3
　 2-24 LQ51C00003S024 SCREW 3
　 2-25 LQ02C00031S026 BOLT 2
　 2-26 LQ51C00003S026 RIVET 3
　 2-27 LQ51C00003S027 NUT 2
　 2-28 LQ51C00003S028 WASHER 2
　 2-29 LQ51C00003S029 TRIM 1
　 2-30 24100J11965S150 WASHER 2
　 3 LQ50C00001S014 BOLT 6
　 4 LQ51C00004S006 HINGE 2

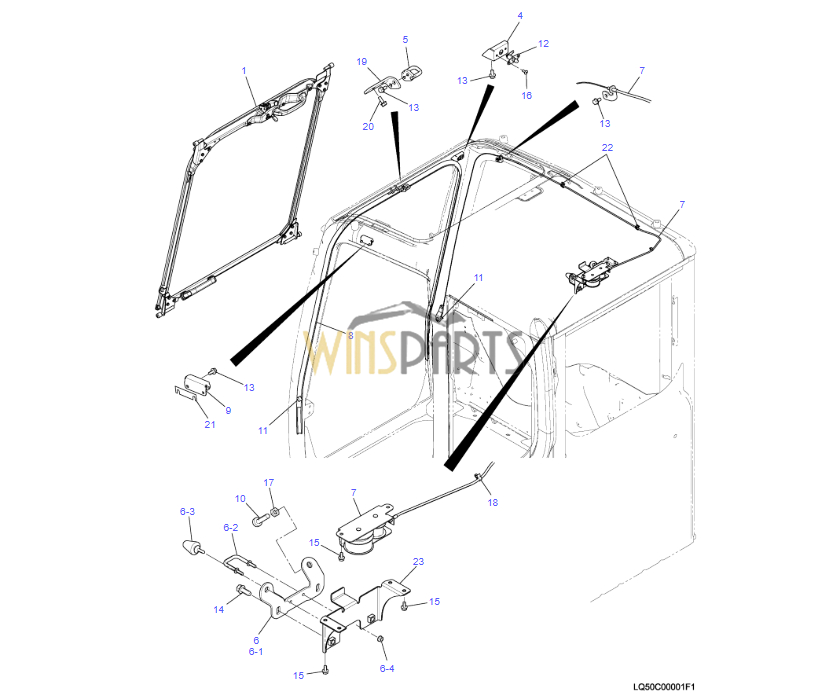

LQ50C00001F1 LQ50C00009F2 LQ50C00009S001 WINDOW ASSY KOBELCO SK250-10 SK260LC-10
　 .
　 1 LQ50C00009F2 WINDOW ASSY, FR. 1
　 1-1 LQ50C00009S001 FRAME ASSY 1
　 1-2 LQ50C00002S002 GLASS 1
　 1-3 LQ50C00002S009 COVER 1
　 1-4 LQ50C00002S005 BRACKET ASSY 1
　 1-5 LQ50C00002S006 BRACKET ASSY 1
　 1-8 LQ50C00002S010 LOCK ASSY 1
　 1-9 LQ50C00002S013 RUBBER 1
　 1-10 LQ50C00002S008 ROLLER 3
　 1-11 LQ50C00002S007 ROLLER 1
　 1-12 LQ50C00002S014 STOPPER 2
　 1-13 LQ50C00002S015 SPACER 1
　 1-14 LQ50C00002S011 HANDLE 2
　 1-15 LQ50C00001S013 BOLT 19
　 1-16 LQ50C00002S018 SCREW 2
　 1-16 YN02C00009S333 SETSCREW 2
　 1-17 LQ50C00002S016 SCREW 2
　 1-17 LQ50C00002S018 SCREW 2
　 1-18 LQ50C00009S018 BRACKET ASSY 1
　 1-19 LQ50C00009S019 BRACKET ASSY 1
　 4 LQ50C00001S004 BRACKET ASSY 1
　 5 LQ50C00001S005 STRIKER 1
　 6 LQ02C01316F1 STRIKER 1
　 6-1 LQ02C01316S001 BRACKET 1
　 6-2 LQ02C01316S002 HOOK 1
　 6-3 LQ02C01316S003 STOPPER 1
　 6-4 LQ02C01316S004 NUT 2
　 7 LQ50C00001S007 CABLE ASSY 1
　 8 LQ50C00001S008 SEAL 1
　 9 LQ50C00001S009 STOPPER 1
　 10 LQ50C00001S010 STOPPER 1
　 11 LQ50C00001S011 STOPPER 2
　 12 LQ50C00001S012 SWITCH 1
　 13 LQ50C00001S013 BOLT 7
　 14 LQ50C00001S014 BOLT 2
　 15 LQ02C00031S031 BOLT 6
　 16 LQ50C00001S016 SCREW 2
　 17 LQ50C00001S017 NUT 1
　 18 LQ50C00001S018 HOLDER 1
　 19 LQ50C00001S019 BRACKET 1
　 20 LQ50C00001S020 BOLT 2
　 21 LQ50C00001S021 SHIM 1
　 22 LQ50C00001S022 CLIP 2
　 23 LQ50C00008S003 BRACKET ASSY 1

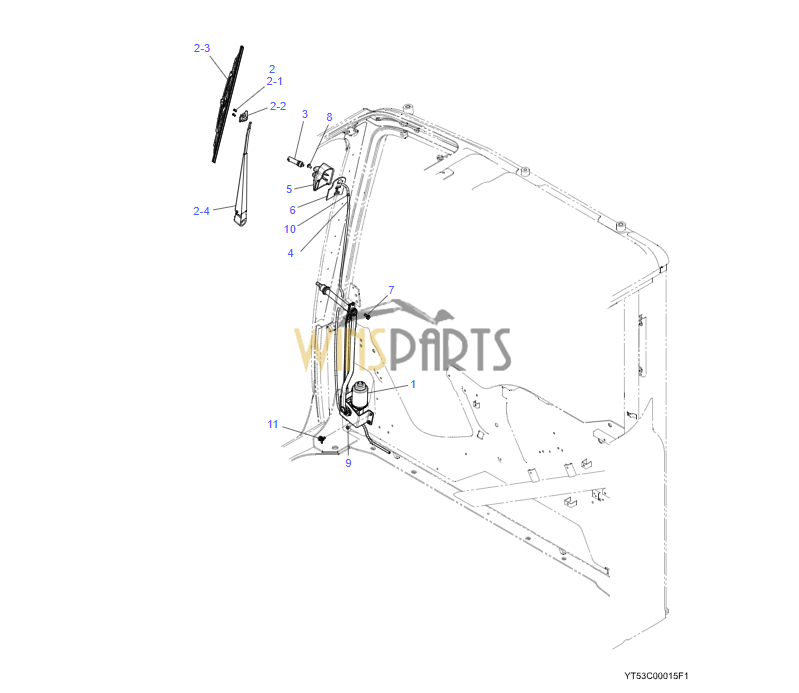

YT53C00015F1 LQ53C00003S001 MOTOR WIPER ARM ASSY KOBELCO
　 .
　 1 LQ53C00003S001 MOTOR, WIPER 1
　 2 LQ53C01001F1 ARM ASSY 1
　 2-1 LQ53C01001S001 SEMS-BOLT 2
　 2-2 LQ53C01001S002 GUIDE 1
　 2-3 LQ53C01001S003 BLADE, WIPER 1
　 2-4 LQ53C01001S004 ARM ASSY 1
　 3 LQ53C00003S003 NOZZLE 1
　 4 YT53C00015S004 TUBE 1
　 5 LQ53C00003S005 HOLDER 1
　 6 LQ53C00003S006 PACKING 1
　 7 LQ02C00031S032 BOLT 2
　 8 LQ02C00031S030 SCREW 1
　 9 LQ53C00003S009 NUT 4
　 10 LQ53C00003S012 CONNECTOR 1
　 11 LQ14E00014S005 CLIP 1
