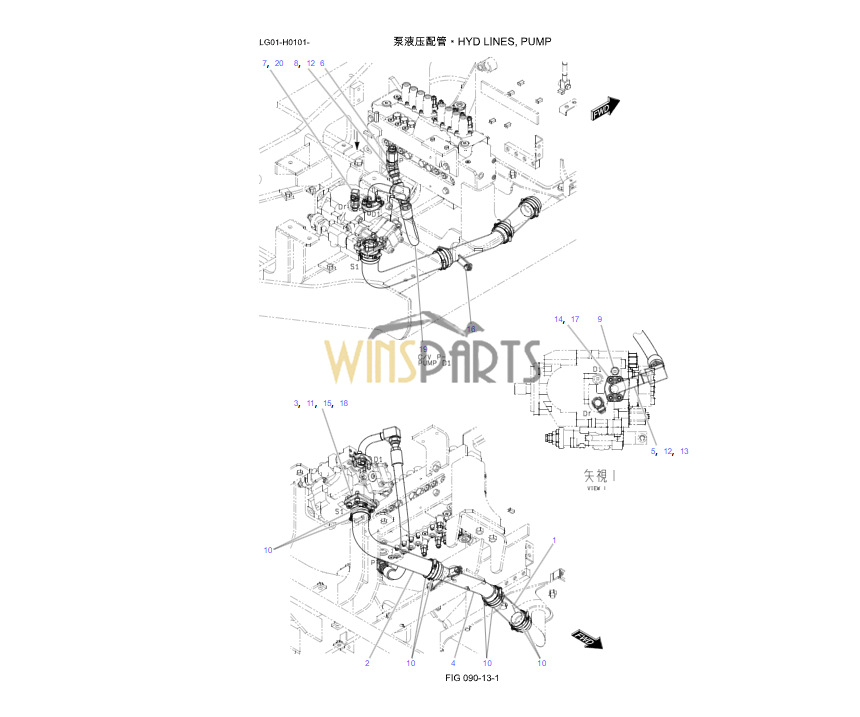

LG30H00001F1 HYDRAULIC LINES HYDRAULIC PUMP HOSE KOBELCO SK75-8 SK70SR-2 SK75SR-3

LG30H00001F1 HYDRAULIC LINES HYDRAULIC PUMP HOSE KOBELCO SK75-8 SK70SR-2 SK75SR-3
　 .
　 1 LG30H01015P1 HOSE 1
　 2 LG30H01011P1 HOSE 1
　 3 YT30H01001P1 TUBE 1
　 4 LG30H01014P1 TUBE 1
　 5 LG30H01005P1 TUBE 1
　 6 YA03H01018P1 CONNECTOR 1
　 7 2444Z3713 CONNECTOR 1
　 8 YB03H01118P1 CONNECTOR 1
　 9 ZE72X04000 PLUG 1
　 10 ZC16X06100 CLIP 8
　 11 ZD11G05500 O-RING 1
　 12 ZD12A01800 O-RING 2
　 13 ZD12P02600 O-RING 1
　 14 ZS28C10040 CAPSCREW 4
　 15 ZS28C12035 CAPSCREW 4
　 16 ZM73C10020 SEMS-BOLT 2
　 17 ZW26K10000 LOCK WASHER 4
　 18 ZW26K12000 LOCK WASHER 4
　 19 ZX20H12076 HOSE 1
　 20 ZH32X08000 ELBOW 1

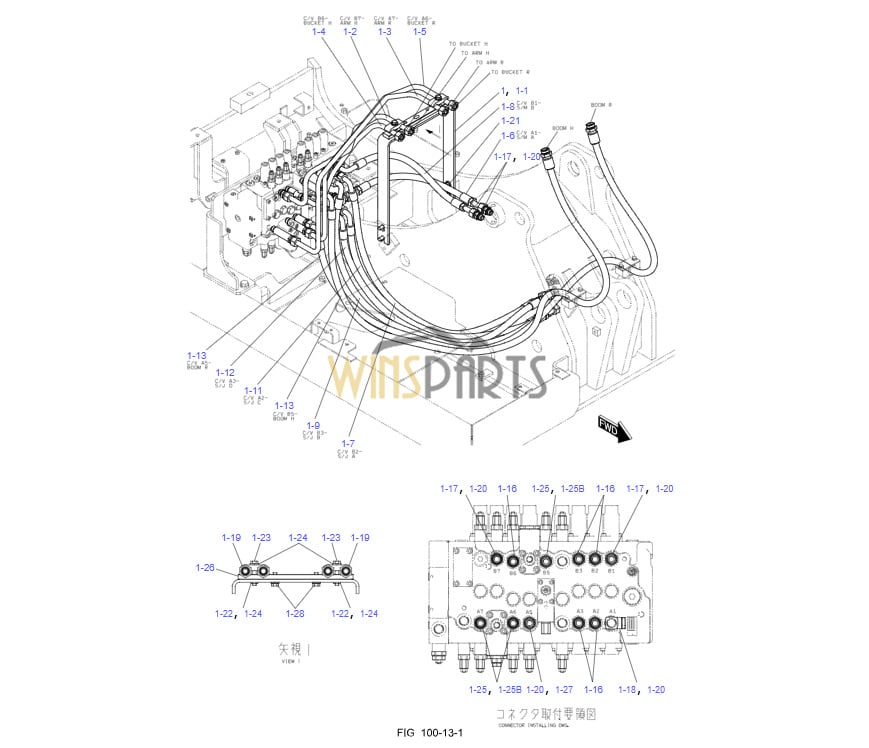

LG03H00008F1 LG03H00002F1 HYD LINES, UPP HYDRAULIC TUBE KOBELCO SK75-8 SK70SR-2
　 .
　 1 LG03H00002F1 HYD LINES, UPP 1
　 1-1 LG03H01024P1 BRACKET 1
　 1-2 LG03H01025P1 TUBE 1
　 1-3 LG03H01026P1 TUBE 1
　 1-4 LG03H01027P1 TUBE 1
　 1-5 LG03H01028P1 TUBE 1
　 1-6 YT02H01232DB HOSE 1
　 1-7 YT03H01025DE HOSE 1
　 1-8 YT03H01025DK HOSE 1
　 1-9 YT03H01025D9 HOSE 1
　 1-11 YT03H01025D1 HOSE 1
　 1-12 YT03H01025D2 HOSE 1
　 1-13 YT03H01026D3 HOSE 2
　 1-16 LG03H01013P1 CONNECTOR 5
　 1-17 ZA28F18008 CONNECTOR 4
　 1-18 ZA38F18008 ELBOW 1
　 1-19 ZC37M18112 CLAMP 2
　 1-20 ZD12P01800 O-RING 6
　 1-21 ZM73C12030 SEMS-BOLT 4
　 1-22 ZN18C10008 NUT 2
　 1-23 ZS18C10060 CAPSCREW 2
　 1-24 ZW16H10000 WASHER 4
　 1-25 PY02H01001P1 CONNECTOR 3
　 1-25B ZD12P01800 O-RING 1
　 1-26 LG03H01031P1 BLOCK 1
　 1-27 ZA29F18008 CONNECTOR 1
　 1-28 ZM73C10030 SEMS-BOLT 2
　 2 LG03H00006F1 HYD LINES, UPP 1
　 2-1 ZE72X08000 PLUG 1
　 3 LG03H00009F1 HYD LINES, UPP 1
　 3-1 ZE72X08000 PLUG 2
　 4 YT03H00074F1 HYD LINES, UPP 1
　 4-1 YN03H01075P1 BUSHING 2
　 4-2 YT03H01112P1 PLATE 2
　 4-3 ZM73C08020 SEMS-BOLT 4
LG03H00002F1 LG03H00010F1 HYD LINES, UPP KOBELCO SK75UR-5 SK80MSR-2 SK80CS-2
　 .
　 1 LG03H00002F1 HYD LINES, UPP 1
　 1-1 LG03H01024P1 BRACKET 1
　 1-2 LG03H01025P1 TUBE 1
　 1-3 LG03H01026P1 TUBE 1
　 1-4 LG03H01027P1 TUBE 1
　 1-5 LG03H01028P1 TUBE 1
　 1-6 YT02H01232DB HOSE 1
　 1-7 YT03H01025DE HOSE 1
　 1-8 YT03H01025DK HOSE 1
　 1-9 YT03H01025D9 HOSE 1
　 1-11 YT03H01025D1 HOSE 1
　 1-12 YT03H01025D2 HOSE 1
　 1-13 YT03H01026D3 HOSE 2
　 1-16 LG03H01013P1 CONNECTOR 5
　 1-17 ZA28F18008 CONNECTOR 4
　 1-18 ZA38F18008 ELBOW 1
　 1-19 ZC37M18112 CLAMP 2
　 1-20 ZD12P01800 O-RING 6
　 1-21 ZM73C12030 SEMS-BOLT 4
　 1-22 ZN18C10008 NUT 2
　 1-23 ZS18C10060 CAPSCREW 2
　 1-24 ZW16H10000 WASHER 4
　 1-25 PY02H01001P1 CONNECTOR 3
　 1-26 LG03H01031P1 BLOCK 1
　 1-27 ZA29F18008 CONNECTOR 1
　 1-28 ZM73C10030 SEMS-BOLT 2
　 2 LG03H00003F1 HYD LINES, UPP 1
　 2-1 LG03H01029P1 TUBE 1
　 2-2 LG03H01030P1 TUBE 1
　 2-3 LG03H01010P1 TUBE 1
　 2-4 LG42H01017D2 HOSE 1
　 2-5 LG03H01008P1 PLATE 1
　 2-6 ZA28F22008 CONNECTOR 1
　 2-8 ZC27M22012 CLAMP 1
　 2-9 ZM73C12025 SEMS-BOLT 2
　 2-11 ZS18C10055 CAPSCREW 1
　 2-13 ZN18C10008 NUT 2
　 2-15 ZW16H10000 WASHER 4
　 2-16 LG03H01016P1 CLAMP 1
　 2-17 ZD12P01800 O-RING 1
　 2-18 ZS18C10070 CAPSCREW 1
　 3 LG03H00009F1 HYD LINES, UPP 1
　 3-1 ZE72X08000 PLUG 2
　 4 YT03H00074F1 HYD LINES, UPP 1
　 4-1 YN03H01075P1 BUSHING 2
　 4-2 YT03H01112P1 PLATE 2
　 4-3 ZM73C08020 SEMS-BOLT 4

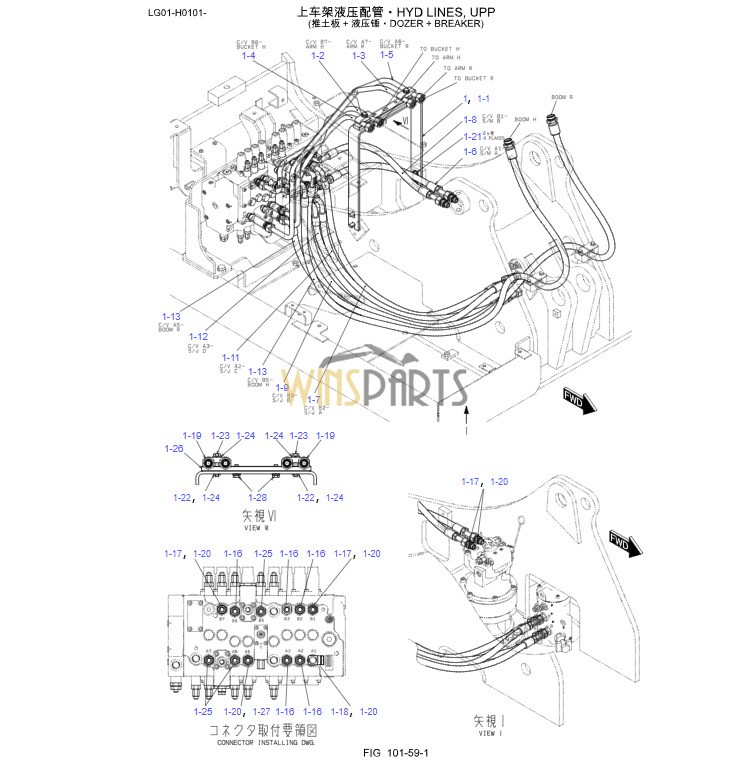

LG03H00001F1 LG03H00002F1 DOZER BREAKER HYD LINES, UPP KOBELCO SK75-8 SK70SR-2
　 .
　 1 LG03H00002F1 HYD LINES, UPP 1
　 1-1 LG03H01024P1 BRACKET 1
　 1-2 LG03H01025P1 TUBE 1
　 1-3 LG03H01026P1 TUBE 1
　 1-4 LG03H01027P1 TUBE 1
　 1-5 LG03H01028P1 TUBE 1
　 1-6 YT02H01232DB HOSE 1
　 1-7 YT03H01025DE HOSE 1
　 1-8 YT03H01025DK HOSE 1
　 1-9 YT03H01025D9 HOSE 1
　 1-11 YT03H01025D1 HOSE 1
　 1-12 YT03H01025D2 HOSE 1
　 1-13 YT03H01026D3 HOSE 2
　 1-16 LG03H01013P1 CONNECTOR 5
　 1-17 ZA28F18008 CONNECTOR 4
　 1-18 ZA38F18008 ELBOW 1
　 1-19 ZC37M18112 CLAMP 2
　 1-20 ZD12P01800 O-RING 6
　 1-21 ZM73C12030 SEMS-BOLT 4
　 1-22 ZN18C10008 NUT 2
　 1-23 ZS18C10060 CAPSCREW 2
　 1-24 ZW16H10000 WASHER 4
　 1-25 PY02H01001P1 CONNECTOR 3
　 1-26 LG03H01031P1 BLOCK 1
　 1-27 ZA29F18008 CONNECTOR 1
　 1-28 ZM73C10030 SEMS-BOLT 2
　 2 LG03H00003F1 HYD LINES, UPP 1
　 2-1 LG03H01029P1 TUBE 1
　 2-2 LG03H01030P1 TUBE 1
　 2-3 LG03H01010P1 TUBE 1
　 2-4 LG42H01017D2 HOSE 1
　 2-5 LG03H01008P1 PLATE 1
　 2-6 ZA28F22008 CONNECTOR 1
　 2-8 ZC27M22012 CLAMP 1
　 2-9 ZM73C12025 SEMS-BOLT 2
　 2-11 ZS18C10055 CAPSCREW 1
　 2-13 ZN18C10008 NUT 2
　 2-15 ZW16H10000 WASHER 4
　 2-16 LG03H01016P1 CLAMP 1
　 2-17 ZD12P01800 O-RING 1
　 2-18 ZS18C10070 CAPSCREW 1
　 3 LG03H00004F1 HYD LINES, UPP 1
　 3-1 LG03H01007D1 HOSE 1
　 3-2 YT03H01144D6 HOSE 1
　 3-3 2444Z2449 CONNECTOR 2
　 3-4 ZA28F12006 CONNECTOR 2
　 3-5 ZD12P01400 O-RING 2
　 4 YT03H00074F1 HYD LINES, UPP 1
　 4-1 YN03H01075P1 BUSHING 2
　 4-2 YT03H01112P1 PLATE 2
　 4-3 ZM73C08020 SEMS-BOLT 4

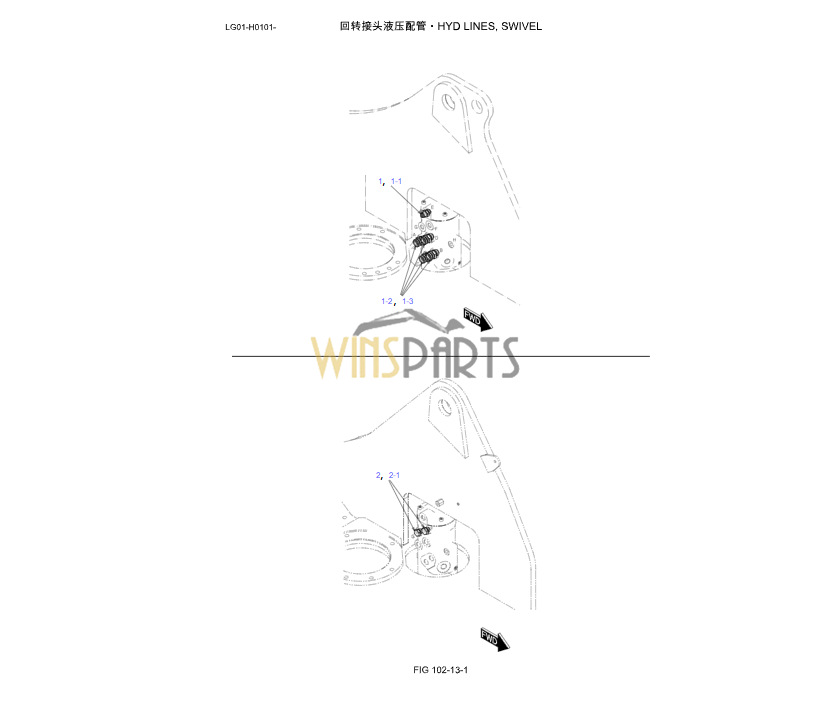

LG19H00002F1 LG19H00003F1 HYD LINES, SWIVEL
　 .
　 1 LG19H00002F1 HYD LINES, SWIVEL 1
　 1-1 ZH22X06000 CONNECTOR 1
　 1-2 ZA28F18008 CONNECTOR 4
　 1-3 ZD12P01800 O-RING 4
　 2 YT19H00034F1 HYD LINES, SWIVEL 1
　 2-1 ZE72X06000 PLUG 2

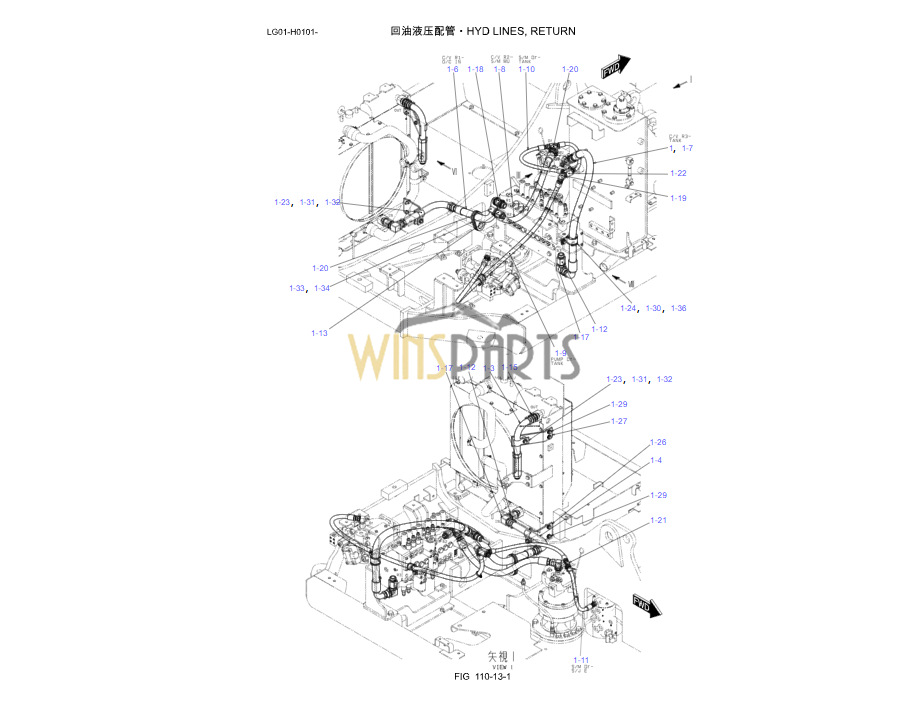

LG32H00004F1 LG32H00002F1 HYDRAULIC LINES, RETURN KOBELCO SK75-8 SK70SR-2 SK75SR-3
　 .
　 1 LG32H00002F1 HYD LINES, RETURN 1
　 1-1 2436R576F1 VALVE, CHECK 1
　 1-2 2436R576F5 VALVE, CHECK 1
　 1-3 YT32H01103P1 TUBE 1
　 1-4 LG32H01003P1 TUBE 1
　 1-5 ZC46X31014 CLIP 1
　 1-6 YT32H01102D8 HOSE 1
　 1-7 LG32H01006D1 HOSE 1
　 1-8 ZX22M12076 HOSE 1
　 1-9 ZX22M08165 HOSE 1
　 1-10 ZX22M06066 HOSE ASSY 1
　 1-11 ZX22M06044 HOSE ASSY 1
　 1-12 HH25R16016G1 CONNECTOR 2
　 1-13 YA03H01018P1 CONNECTOR 1
　 1-14 YT32H01101P1 CONNECTOR 1
　 1-15 2444Z2760 CONNECTOR 1
　 1-16 ZD12P02900 O-RING 1
　 1-17 HH35X16016G1 ELBOW 3
　 1-18 HH45X16016G1 ELBOW 1
　 1-19 ZH32X08000 ELBOW 1
　 1-20 ZH32X12000 ELBOW, 90 2
　 1-21 ZH52X06000 TEE 1
　 1-22 2444Z2358 TEE 1
　 1-23 YT32H01098P1 CLAMP 2
　 1-24 YX32H01011P1 BUSHING 1
　 1-25 YJ42H01141P1 BUSHING 1
　 1-26 LG32H01001P1 SUPPORT 1
　 1-27 YT32H01099P1 SUPPORT 1
　 1-28 ZM73C10020 SEMS-BOLT 1
　 1-29 ZM73C10025 SEMS-BOLT 4
　 1-30 ZM73C12025 SEMS-BOLT 1
　 1-31 ZS18C10050 CAPSCREW 2
　 1-32 ZW16H10000 WASHER 2
　 1-33 YF30H01023P1 GROMMET 1
　 1-34 PY01P01043D8 CLIP 2
　 1-35 YN13E01375P1 CLIP 1
　 1-36 ZC45X46014 CLIP 1
　 2 LG32H00005F1 HYD LINES, RETURN 1
　 2-1 HH35X16016G1 ELBOW 1
　 2-2 YT32H01102D3 HOSE 1
　 2-3 YX32H01011P1 BUSHING 2
　 2-4 PY01P01043D3 CLIP 1
　 2-5 PY01P01043D8 CLIP 2
　 2-6 YN13E01375P1 CLIP 1
