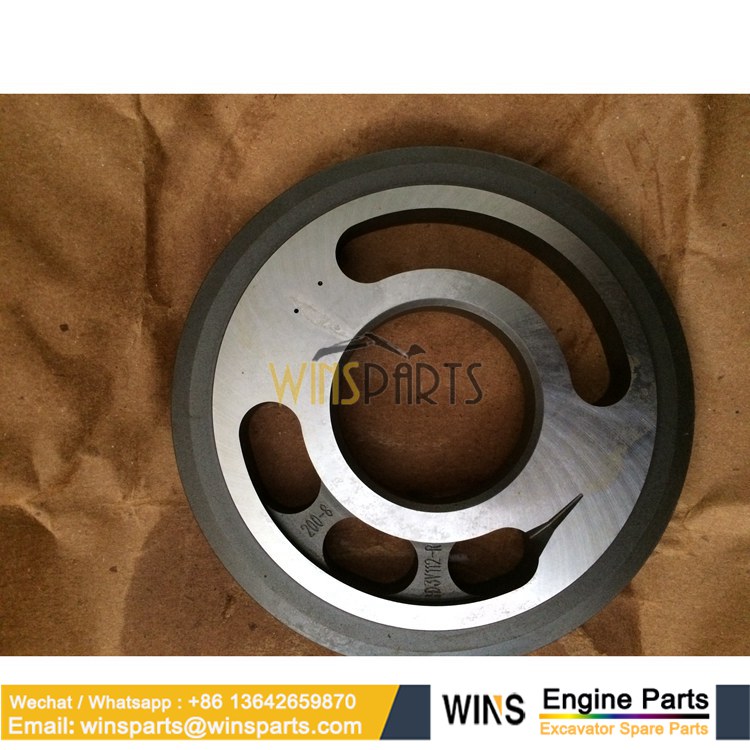

LJ014500 LJ014490 TR00047 TJ00765 160113A1 Cylinder block Valve plate CASE
$1.00
LJ014500 LJ014490 TR00047 TJ00765 160113A1 PISTON SHOE PLATE Cylinder block Valve plate HYDRAULIC PUMP CASE CX240BLR CX250C CX210LR CX290 CX210N CX235C Excavator Spare Parts
Number:LJ014500 LJ014490 TR00047 TJ00765 160113A1
Type: PISTON SHOE PLATE Cylinder block Valve plate HYDRAULIC PUMP
Utend:CASE CX240BLR CX250C CX210LR CX290 CX210N CX235C
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: New.Holland/KOBELCO/HITACHI
160033A1 160034A1 DRIVE SHAFT HYDRAULIC PUMP Case
160113A1 HYDRAULIC PUMP PLATE Case
Cylinder block Valve plate CASE 210B CS240B CX250C HANDOK HYDRAULIC Parts
Kawasaki Hydraulic Cylinder block Valve plate CASE 210B CS240B CX250C Parts
KRJ10290 LR00552 HYDRAULIC PUMP CASE CX240 9040B CX240B CX240LR 9045B CX210
LJ014500 LJ014490 HYDRAULIC PUMP CASE
LJ014500 LJ014490 TR00047 TJ00765 160113A1 HYDRAULIC PUMP CASE CX240BLR CX250C CX210LR CX290 CX210N CX235C
67. LB00535 [1] COUPLING SUM
68. TB00026 [2] BEARING, ROLLER, CYL,40mm ID x 90mm OD x
69. TB00082 [2] NEEDLE BEARING,35 mm ID x 47 mm OD x 30
70. 156963A1 [4] SPACER SUM
71. TR00047 [2] PLATE SUM
72. 169288A1 [2] BUSHING SUM
73. 156960A1 [18] SPRING SUM
74. 160113A1 [2] PLATE SUM Shoe
75. TPP0080 [2] SUPPORT SUM
76. 160334A1 [1] COVER SUM
77. LJ014520 [2] HYDRAULIC PUMP SUM
78. TJ00067 [1] VALVE BLOCK SUM
79. NSS [1] NOT SOLD SEPARAT CON Cover
80. 167078A1 [8] BOLT,M8 x 40mm, Cl 12.9 SUM M8 x 40; 12,9
81. 861-8020 [4] HEX SOC SCREW,M8 x 20mm, Cl 12.9 CAS Superseded by part number: 86512138
82. 863-10020 [4] HEX SOC SCREW,M10 x 20mm, Cl 12.9 CAS
83. 155496A1 [2] PLUG SUM.84. TLM0023 [2] PLUG SUM
85. 155471A1 [4] PLUG SUM
86. LK00003 [27] PLUG SUM
87. TJ00066 [2] PISTON SUM
88. TG00286 [2] STOP LOCK SUM
![89. 160116A1 [2] STOP SUM 90. LE01176 [2] O-RING SUM Superseded by part number: 154553A1 91. LE013510 [2] O-RING SUM (used under cover on top of pump or under aux gear pump) 92. LE013500 [4] O-RING SUM 93. LE013470 [16] O-RING SUM Superseded by part number: LE022170 94. LE013410 [6] O-RING SUM 95. LE013490 [2] O-RING SUM 96. LE013440 [4] O-RING SUM 97. LE01177 [2] O-RING SUM Superseded by part number: 154489A1 98. LE01178 [1] OIL SEAL SUM Superseded by part number: LE018730 99. 153970A1 [2] BACK-UP RING SUM 100. 154017A1 [2] BACK-UP RING SUM 101. 164R016VR [2] NUT SUM 102. 829-1420 [2] NUT,M20, Cl 10 CAS Superseded by part number: 9847024 103. 800-1140 [2] SNAP RING,M40, Ext CAS Superseded by part number: 370006 104. 156954A1 [2] DOWEL SUM 105. 338W060Z014B [4] LINCH PIN SUM 106. 126R010SR [2] EYEBOLT SUM BOLT, EYE 107. LA00036 [2] SET SCREW,Hex SUM. 108. 160296A1 [2] SET SCREW SUM 109. NSS [1] NOT SOLD SEPARAT CON Name Plate 110. LA00027 [2] RIVET SUM](https://www.winsparts.com/wp-content/uploads/2024/03/LR00552-PLATE-VALVE-HYDRAULIC-PUMP-CASE-CX210B-CX210C-LC-9030B-CX210BLR-CX210C.jpg)
89. 160116A1 [2] STOP SUM
90. LE01176 [2] O-RING SUM Superseded by part number: 154553A1
91. LE013510 [2] O-RING SUM (used under cover on top of pump or under aux gear pump)
92. LE013500 [4] O-RING SUM
93. LE013470 [16] O-RING SUM Superseded by part number: LE022170
94. LE013410 [6] O-RING SUM
95. LE013490 [2] O-RING SUM
96. LE013440 [4] O-RING SUM
97. LE01177 [2] O-RING SUM Superseded by part number: 154489A1
98. LE01178 [1] OIL SEAL SUM Superseded by part number: LE018730
99. 153970A1 [2] BACK-UP RING SUM
100. 154017A1 [2] BACK-UP RING SUM
101. 164R016VR [2] NUT SUM
102. 829-1420 [2] NUT,M20, Cl 10 CAS Superseded by part number: 9847024
103. 800-1140 [2] SNAP RING,M40, Ext CAS Superseded by part number: 370006
104. 156954A1 [2] DOWEL SUM
105. 338W060Z014B [4] LINCH PIN SUM
106. 126R010SR [2] EYEBOLT SUM BOLT, EYE
107. LA00036 [2] SET SCREW,Hex SUM.
108. 160296A1 [2] SET SCREW SUM
109. NSS [1] NOT SOLD SEPARAT CON Name Plate
110. LA00027 [2] RIVET SUM
TJ00765 PISTON Case HANDOK HYDRAULIC Piston shoe
TR00047 PISTON SHOE PLATE HANDOK HYDRAULIC Case
TR00047 PLATE Case HANDOK HYDRAULIC Kawasaki Hydraulic Parts
Cylinder block Valve plate CASE 210B CS240B CX250C HANDOK HYDRAULIC Parts (3)
Excavator Engine Spare Parts
Gz wins contruction engineering company is engaged in development, production, marketing and agency services.
We are a manufacturer of specialization and diversification engineering machinery parts. Our products are selling well in America, Europe, Southeast Asia, the Middle East, Africa and other countries and regions.
We Provide Original Genuine Kobelco Parts,Include the following；
Kobelco Air-conditioning System,A/C Assembly, A/C Hose,A/C Compressor,A/C Condenser,Blower Assembly,Evaporator,A/C Pipe,A/C Receiver, A/C Filter.
Kobelco Body & Stamping Parts,CAB Assy, Engine Mounting,Engine Hood, Car Body,Door Panel,Roof.
Kobelco Hydraulics System,Set plate,Piston shoe,Cylinder block,Valve plate,Drive shaft,Ball guide,Piston pump,Gear pump.
We Provide Genuine MITSUBISHI HINO ISUZU Engine Parts.
Hino：J05E, J08E, P11C.
Mitsubishi: D04FR,4M40,6D16,6D22,6D24,6D31,6D34.
Isuzu:4HK1,4JJ1,4LE1,4LE2,4JB1,4BG1,6HK1,6WG1,6BG1,6UZ1,6BD1.
KOBELCO：SK60-III SK60-5 ,SK75-8,SK120LC-III SK120-5 ,SK130LC,SK140-8 SK140SRLC ,SK150LC,SK160,SK170,SK200-3 SK200-5 SK200LC-6E? SK200SR SK200-8,SK210LC-6E SK210LC-8, SK235SR,SK250LC-6E SK250 SK250-8,SK260-8 SK260-9,SK270,SK290LC,SK300LC-2 SK300LC-3 ,SK330LC-6E SK330,SK330LC-6E SK330-8 SK330-6,SK350-8 SK350LC SK350-9 ,SK460?SK460LC-IV SK480LC-6E SK460-8 SK480-6S ,SK485LC SK485-8 .
Kobelco Engine Assy,Engine Gasket Kits,Camshaft,Sprocket Camshaft,Tensioner,Crankshaft,Crankshaft Pulley,Crankshaft Bearing,Valve,Valve Seat,Valve Arm,Rocker Cover,Valve Spring,Valve Guide,Cylinder Head,Cylinder Liner,Cylinder Block,Washer,Piston,Piston Pin,Piston Ring,Piston Liner,Flywheel,Ring Gear of Flywheel,Timing Chain/Belt,Connecting Rod,Connecting Rod Bearing,Rocker Arm Shaft,Valve Cotter,Thrust Washer.
Injection Fueling System,Air Cleaner,Air Cleaner Cover,Exhaust Muffler,Exhaust Manifold,Exhaust Pipe,Intake Manifold,EGR Tube,Radiator,Water Hose,Fan,Thermostat,Oil Pan,Oil Level Gauge,Oil Filter.
